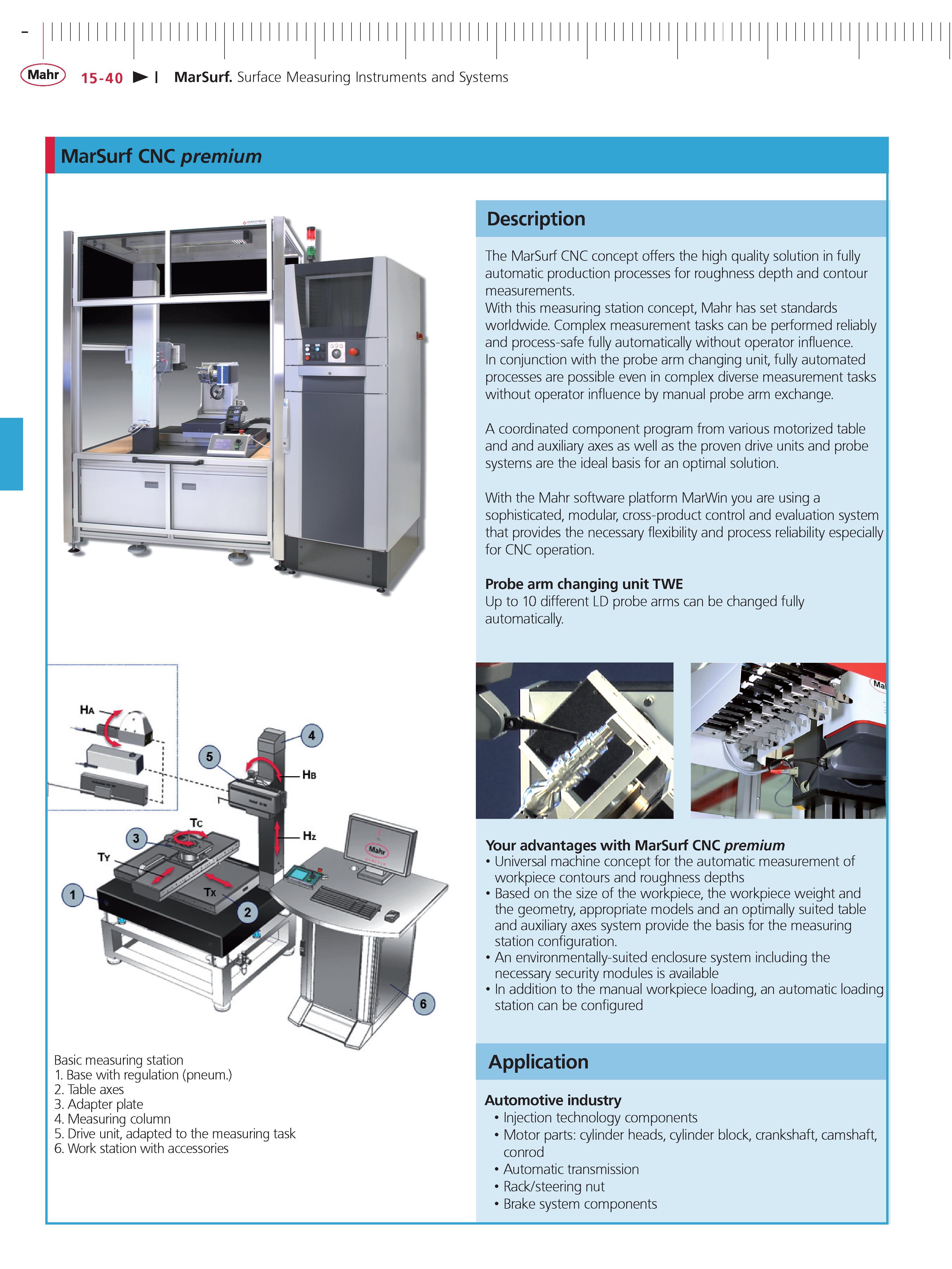

Mahr 15-40 MarSurf Surface Measuring Instruments and Systems MarSurf CNC premium Basic measuring station 1. Base with regulation (pneum.) 2. Table axes 3. Adapter plate 4. Measuring column 5. Drive unit adapted to the measuring task 6. Work station with accessories Description The MarSurf CNC concept offers the high quality solution in fully automatic production processes for roughness depth and contour measurements. With this measuring station concept Mahr has set standards worldwide. Complex measurement tasks can be performed reliably and process-safe fully automatically without operator influence. In conjunction with the probe arm changing unit fully automated processes are possible even in complex diverse measurement tasks without operator influence by manual probe arm exchange. A coordinated component program from various motorized table and and auxiliary axes as well as the proven drive units and probe systems are the ideal basis for an optimal solution. With the Mahr software platform MarWin you are using a sophisticated modular cross-product control and evaluation system that provides the necessary flexibility and process reliability especially for CNC operation. Probe arm changing unit TWE Up to 10 different LD probe arms can be changed fully automatically. Your advantages with MarSurf CNC premium Universal machine concept for the automatic measurement of workpiece contours and roughness depths Based on the size of the workpiece the workpiece weight and the geometry appropriate models and an optimally suited table and auxiliary axes system provide the basis for the measuring station configuration. An environmentally-suited enclosure system including the necessary security modules is available In addition to the manual workpiece loading an automatic loading station can be configured Application Automotive industry Injection technology components Motor parts cylinder heads cylinder block crankshaft camshaft conrod Automatic transmission Rack steering nut Brake system components
