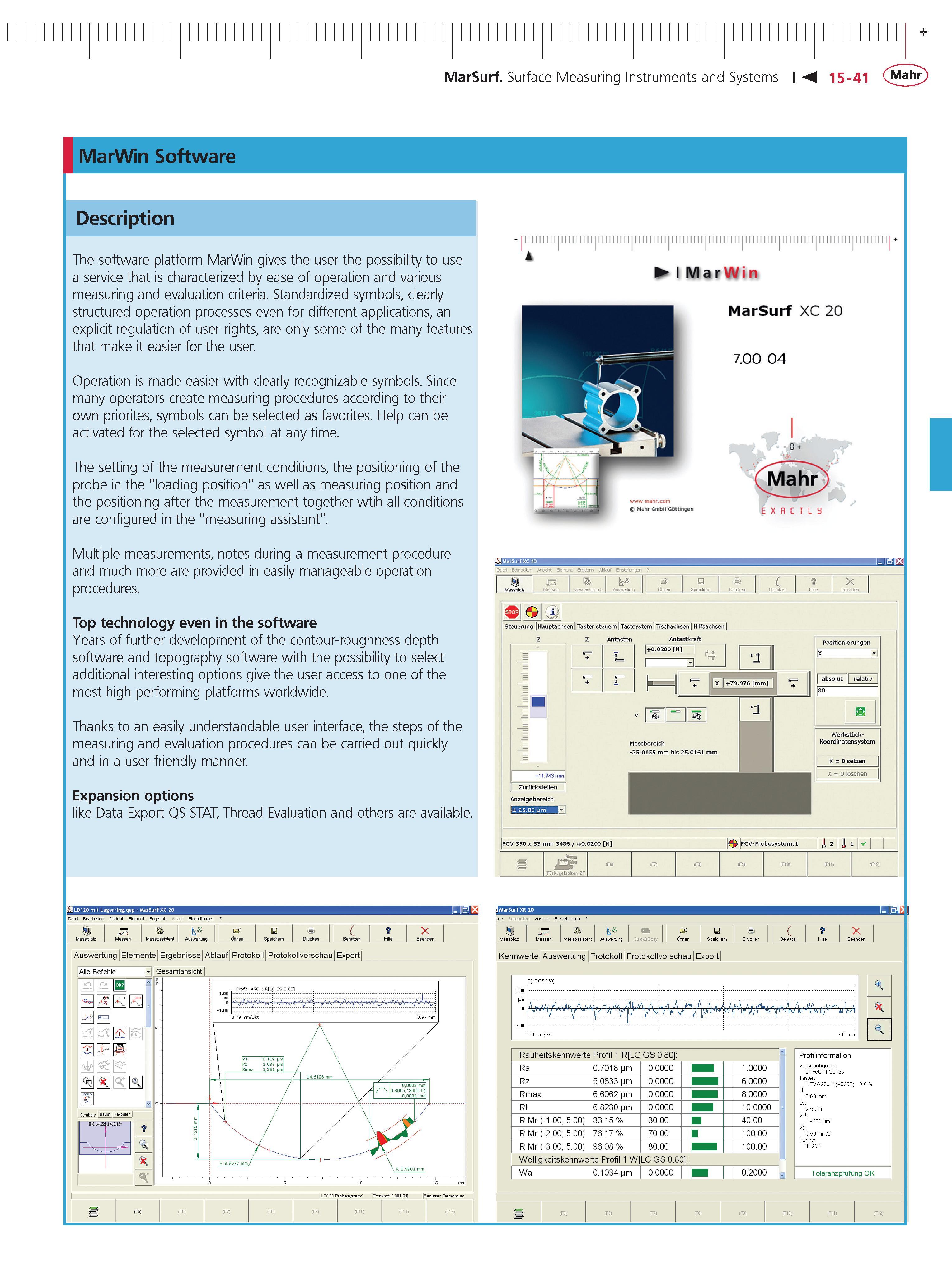

MarSurf Surface Measuring Instruments and Systems M 15-41 Mahr MarWin Software Description The software platform MarWin gives the user the possibility to use a service that is characterized by ease of operation and various measuring and evaluation criteria. Standardized symbols clearly structured operation processes even for different applications an explicit regulation of user rights are only some of the many features that make it easier for the user. Operation is made easier with clearly recognizable symbols. Since many operators create measuring procedures according to their own priorites symbols can be selected as favorites. Help can be activated for the selected symbol at any time. The setting of the measurement conditions the positioning of the probe in the "loading position" as well as measuring position and the positioning after the measurement together wtih all conditions are configured in the "measuring assistant. Multiple measurements notes during a measurement procedure and much more are provided in easily manageable operation procedures. Top technology even in the software Years of further development of the contour-roughness depth software and topography software with the possibility to select additional interesting options give the user access to one of the most high performing platforms worldwide. Thanks to an easily understandable user interface the steps of the measuring and evaluation procedures can be carried out quickly and in a user-friendly manner. Expansion options like Data Export QS STAT Thread Evaluation and others are available.
