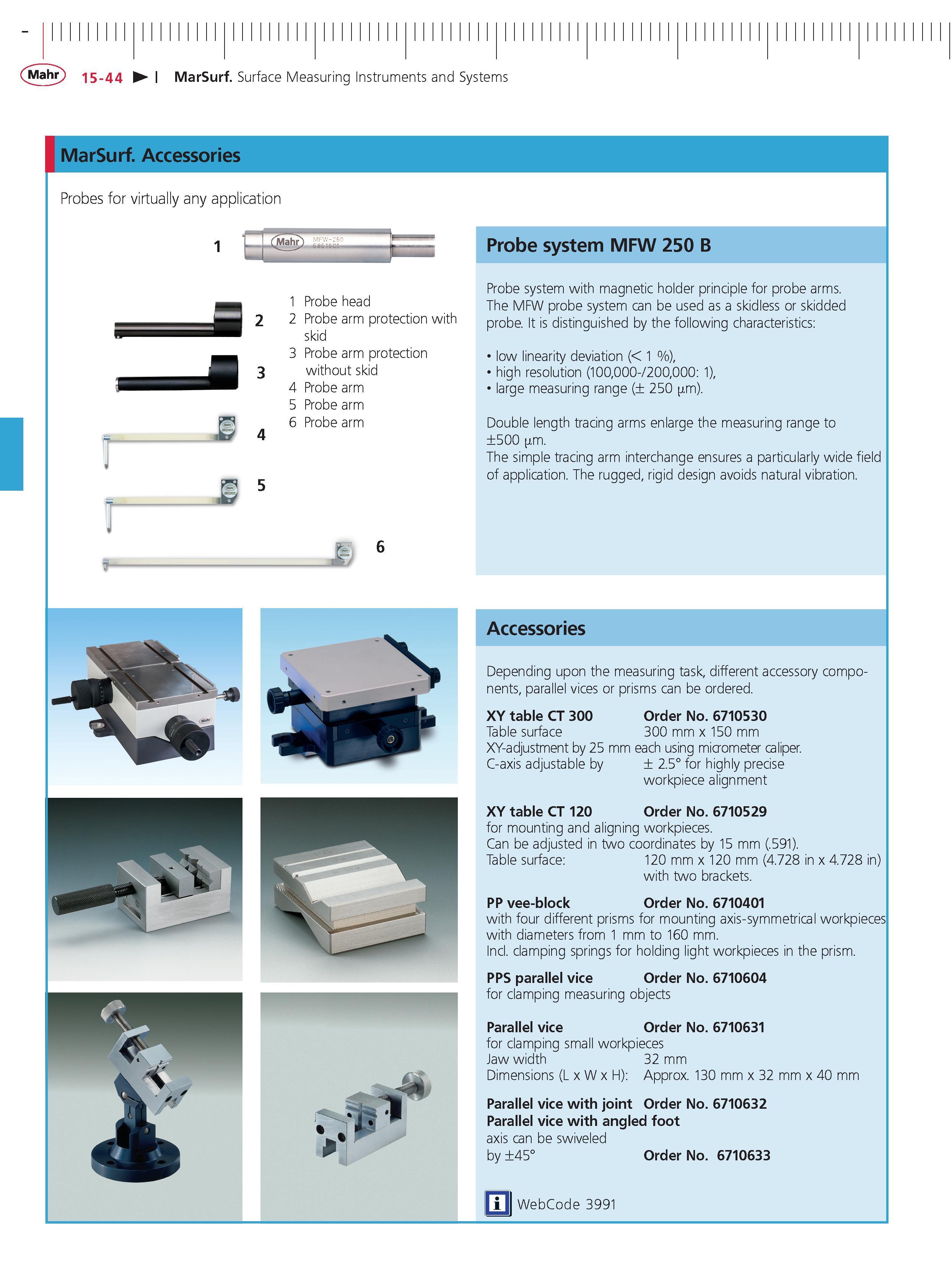

Mahr 15.44 MarSurf Surface Measuring Instruments and Systems MarSurf Accessories Probe system MFW 250 B Probe system with magnetic holder principle for probe arms. The MFW probe system can be used as a skidless or skidded probe. It is distinguished by the following characteristics low linearity deviation ( 1 %) high resolution (100000- 200000 1) large measuring range ( 250 m). Double length tracing arms enlarge the measuring range to 500 m. The simple tracing arm interchange ensures a particularly wide field of application. The rugged rigid design avoids natural vibration. Accessories Depending upon the measuring task different accessory components parallel vices or prisms can be ordered. XY table CT 300 Order No. 6710530 Table surface 300 mm x 150 mm XY-adjustment by 25 mm each using micrometer caliper. C-axis adjustable by 2.5 for highly precise workpiece alignment XY table CT 120 Order No. 6710529 for mounting and aligning workpieces. Can be adjusted in two coordinates by 15 mm (.591). Table surface 120 mm x 120 mm (4.728 in x 4.728 in) with two brackets. PP vee-block Order No. 6710401 with four different prisms for mounting axis-symmetrical workpieces with diameters from 1 mm to 160 mm. Incl. clamping springs for holding light workpieces in the prism. PPS parallel vice Order No. 6710604 for clamping measuring objects Parallel vice Order No. 6710631 for clamping small workpieces Jaw width 32 mm Dimensions (L x W x H) Approx. 130 mm x 32 mm x 40 mm Parallel vice with joint Order No. 6710632 Parallel vice with angled foot axis can be swiveled by 45 Order No. 6710633 mi WebCode 3991
