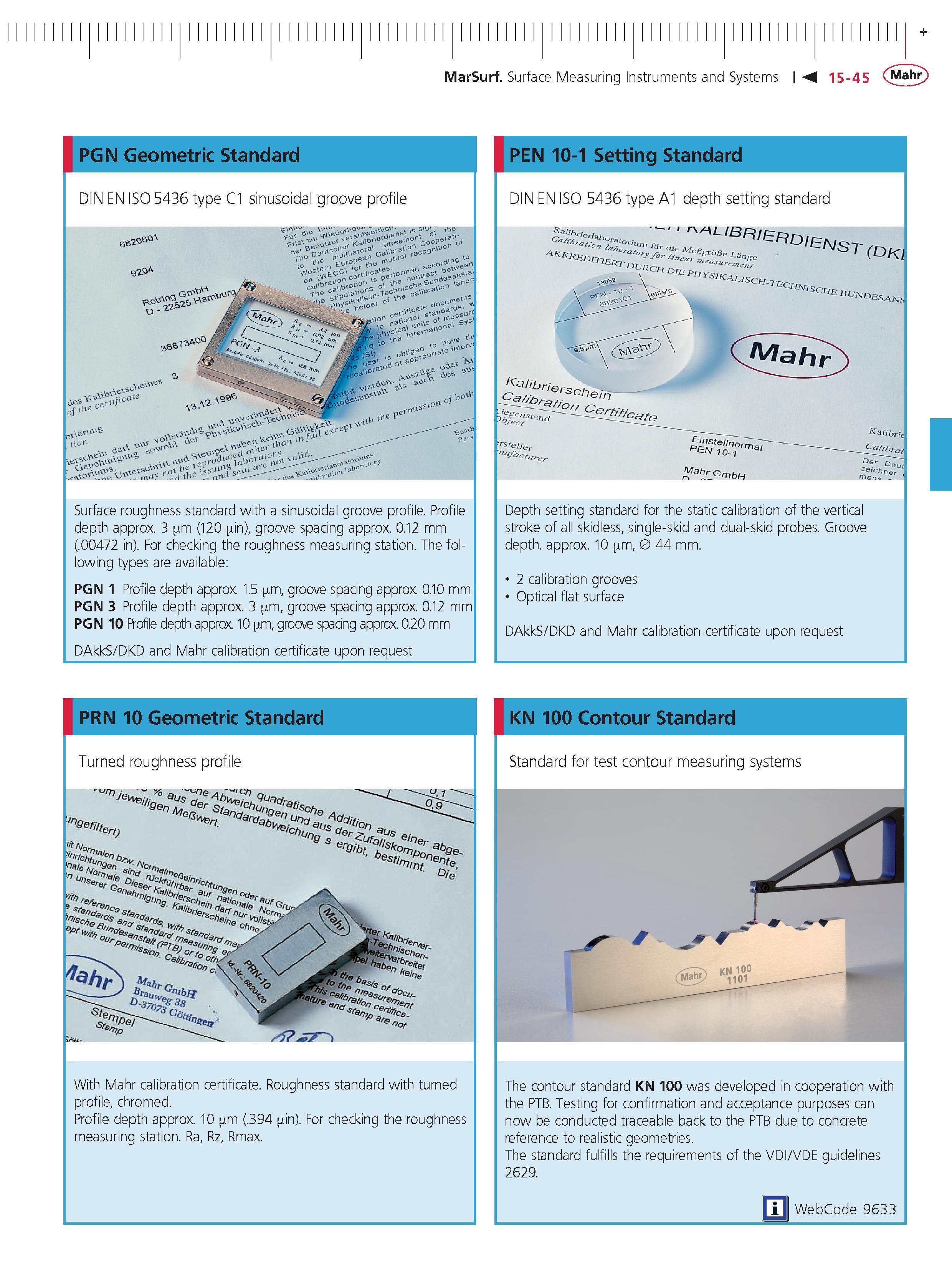

MarSurf Surface Measuring Instruments and Systems 15-45 Mahr PGN Geometric Standard PEN 10-1 Setting Standard DIN EN ISO 5436 type C1 sinusoidal groove profile DIN EN ISO 5436 type A1 depth setting standard -r M svs oTX400 :- SrjJ Jiffi' ' o'-ne a" JP 111 s ti0n A.tfS"' 1 Wl'0e'lc tl'a 5Sf J0ZT -S ficate Kajj br-c ZZ7 -sfli rGrnhH Surface roughness standard with a sinusoidal groove profile. Profile depth approx. 3 pm (120 pin) groove spacing approx. 0.12 mm (.00472 in). For checking the roughness measuring station. The following types are available PGN 1 Profile depth approx. 1.5 pm groove spacing approx. 0.10 mm PGN 3 Profile depth approx. 3 pm groove spacing approx. 0.12 mm PGN 10 Profile depth approx. 10 pm groove spacing approx. 0.20 mm DAkkS DKD and Mahr calibration certificate upon request Depth setting standard for the static calibration of the vertical stroke of all skidless single-skid and dual-skid probes. Groove depth. approx. 10 pm 0 44 mm. 2 calibration grooves Optical flat surface DAkkS DKD and Mahr calibration certificate upon request PRN 10 Geometric Standard KN 100 Contour Standard Turned roughness profile Standard for test contour measuring systems " r eOfes rhht TTTx mtrai' sS an. x% " tax -i + - I. With Mahr calibration certificate. Roughness standard with turned profile chromed. Profile depth approx. 10 pm (.394 pin). For checking the roughness measuring station. Ra Rz Rmax. The contour standard KN 100 was developed in cooperation with the PTB. Testing for confirmation and acceptance purposes can now be conducted traceable back to the PTB due to concrete reference to realistic geometries. The standard fulfills the requirements of the VDI VDE guidelines 2629. i j WebCode 9633
