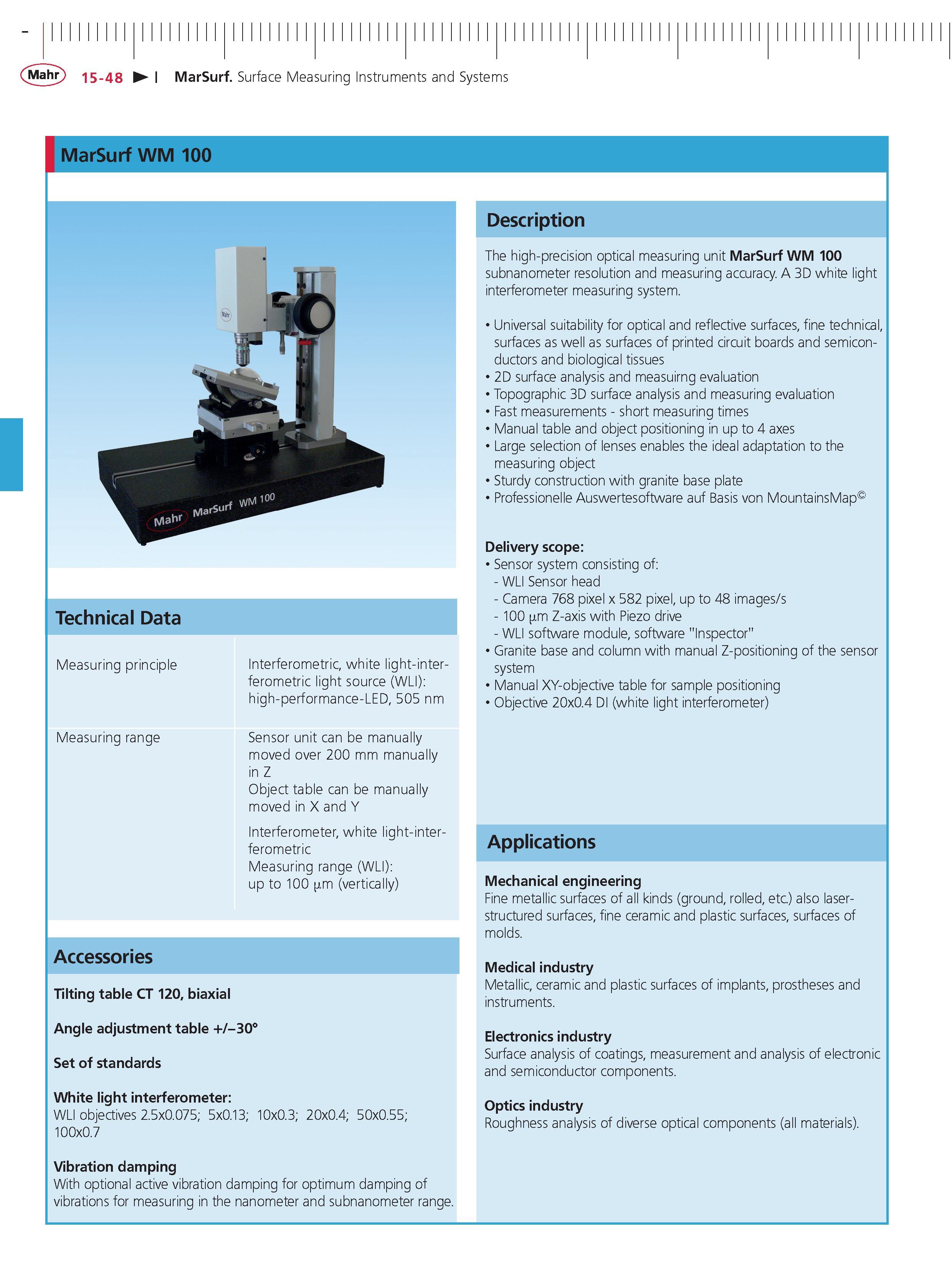

Mahr 15-48 MarSurf Surface Measuring Instruments and Systems MarSurf WM 100 Accessories Technical Data Measuring principle Interferometric white light-inter-ferometric light source (WLI) high-performance-LED 505 nm Measuring range Sensor unit can be manually moved over 200 mm manually in Z Object table can be manually moved in X and Y Interferometer white light-inter-ferometric Measuring range (WLI) up to 100 m (vertically) Tilting table CT 120 biaxial Angle adjustment table + -30 Set of standards White light interferometer WLI objectives 2.5x0.075; 5x0.13; 10x0.3; 20x0.4; 50x0.55; 100x0.7 Vibration damping With optional active vibration damping for optimum damping of vibrations for measuring in the nanometer and subnanometer range. Description The high-precision optical measuring unit MarSurf WM 100 subnanometer resolution and measuring accuracy. A 3D white light interferometer measuring system. Universal suitability for optical and reflective surfaces fine technical surfaces as well as surfaces of printed circuit boards and semiconductors and biological tissues 2D surface analysis and measuirng evaluation Topographic 3D surface analysis and measuring evaluation Fast measurements - short measuring times Manual table and object positioning in up to 4 axes Large selection of lenses enables the ideal adaptation to the measuring object Sturdy construction with granite base plate Professionelle Auswertesoftware auf Basis von MountainsMap Delivery scope Sensor system consisting of - WLI Sensor head - Camera 768 pixel x 582 pixel up to 48 images s - 100 m Z-axis with Piezo drive - WLI software module software "Inspector" Granite base and column with manual Z-positioning of the sensor system Manual XY-objective table for sample positioning Objective 20x0.4 DI (white light interferometer) Applications Mechanical engineering Fine metallic surfaces of all kinds (ground rolled etc.) also laser-structured surfaces fine ceramic and plastic surfaces surfaces of molds. Medical industry Metallic ceramic and plastic surfaces of implants prostheses and instruments. Electronics industry Surface analysis of coatings measurement and analysis of electronic and semiconductor components. Optics industry Roughness analysis of diverse optical components (all materials).
