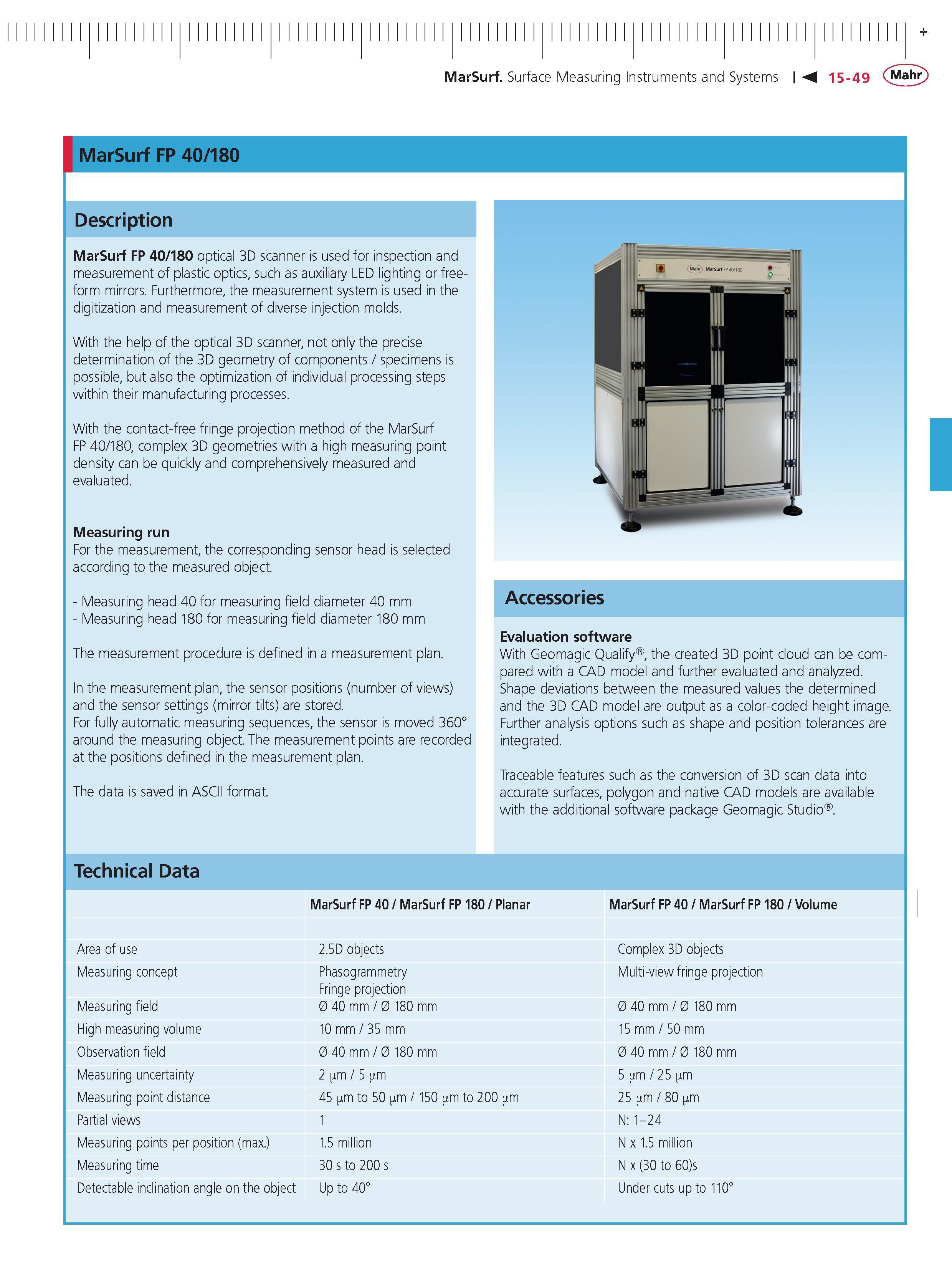

MarSurf Surface Measuring Instruments and Systems 15-49 Mahr MarSurf FP 40 180 Description MarSurf FP 40 180 optical 3D scanner is used for inspection and measurement of plastic optics such as auxiliary LED lighting or free form mirrors. Furthermore the measurement system is used in the digitization and measurement of diverse injection molds. With the help of the optical 3D scanner not only the precise determination of the 3D geometry of components specimens is possible but also the optimization of individual processing steps within their manufacturing processes. With the contact-free fringe projection method of the MarSurf FP 40 180 complex 3D geometries with a high measuring point density can be quickly and comprehensively measured and evaluated. Measuring run For the measurement the corresponding sensor head is selected according to the measured object. - Measuring head 40 for measuring field diameter 40 mm - Measuring head 180 for measuring field diameter 180 mm The measurement procedure is defined in a measurement plan. In the measurement plan the sensor positions (number of views) and the sensor settings (mirror tilts) are stored. For fully automatic measuring sequences the sensor is moved 360 Further analysis options such as shape and position tolerances are around the measuring object. The measurement points are recorded integrated. at the positions defined in the measurement plan. Traceable features such as the conversion of 3D scan data into The data is saved in ASCII format. accurate surfaces polygon and native CAD models are available with the additional software package Geomagic Studio . Technical Data MarSurf FP 40 MarSurf FP 180 Planar MarSurf FP 40 MarSurf FP 180 Volume Area of use 2.5D objects Complex 3D objects Measuring concept Phasogrammetry Multi-view fringe projection Fringe projection Measuring field 0 40 mm 0 180 mm 0 40 mm 0 180 mm High measuring volume 10 mm 35 mm 15 mm 50 mm Observation field 0 40 mm 0 180 mm 0 40 mm 0 180 mm Measuring uncertainty 2 m 5 m 5 m 25 m Measuring point distance 45 m to 50 m 150 m to 200 m 25 m 80 m Partial views 1 N 1-24 Measuring points per position (max.) 1.5 million N x 1.5 million Measuring time 30 s to 200 s N x (30 to 60)s Detectable inclination angle on the object Up to 40 Under cuts up to 110 Accessories Evaluation software With Geomagic Qualify the created 3D point cloud can be compared with a CAD model and further evaluated and analyzed. Shape deviations between the measured values the determined and the 3D CAD model are output as a color-coded height image.
