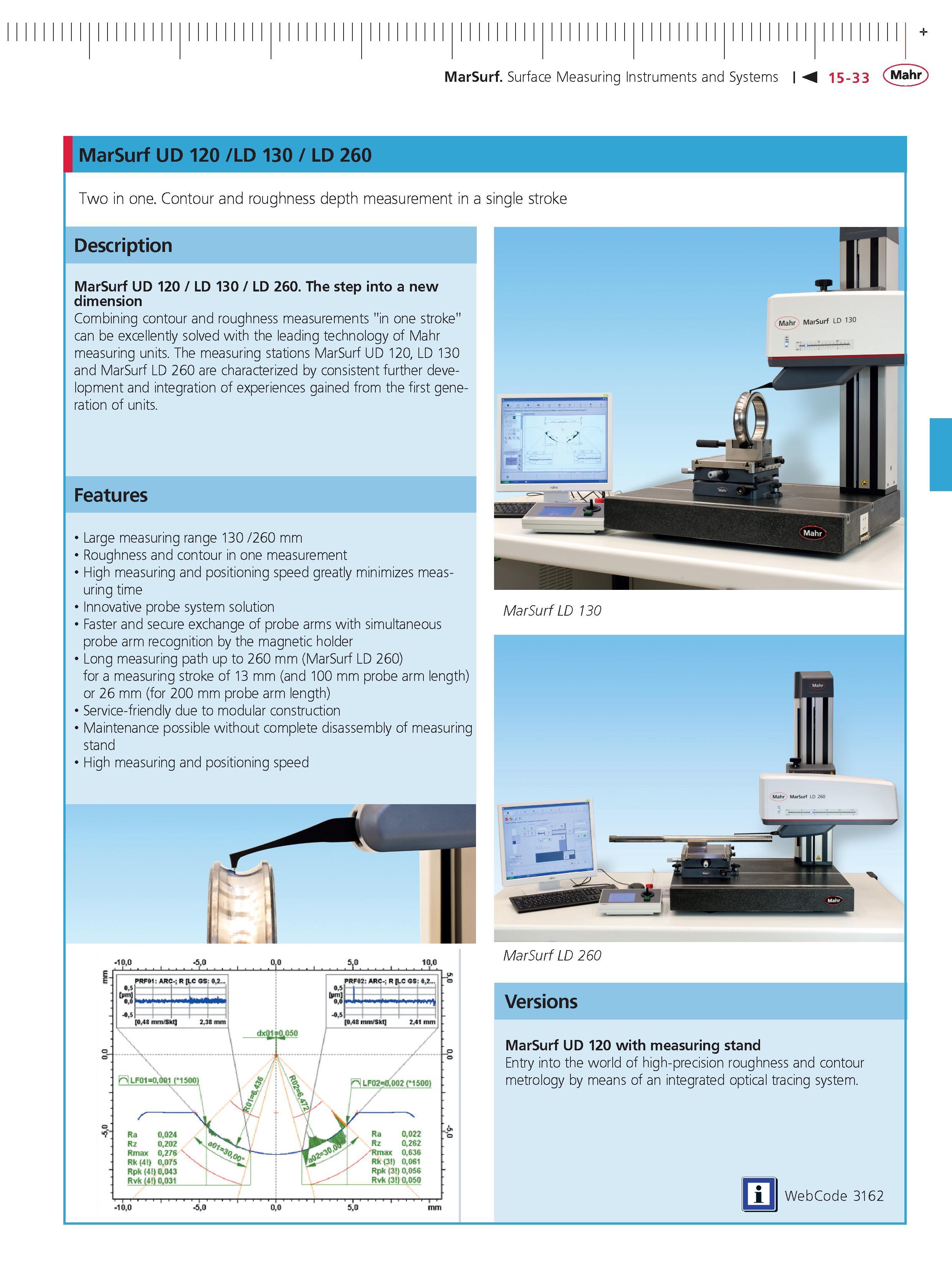

MarSurf Surface Measuring Instruments and Systems 15-33 Mahr MarSurf UD 120 LD 130 LD 260 Two in one. Contour and roughness depth measurement in a single stroke Description MarSurf UD 120 LD 130 LD 260. The step into a new dimension Combining contour and roughness measurements "in one stroke" can be excellently solved with the leading technology of Mahr measuring units. The measuring stations MarSurf UD 120 LD 130 and MarSurf LD 260 are characterized by consistent further development and integration of experiences gained from the first generation of units. Features Large measuring range 130 260 mm Roughness and contour in one measurement High measuring and positioning speed greatly minimizes measuring time Innovative probe system solution Faster and secure exchange of probe arms with simultaneous probe arm recognition by the magnetic holder Long measuring path up to 260 mm (MarSurf LD 260) for a measuring stroke of 13 mm (and 100 mm probe arm length) or 26 mm (for 200 mm probe arm length) Service-friendly due to modular construction Maintenance possible without complete disassembly of measuring stand High measuring and positioning speed MarSurf LD 260 Versions MarSurf UD 120 with measuring stand Entry into the world of high-precision roughness and contour metrology by means of an integrated optical tracing system. WebCode 3162
