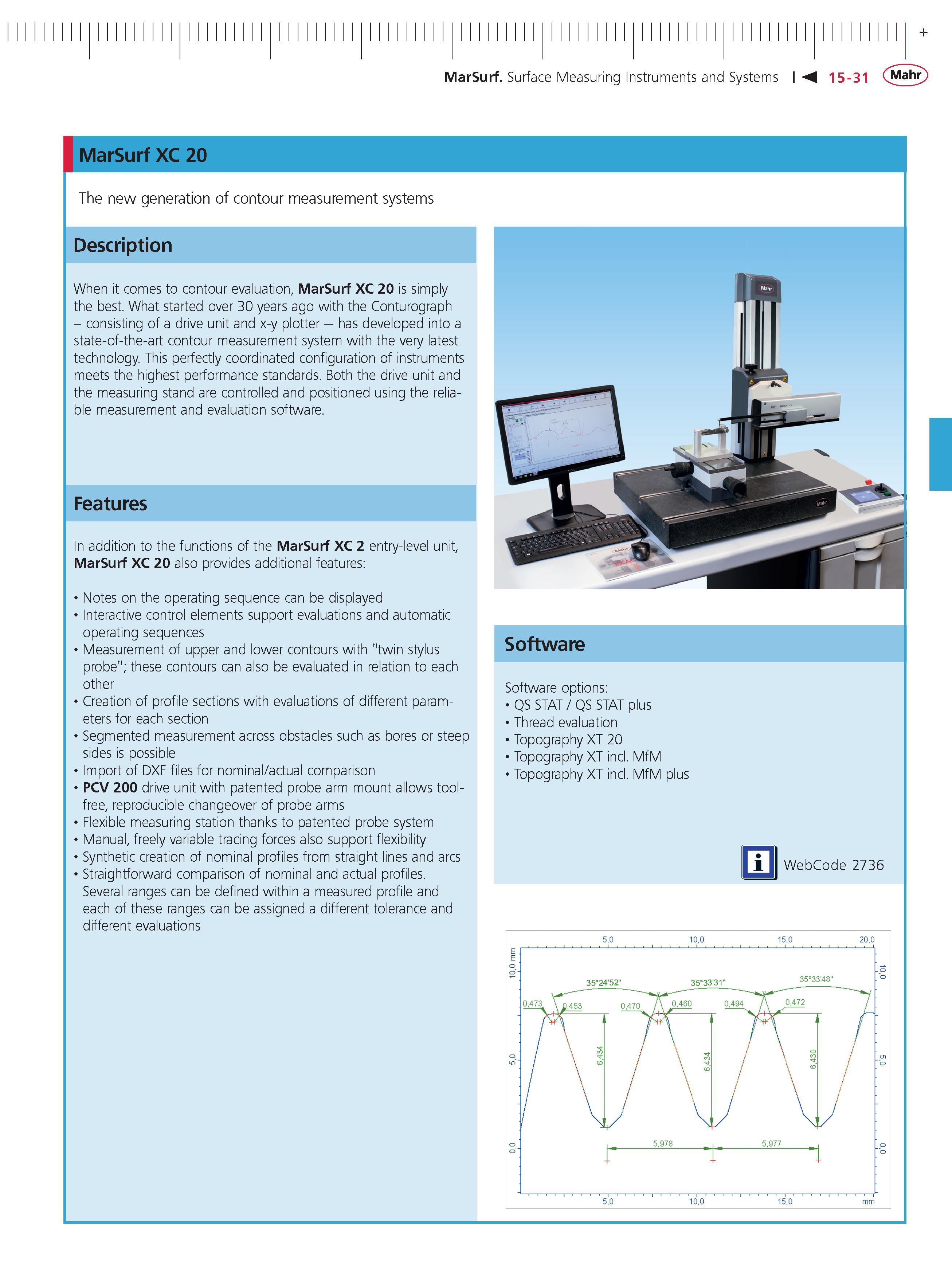

MarSurf Surface Measuring Instruments and Systems 15-31 Mahr MarSurf XC 20 The new generation of contour measurement systems Description When it comes to contour evaluation MarSurf XC 20 is simply the best. What started over 30 years ago with the Conturograph - consisting of a drive unit and x-y plotter has developed into a state-of-the-art contour measurement system with the very latest technology. This perfectly coordinated configuration of instruments meets the highest performance standards. Both the drive unit and the measuring stand are controlled and positioned using the reliable measurement and evaluation software. Features In addition to the functions of the MarSurf XC 2 entry-level unit MarSurf XC 20 also provides additional features Notes on the operating sequence can be displayed Interactive control elements support evaluations and automatic operating sequences Measurement of upper and lower contours with "twin stylus probe"; these contours can also be evaluated in relation to each other Creation of profile sections with evaluations of different parameters for each section Segmented measurement across obstacles such as bores or steep sides is possible Import of DXF files for nominal actual comparison PCV 200 drive unit with patented probe arm mount allows tool-free reproducible changeover of probe arms Flexible measuring station thanks to patented probe system Manual freely variable tracing forces also support flexibility Synthetic creation of nominal profiles from straight lines and arcs Straightforward comparison of nominal and actual profiles. Several ranges can be defined within a measured profile and each of these ranges can be assigned a different tolerance and different evaluations Software Software options QS STAT QS STAT plus Thread evaluation Topography XT 20 Topography XT incl. MfM Topography XT incl. MfM plus m WebCode 2736
