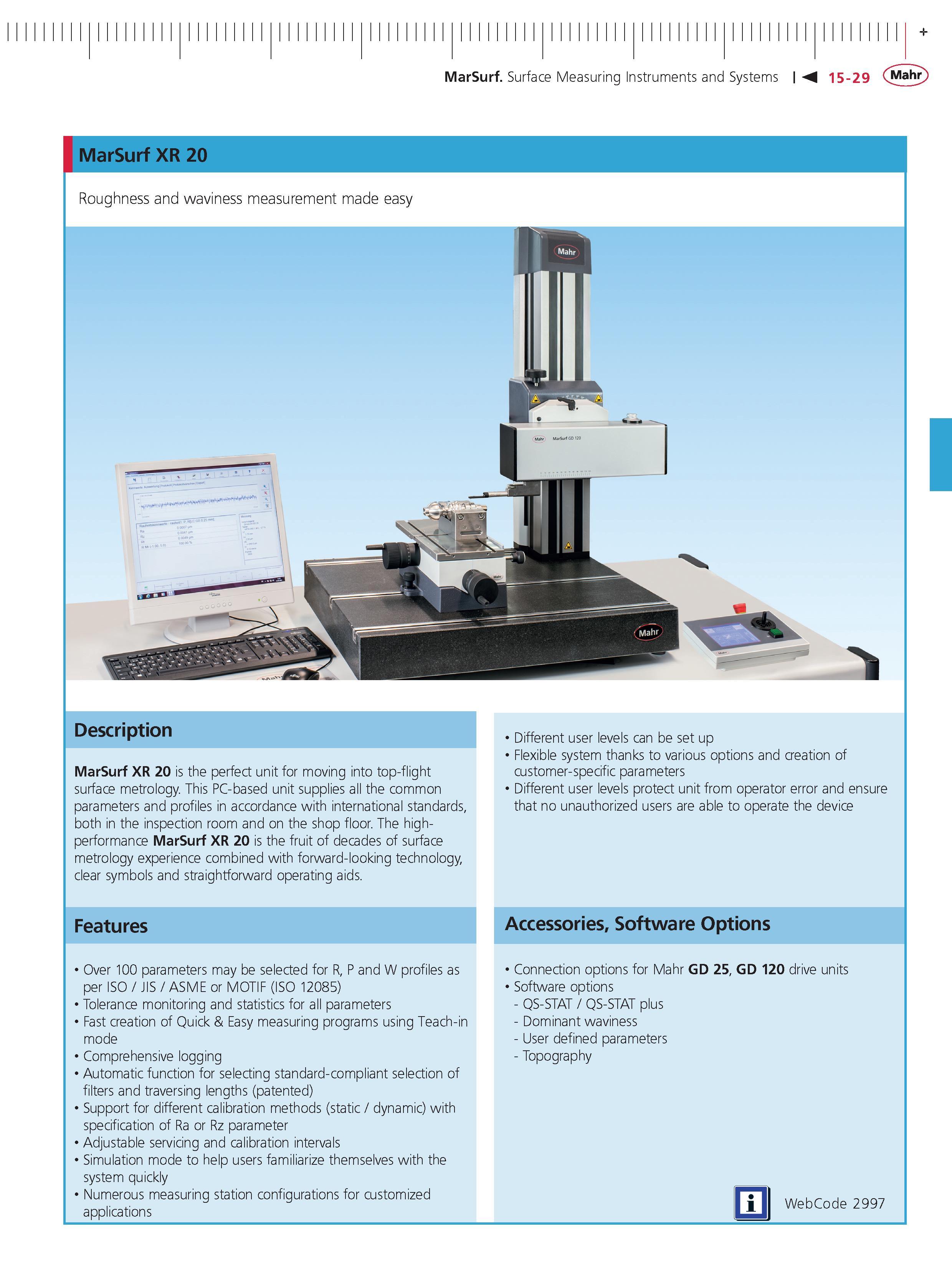

MarSurf Surface Measuring Instruments and Systems 15-29 Mahr Description MarSurf XR 20 is the perfect unit for moving into top-flight surface metrology. This PC-based unit supplies all the common parameters and profiles in accordance with international standards both in the inspection room and on the shop floor. The high-performance MarSurf XR 20 is the fruit of decades of surface metrology experience combined with forward-looking technology clear symbols and straightforward operating aids. Different user levels can be set up Flexible system thanks to various options and creation of customer-specific parameters Different user levels protect unit from operator error and ensure that no unauthorized users are able to operate the device Features Over 100 parameters may be selected for R P and W profiles as per ISO JIS ASME or MOTIF (ISO 12085) Tolerance monitoring and statistics for all parameters Fast creation of Quick & Easy measuring programs using Teach-in mode Comprehensive logging Automatic function for selecting standard-compliant selection of filters and traversing lengths (patented) Support for different calibration methods (static dynamic) with specification of Ra or Rz parameter Adjustable servicing and calibration intervals Simulation mode to help users familiarize themselves with the system quickly Numerous measuring station configurations for customized applications Accessories Software Options Connection options for Mahr GD 25 GD 120 drive units Software options - QS-STAT QS-STAT plus - Dominant waviness - User defined parameters - Topography mi WebCode 2997
