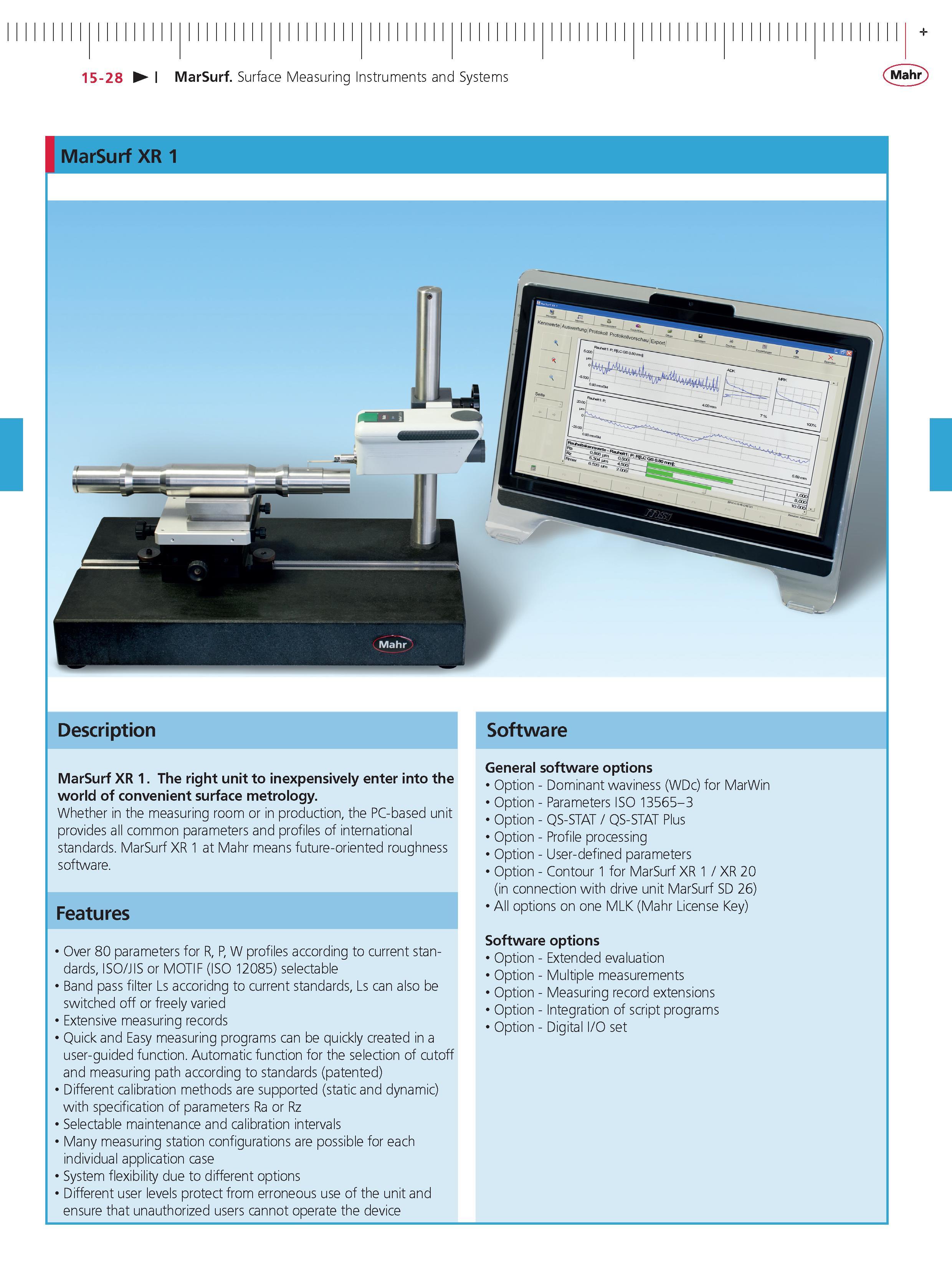

15-28 MarSurf Surface Measuring Instruments and Systems (jWahr) MarSurf XR 1 Description MarSurf XR 1. The right unit to inexpensively enter into the world of convenient surface metrology. Whether in the measuring room or in production the PC-based unit provides all common parameters and profiles of international standards. MarSurf XR 1 at Mahr means future-oriented roughness software. Features Over 80 parameters for R P W profiles according to current standards ISO JIS or MOTIF (ISO 12085) selectable Band pass filter Ls accoridng to current standards Ls can also be switched off or freely varied Extensive measuring records Quick and Easy measuring programs can be quickly created in a user-guided function. Automatic function for the selection of cutoff and measuring path according to standards (patented) Different calibration methods are supported (static and dynamic) with specification of parameters Ra or Rz Selectable maintenance and calibration intervals Many measuring station configurations are possible for each individual application case System flexibility due to different options Different user levels protect from erroneous use of the unit and ensure that unauthorized users cannot operate the device Software General software options Option - Dominant waviness (WDc) for MarWin Option - Parameters ISO 13565-3 Option - QS-STAT QS-STAT Plus Option - Profile processing Option - User-defined parameters Option - Contour 1 for MarSurf XR 1 XR 20 (in connection with drive unit MarSurf SD 26) All options on one MLK Mahr License Key) Software options Option - Extended evaluation Option - Multiple measurements Option - Measuring record extensions Option - Integration of script programs Option - Digital O set
