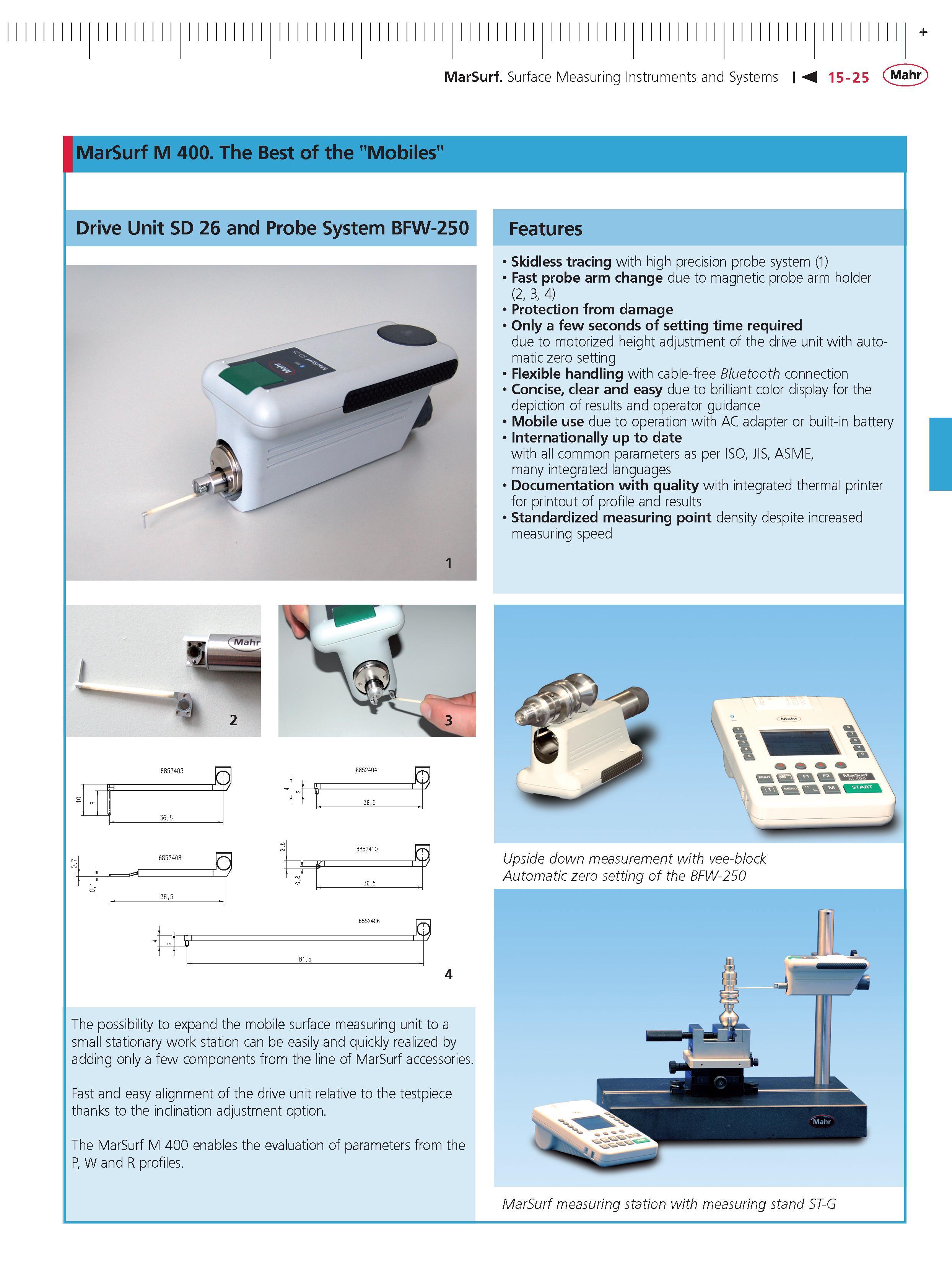

MarSurf Surface Measuring Instruments and Systems M 15-25 Mahr MarSurf M 400. The Best of the "Mobiles" Drive Unit SD 26 and Probe System BFW-250 Features Skidless tracing with high precision probe system (1) Fast probe arm change due to magnetic probe arm holder (2 3 4) Protection from damage Only a few seconds of setting time required due to motorized height adjustment of the drive unit with automatic zero setting Flexible handling with cable-free Bluetooth connection Concise clear and easy due to brilliant color display for the depiction of results and operator guidance Mobile use due to operation with AC adapter or built-in battery Internationally up to date with all common parameters as per ISO JIS ASME many integrated languages Documentation with quality with integrated thermal printer for printout of profile and results Standardized measuring point density despite increased measuring speed " 365 365 6852406 F- 815 Upside down measurement with vee-block Automatic zero setting of the BFW-250 The possibility to expand the mobile surface measuring unit to a small stationary work station can be easily and quickly realized by adding only a few components from the line of MarSurf accessories. Fast and easy alignment of the drive unit relative to the testpiece thanks to the inclination adjustment option. The MarSurf M 400 enables the evaluation of parameters from the P W and R profiles. MarSurf measuring station with measuring stand ST-G 1 4
