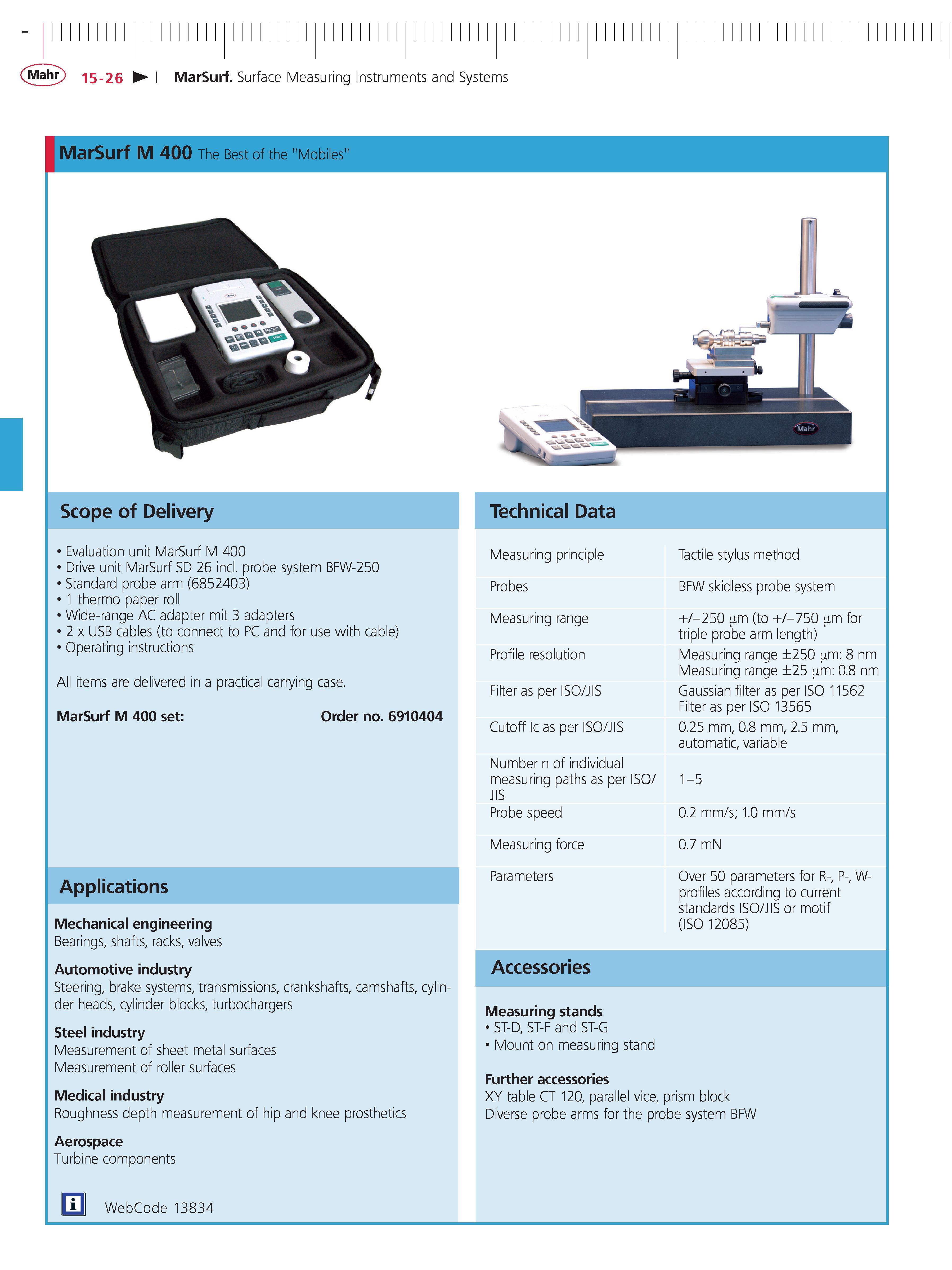

Mahr 15-26 MarSurf Surface Measuring Instruments and Systems MarSurf M 400 The Best of the "Mobiles" Scope of Delivery Evaluation unit MarSurf M 400 Drive unit MarSurf SD 26 incl. probe system BFW-250 Standard probe arm (6852403) 1 thermo paper roll Wide-range AC adapter mit 3 adapters 2 x USB cables (to connect to PC and for use with cable) Operating instructions All items are delivered in a practical carrying case. MarSurf M 400 set Order no. 6910404 Applications Mechanical engineering Bearings shafts racks valves Automotive industry Steering brake systems transmissions crankshafts camshafts cylinder heads cylinder blocks turbochargers Steel industry Measurement of sheet metal surfaces Measurement of roller surfaces Medical industry Roughness depth measurement of hip and knee prosthetics Aerospace Turbine components WebCode 13834 Technical Data Measuring principle Tactile stylus method Probes BFW skidless probe system Measuring range Profile resolution Filter as per ISO JIS + -250 m (to + -750 m for triple probe arm length) Measuring range 250 m 8 nm Measuring range 25 m 0.8 nm Gaussian filter as per ISO 11562 Filter as per ISO 13565 Cutoff Ic as per ISO JIS 0.25 mm 0.8 mm 2.5 mm automatic variable Number n of individual measuring paths as per ISO JIS Probe speed 1-5 0.2 mm s; 1.0 mm s Measuring force 0.7 mN Parameters Over 50 parameters for R- P- W-profiles according to current standards ISO JIS or motif (ISO 12085) Accessories Measuring stands ST-D ST-F and ST-G Mount on measuring stand Further accessories XY table CT 120 parallel vice prism block Diverse probe arms for the probe system BFW
