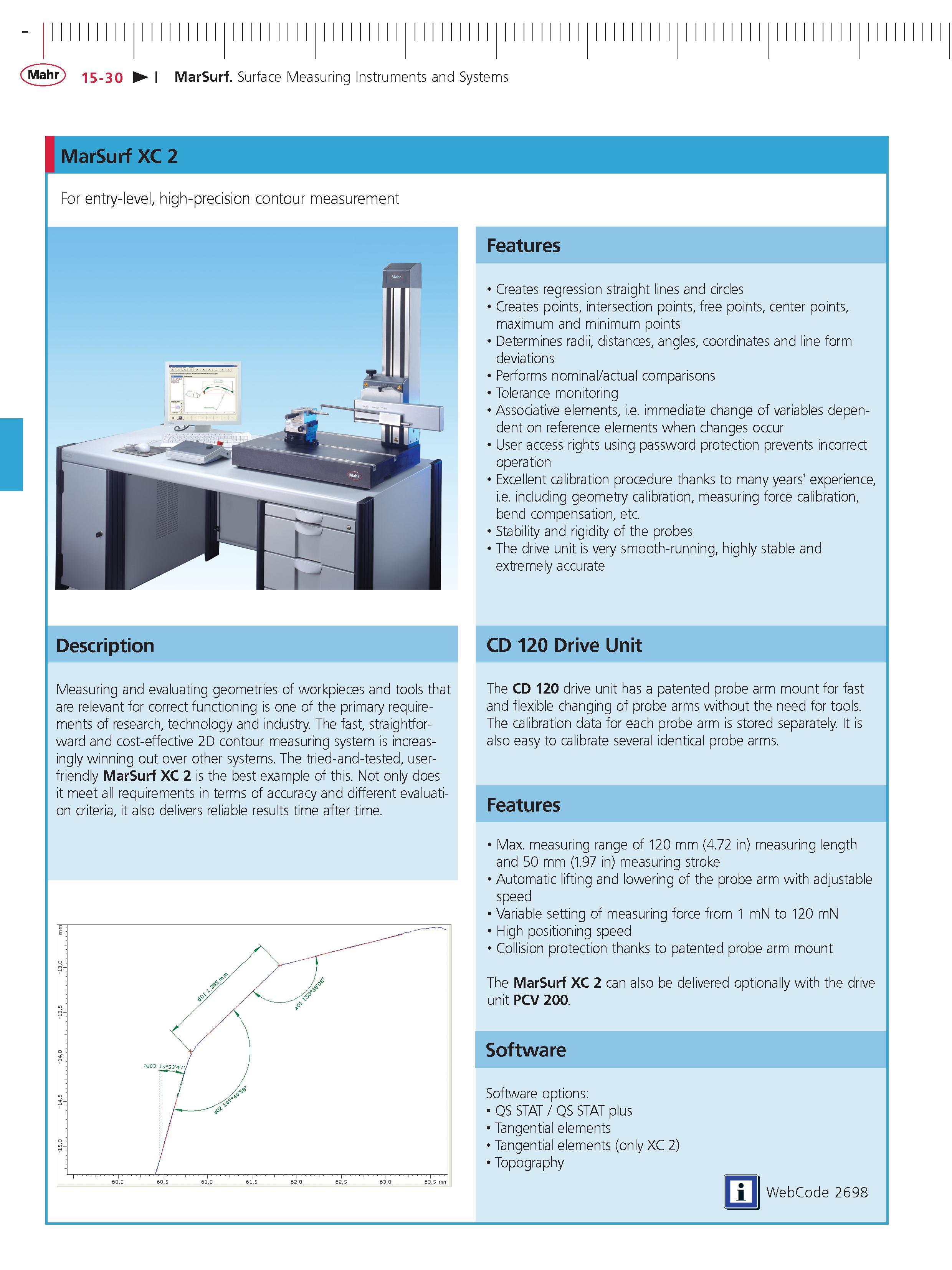

Mahr 15-30 MarSurf Surface Measuring Instruments and Systems MarSurf XC 2 For entry-level high-precision contour measurement Features Creates regression straight lines and circles Creates points intersection points free points center points maximum and minimum points Determines radii distances angles coordinates and line form deviations Performs nominal actual comparisons Tolerance monitoring Associative elements i.e. immediate change of variables dependent on reference elements when changes occur User access rights using password protection prevents incorrect operation Excellent calibration procedure thanks to many years' experience i.e. including geometry calibration measuring force calibration bend compensation etc. Stability and rigidity of the probes The drive unit is very smooth-running highly stable and extremely accurate Description CD 120 Drive Unit Measuring and evaluating geometries of workpieces and tools that are relevant for correct functioning is one of the primary requirements of research technology and industry. The fast straightforward and cost-effective 2D contour measuring system is increasingly winning out over other systems. The tried-and-tested user-friendly MarSurf XC 2 is the best example of this. Not only does it meet all requirements in terms of accuracy and different evaluation criteria it also delivers reliable results time after time. The CD 120 drive unit has a patented probe arm mount for fast and flexible changing of probe arms without the need for tools. The calibration data for each probe arm is stored separately. It is also easy to calibrate several identical probe arms. Features Max. measuring range of 120 mm (4.72 in) measuring length and 50 mm (1.97 in) measuring stroke Automatic lifting and lowering of the probe arm with adjustable speed Variable setting of measuring force from 1 mN to 120 mN High positioning speed Collision protection thanks to patented probe arm mount The MarSurf XC 2 can also be delivered optionally with the drive unit PCV 200. Software Software options QS STAT QS STAT plus Tangential elements Tangential elements (only XC 2) Topography m WebCode 2698
