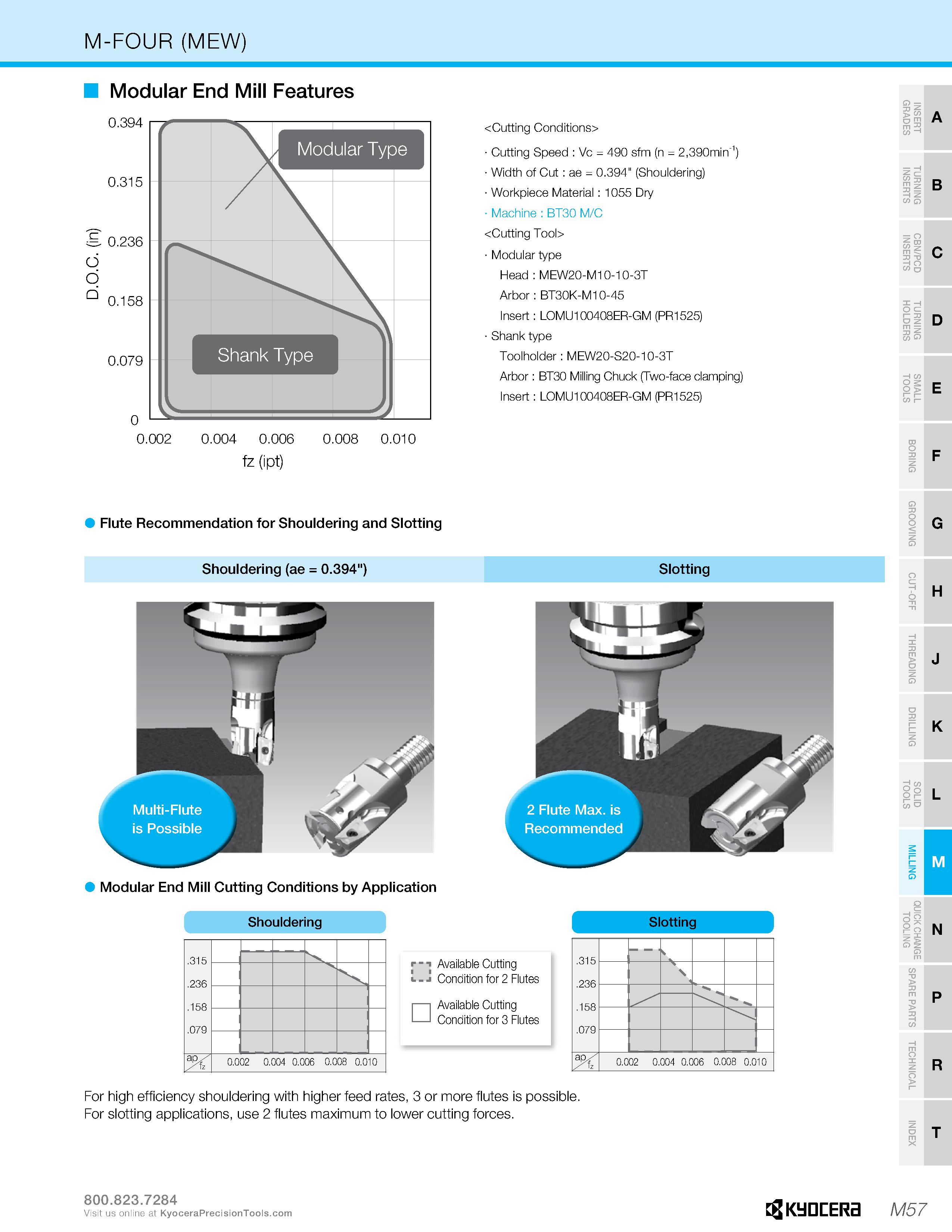

M-FOUR (MEW) Modular End Mill Features d Cutting Conditions> Cutting Speed : Vc = 490 sfm (n = 2,390min 1) Width of Cut: ae = 0.394" (Shouldering) Workpiece Material : 1055 Dry Machine : BT30 M/C Cutting Tool> Modular type Head : MEW20-M10-10-3T Arbor: BT30K-M10-45 Insert: LOMU100408ER-GM (PR1525) Shank type Toolholder: MEW20-S20-10-3T Arbor: BT30 Milling Chuck (Two-face clamping) Insert: LOMU100408ER-GM (PR1525) fz (ipt) o > £ m 2 c/> “ V) Q T> U O CZ I- T> O Z m = W o 33 z Q B Flute Recommendation for Shouldering and Slotting Shouldering (ae = 0.394") Modular End Mill Cutting Conditions by Application Shouldering Slotting Slotting r -1 Available Cutting i - j Condition for 2 Flutes Available Cutting Condition for 3 Flutes .315 .236 .158 .079 s " n. Tz 0.002 0.004 0.006 0.008 0.010 For high efficiency shouldering with higher feed rates, 3 or more flutes is possible. For slotting applications, use 2 flutes maximum to lower cutting forces. O cz -H o > H K N Multi-Flute is Possible Visit us online at Kyocera M57
