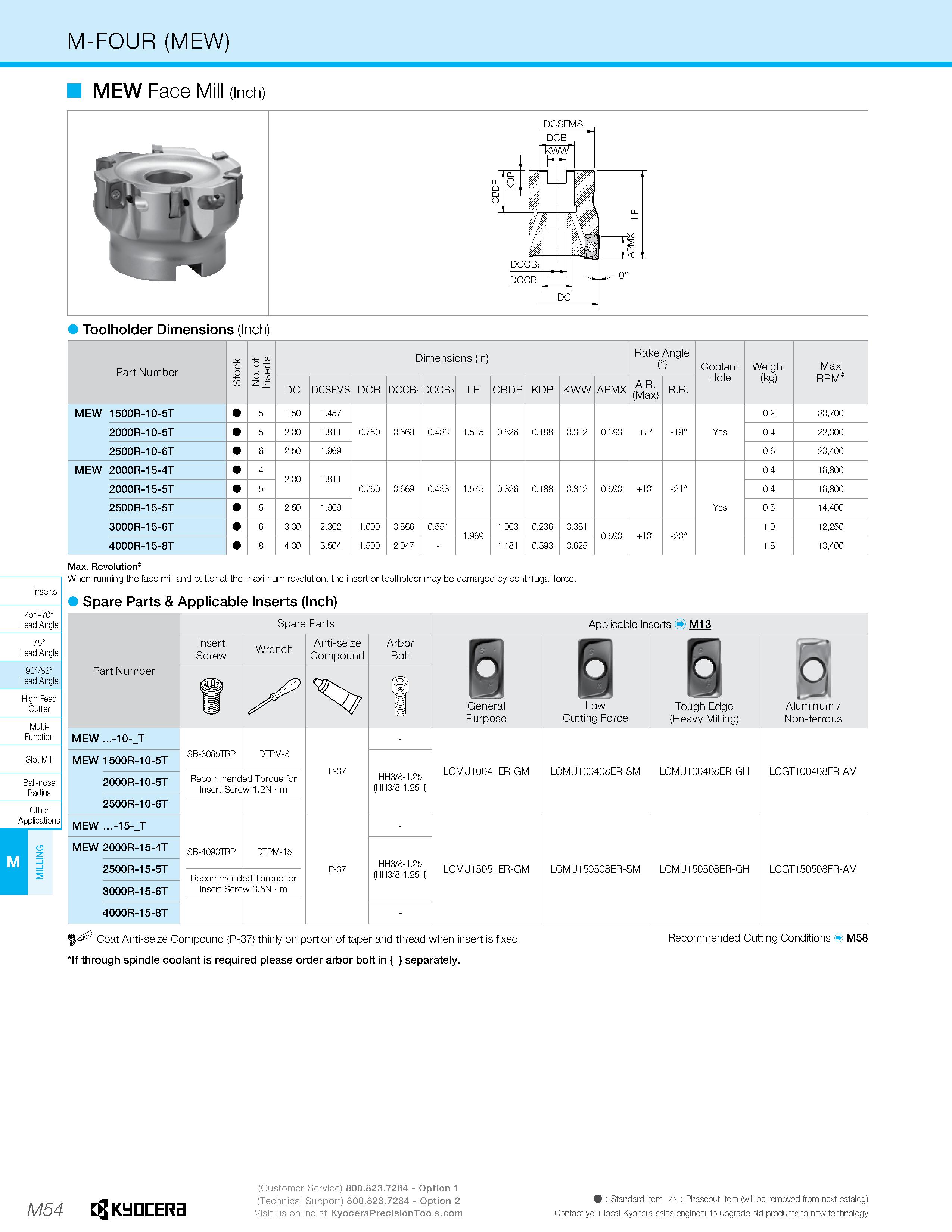

M-FOUR (MEW) MEW Face Mill (inch) DCSFMS DCCBs DCCB Toolholder Dimensions (Inch) Part Number Stock No. of Inserts Dimensions (in) Rake Angle n Coolant Hole Weight (kg) Max RPM DC DCSFMS DCB DCCB DCCB LF CBDP KDP KWW APMX A.R. (Max) R.R. MEW 1500R-10-5T 5 1.50 1.457 0.750 0.669 0.433 1.575 0.826 0.188 0.312 0.393 +7° -19° Yes 0.2 30,700 2000R-10-5T 5 2.00 1.811 0.4 22,300 2500R-10-6T 6 2.50 1.969 0.6 20,400 MEW 2000R-15-4T 4 2.00 1.811 0.750 0.669 0.433 1.575 0.826 0.188 0.312 0.590 +10° -21° Yes 0.4 16,800 2000R-15-5T 5 0.4 16,800 2500R-15-5T 5 2.50 1.969 0.5 14,400 3000R-15-6T 6 3.00 2.362 1.000 0.866 0.551 1.969 1.063 0.236 0.381 0.590 +10° -20° 1.0 12,250 4000R-15-8T 8 4.00 3.504 1.500 2.047 1.181 0.393 0.625 1.8 10,400 Inserts 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function Slot Mill B all-nose Radius Other Applications (5 M Max. Revolution When running the face mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Spare Parts & Applicable Inserts (Inch) Part Number Spare Parts Applicable Inserts M13 Insert Screw Wrench Anti-seize Compound Arbor Bolt 0 General Purpose 6 Low Cutting Force S Tough Edge (Heavy Milling) Aluminum / Non-ferrous u MEW ...-10 T DTPM-8 P-37 LOMU1004..ER-GM LOMU 100408ER-SM LOMU 100408ER-GH LOGT100408FR-AM MEW 1 500R-10-5T SB-3065TRP HH3/8-1.25 (HH3/8-1.25H) 2000R-10-5T Recommended Torque for Insert Screw 1.2N m 2500R-10-6T MEW ...-15 T DTPM-15 ed Torque for w 3.5N m P-37 LOMU1505..ER-GM LOMU 150508ER-SM LOMU 150508ER-GH LOGT150508FR-AM MEW 2000R-15-4T 2500R-15-5T 3000R-15-6T SB-4090TRP Recommend Insert Sere HH3/8-1.25 (HH3/8-1.25H) 4000R-15-8T - Coat Anti-seize Compound (P-37) thinly on portion of taper and thread when insert is fixed Recommended Cutting Conditions M58 lf through spindle coolant is required please order arbor bolt in ) separately. M54 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
