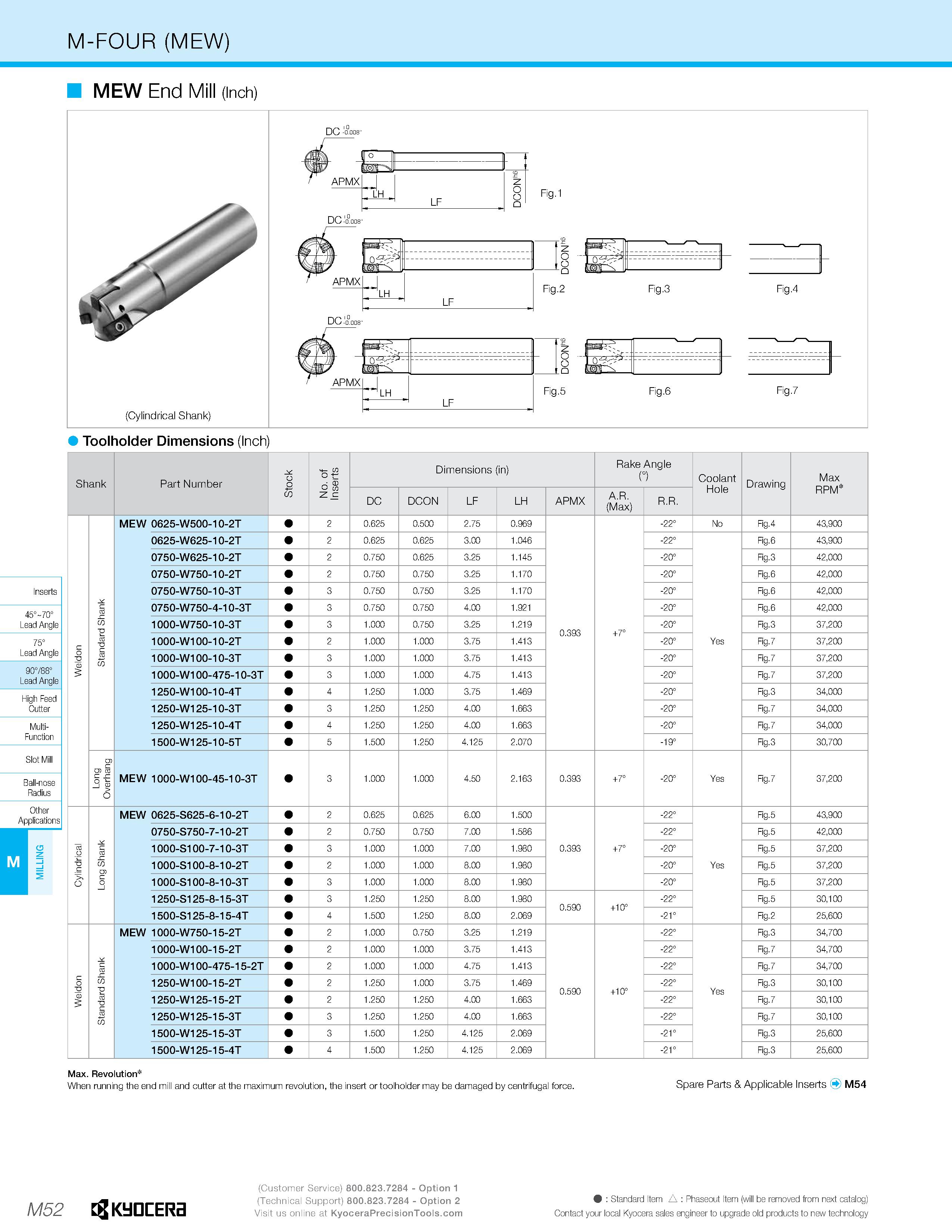

M-FOUR (MEW) MEW End (Inch) (Cylindrical Shank) ° j APMX z Q - LH „ LF Fig.1 DC-c APMX -I LH LF Fig.5 Fig.6 Fig.4 Fig.7 Toolholder Dimensions (Inch) Shank Part Number o No. of Inserts Dimensions (in) Rake Angle n Coolant Hole Drawing Max RPM DC DCON LF LH APMX A.R. (Max) R.R. MEW 0625-W500-10-2T 2 0.625 0.500 2.75 0.969 -22° No Fig.4 43,900 0625-W625-10-2T 2 0.625 0.625 3.00 1.046 -22° Fig. 6 43,900 0750-W625-10-2T 2 0.750 0.625 3.25 1.145 -20° Fig.3 42,000 0750-W750-10-2T 2 0.750 0.750 3.25 1.170 -20° Fig. 6 42,000 0750-W750-10-3T 3 0.750 0.750 3.25 1.170 -20° Fig. 6 42,000 C 0750-W750-4-10-3T 3 0.750 0.750 4.00 1.921 -20° Fig. 6 42,000 W 1000-W750-10-3T 3 1.000 0.750 3.25 1.219 0.393 +7° -20° Fig.3 37,200 CC "O 1000-W100-10-2T 2 1.000 1.000 3.75 1.413 -20° Yes Fig. 7 37,200 o TD CD 3 cC 1000-W100-10-3T 3 1.000 1.000 3.75 1.413 -20° Fig. 7 37,200 1000-W100-475-10-3T 3 1.000 1.000 4.75 1.413 -20° Fig. 7 37,200 1250-W100-10-4T 4 1.250 1.000 3.75 1.469 -20° Fig.3 34,000 1250-W125-10-3T 3 1.250 1.250 4.00 1.663 -20° Fig. 7 34,000 1250-W125-10-4T 4 1.250 1.250 4.00 1.663 -20° Fig. 7 34,000 1500-W125-10-5T 5 1.500 1.250 4.125 2.070 -19° Fig.3 30,700 Long Overhang MEW 1000-W100-45-10-3T 3 1.000 1.000 4.50 2.163 0.393 +7° -20° Yes Fig. 7 37,200 MEW 0625-S625-6-10-2T 2 0.625 0.625 6.00 1.500 -22° Fig.5 43,900 0750-S750-7-10-2T 2 0.750 0.750 7.00 1.586 -22° Fig.5 42,000 o c 1000-S100-7-10-3T 3 1.000 1.000 7.00 1.980 0.393 +7° -20° Fig.5 37,200 TJ c 1000-S100-8-10-2T 2 1.000 1.000 8.00 1.980 -20° Yes Fig.5 37,200 O c o -1 1000-S100-8-10-3T 3 1.000 1.000 8.00 1.980 -20° Fig.5 37,200 1250-S125-8-15-3T 3 1.250 1.250 8.00 1.980 0.590 +10° -22° Fig.5 30,100 1500-S125-8-15-4T 4 1.500 1.250 8.00 2.069 -21° Fig.2 25,600 MEW 1000-W750-15-2T 2 1.000 0.750 3.25 1.219 -22° Fig.3 34,700 1000-W100-15-2T 2 1.000 1.000 3.75 1.413 -22° Fig. 7 34,700 c 1000-W100-475-15-2T 2 1.000 1.000 4.75 1.413 -22° Fig. 7 34,700 c o '.C 1250-W100-15-2T 2 1.250 1.000 3.75 1.469 0.590 +10° -22° Yes Fig.3 30,100 CD -i: TD 1250-W125-15-2T 2 1.250 1.250 4.00 1.663 -22° Fig. 7 30,100 1250-W125-15-3T 3 1.250 1.250 4.00 1.663 -22° Fig. 7 30,100 1500-W125-15-3T 3 1.500 1.250 4.125 2.069 -21° Fig.3 25,600 1500-W125-15-4T 4 1.500 1.250 4.125 2.069 -21° Fig.3 25,600 45" 70" Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function B all-nose Radius Other Applications Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Spare Parts & Applicable Inserts M54 M52 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
