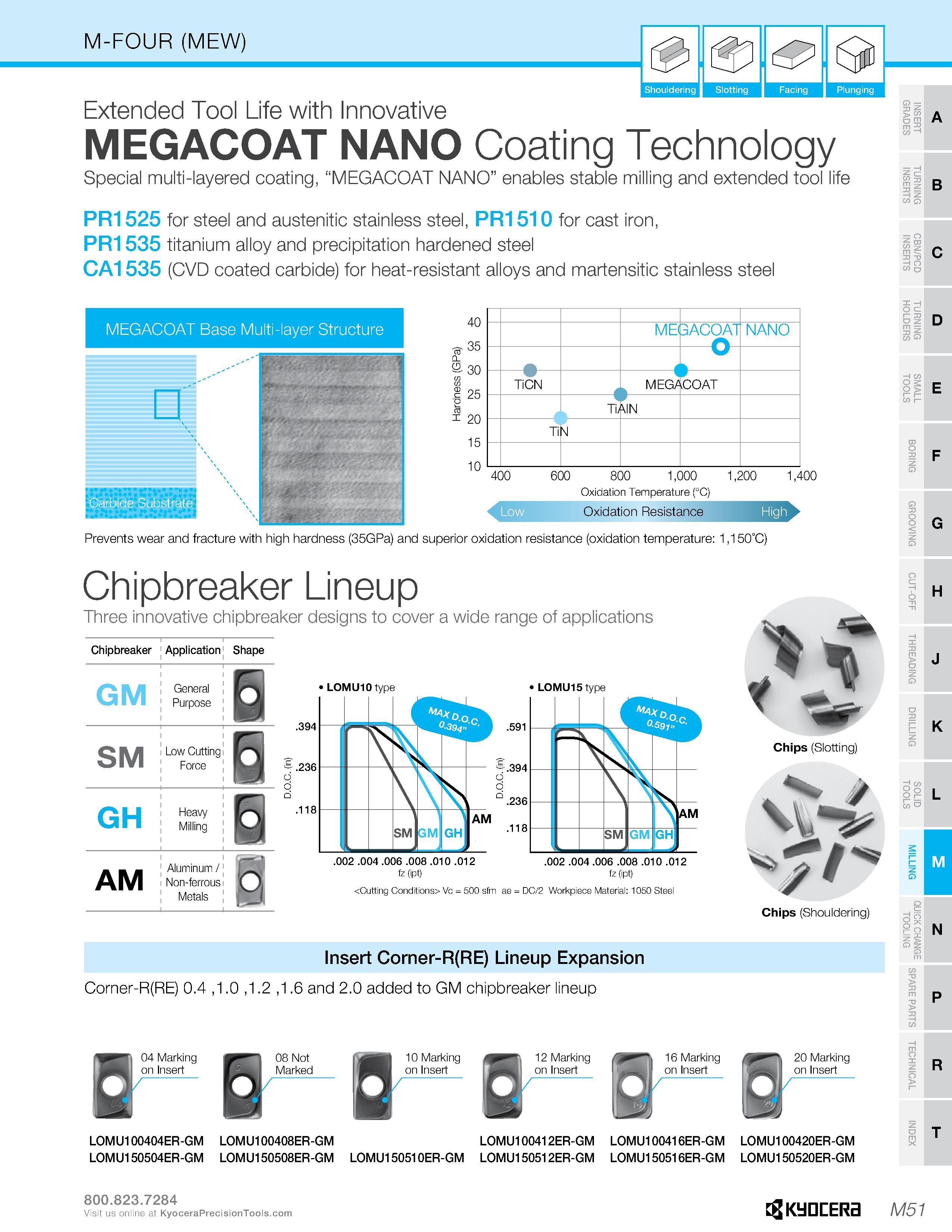

M-FOUR (MEW) dp s Shouldering Slotting Facing Plunging Extended Tool Life with Innovative MEGACOAT NANO Coating Technology Special multi-layered coating, “MEGACOAT NANO” enables stable milling and extended tool life PR1525 for steel and austenitic stainless steel, PR1510 for cast iron, PR1535 titanium alloy and precipitation hardened steel CA1535 (CVD coated carbide) for heat-resistant alloys and martensitic stainless steel jd o S8 B MEGACOAT Base Multi-layer Structure \ Carbide Substrate 40 35 Q a 30 in in 25 03 20 15 10 ME 3ACOA1 A NANO U 0 TiCN MEG/5 COAT % Ti/ MN J Ti W N 400 600 800 1,000 Oxidation Temperature (°C) Oxidation Resistance 1,200 1,400 Prevents wear and fracture with high hardness (35GPa) and superior oxidation resistance (oxidation temperature: 1,150°C) Chipbreaker Lineup Three innovative chipbreaker designs to cover a wide range of applications Chipbreaker Application Shape GM General Purpose LOMLMOtype k A Low Cutting OIVI Force GH Heavy Milling Aluminum / Non-ferrous Metals LOMU15type AM SM GM GH .002 .004 .006 .008 .010.012 fz (ipt) .002 .004 .006 .008 .010 .012 fz(ipt) Cutting Conditions> Vc = 500 sfm ae = DC/2 Workpiece Material: 1050 Steel Insert Corner-R(RE) Lineup Expansion Corner-R(RE) 0.4 ,1.0 ,1.2 ,1.6 and 2.0 added to GM chipbreaker lineup Chips (Slotting) \\r4- Chips (Shouldering) o cz I- T> o m = W o 5 z Q O cz -H o > o Q H K l 04 Marking 08 Not 10 Marking Marking 16 Marking 20 Marking II on Insert Marked on Insert on Insert on Insert on Insert O B B LOMU100404ER-GM LOMU100408ER-GM LOMU100412ER-GM LOMU100416ER-GM LOMU100420ER-GM LOMU150504ER-GM LOMU150508ER-GM LOMU150510ER-GM LOMU150512ER-GM LQMU150516ER-GM LQMU150520ER-GM Visit us online at Kyocera M51
