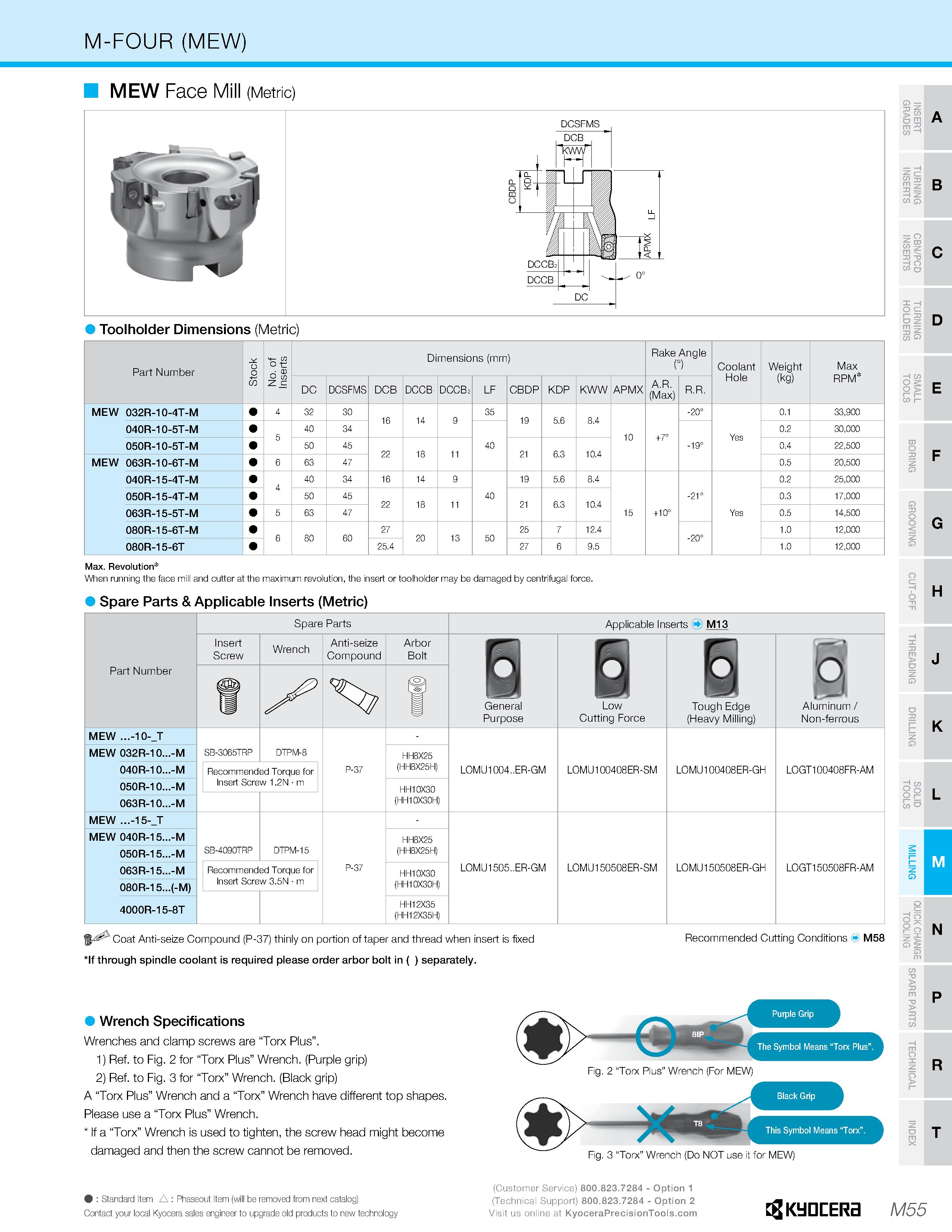

M-FOUR (MEW) MEW Face (Metric) O TI > £ o m m 2 c/) £ 5 C/> Q O CZ I- TI O m = w n s s o > B Toolholder Dimensions (Metric) Part Number Stock No. of Inserts Dimensions (mm) Rake Angle n Coolant Hole Weight (kg) Max RPM DC DCSFMS DCB DCCB DCCB LF CBDP KDP KWW APMX A.R. (Max) R.R. MEW 032R-10-4T-M 4 32 30 16 14 9 35 19 5.6 8.4 10 +7° -20° Yes 0.1 33,900 040R-10-5T-M 5 40 34 40 -19° 0.2 30,000 050R-10-5T-M 50 45 22 18 11 21 6.3 10.4 0.4 22,500 MEW 063R-10-6T-M 6 63 47 0.5 20,500 040R-15-4T-M 4 40 34 16 14 9 40 19 5.6 8.4 15 +10° -21° Yes 0.2 25,000 050R-15-4T-M 50 45 22 18 11 21 6.3 10.4 0.3 17,000 063R-15-5T-M 5 63 47 0.5 14,500 080R-15-6T-M 6 80 60 27 20 13 50 25 7 12.4 -20° 1.0 12,000 080R-15-6T 25.4 27 6 9.5 1.0 12,000 Max. Revolution When running the face mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Spare Parts & Applicable Inserts (Metric) H Part Number Spare Parts Insert Screw Wrench Anti-seize Compound Arbor Bolt Applicable Inserts M13 General Purpose 6 Low Cutting Force Tough Edge Heavy Milling) Aluminum / Non-ferrous K MEW ...-10- T MEW 032R-10...-M 040R-10...-M 050R-10...-M 063R-10...-M Recommended Torque for Insert Screw 1.2N m HH8X25 (HH8X25H) LOMU1004..ER-GM L0MU100408 ER-SM LOMU100408ER-GH LOGT100408FR-AM HH10X30 (HH10X30H) MEW ...-15- T MEW 040R-15...-M 050R-15...-M 063R-15...-M 080R-15...(-M) 4000R-15-8T Recommended Torque for Insert Screw 3.5N m HH8X25 (HH8X25H) HH10X30 (HH10X30H) HH12X35 (HH12X35H) LOMU1505..ER-GM L0MU150508 ER-SM LOMU150508ER-GH LOGT150508FR-AM N Coat Anti-seize Compound (P-37) thinly on portion of taper and thread when insert is fixed lf through spindle coolant is required please order arbor bolt in ( ) separately. Recommended Cutting Conditions M58 Wrench Specifications Wrenches and clamp screws are “Torx Plus”. 1) Ref. to Fig. 2 for “Torx Plus” Wrench. (Purple grip) 2) Ref. to Fig. 3 for “Torx” Wrench. (Black grip) A “Torx Plus” Wrench and a “Torx” Wrench have different top shapes. Please use a “Torx Plus” Wrench. If a “Torx” Wrench is used to tighten, the screw head might become damaged and then the screw cannot be removed. Fig. 3 “Torx” Wrench (Do NOT use it for MEW) : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera M55
