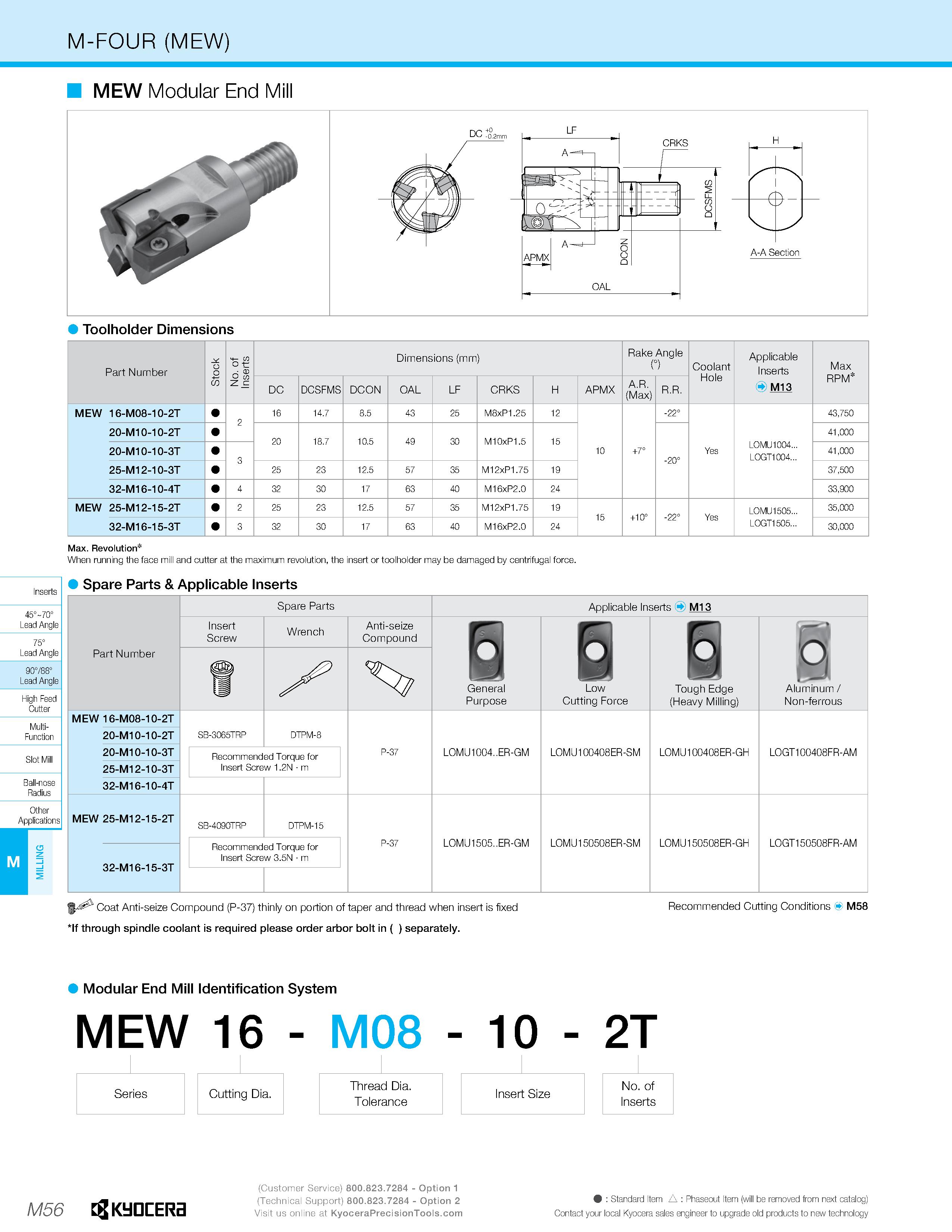

M-FOUR (MEW) MEW Modular End Mill CRKS APMX Toolholder Dimensions Part Number o No. of Inserts Dimensions (mm) Rake Angle (°) Coolant Hole Applicable Inserts Max DC DCSFMS DCON OAL LF CRKS H APMX A.R. (Max) R.R. M13 RPM MEW 16-M08-10-2T 2 16 14.7 8.5 43 25 M8xP1.25 12 -22° 43,750 20-M10-10-2T 20 18.7 10.5 49 M10xP1.5 15 LOMU 1004... LOGT1004... 41,000 20-M10-10-3T 3 10 +7° -20° Yes 41,000 25-M12-10-3T 25 23 12.5 57 35 M12xP1.75 19 37,500 32-M16-10-4T 4 32 30 17 63 40 M16xP2.0 24 33,900 MEW 25-M12-15-2T 2 25 23 12.5 57 35 M12xP1.75 19 15 +10° -22° Yes LOMU 1505... 35,000 32-M16-15-3T 3 32 30 17 63 40 M16xP2.0 24 LOGT15Q5... 30,000 Max. Revolution When running the face mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Spare Parts & Applicable Inserts 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Part Number Insert Screw Spare Parts Wrench Anti-seize Compound I General Purpose Applicable Inserts M13 Low Cutting Force Tough Edge Heavy Milling) D Aluminum / Non-ferrous Multi- Function B all-nose Radius Other Applications MEW 16-M08-10-2T 20-M10-10-2T 20-M10-10-3T 25-M12-10-3T Recommended Torque for Insert Screw 1.2N m LOMU1004..ER-GM LOMU 100408ER-SM LOMU 100408ER-GH LOGT100408FR-AM 32-M16-10-4T MEW 25-M12-15-2T 32-M16-15-3T Recommended Torque for Insert Screw 3.5N m LOMU15Q5..ER-GM LOMU 150508ER-SM LOMU 150508ER-GH LOGT150508FR-AM Coat Anti-seize Compound (P-37) thinly on portion of taper and thread when insert is fixed lf through spindle coolant is required please order arbor bolt in ( ) separately. Recommended Cutting Conditions M58 Modular End Mill Identification System MEW 16 - M08 - 10 - 2T M56 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
