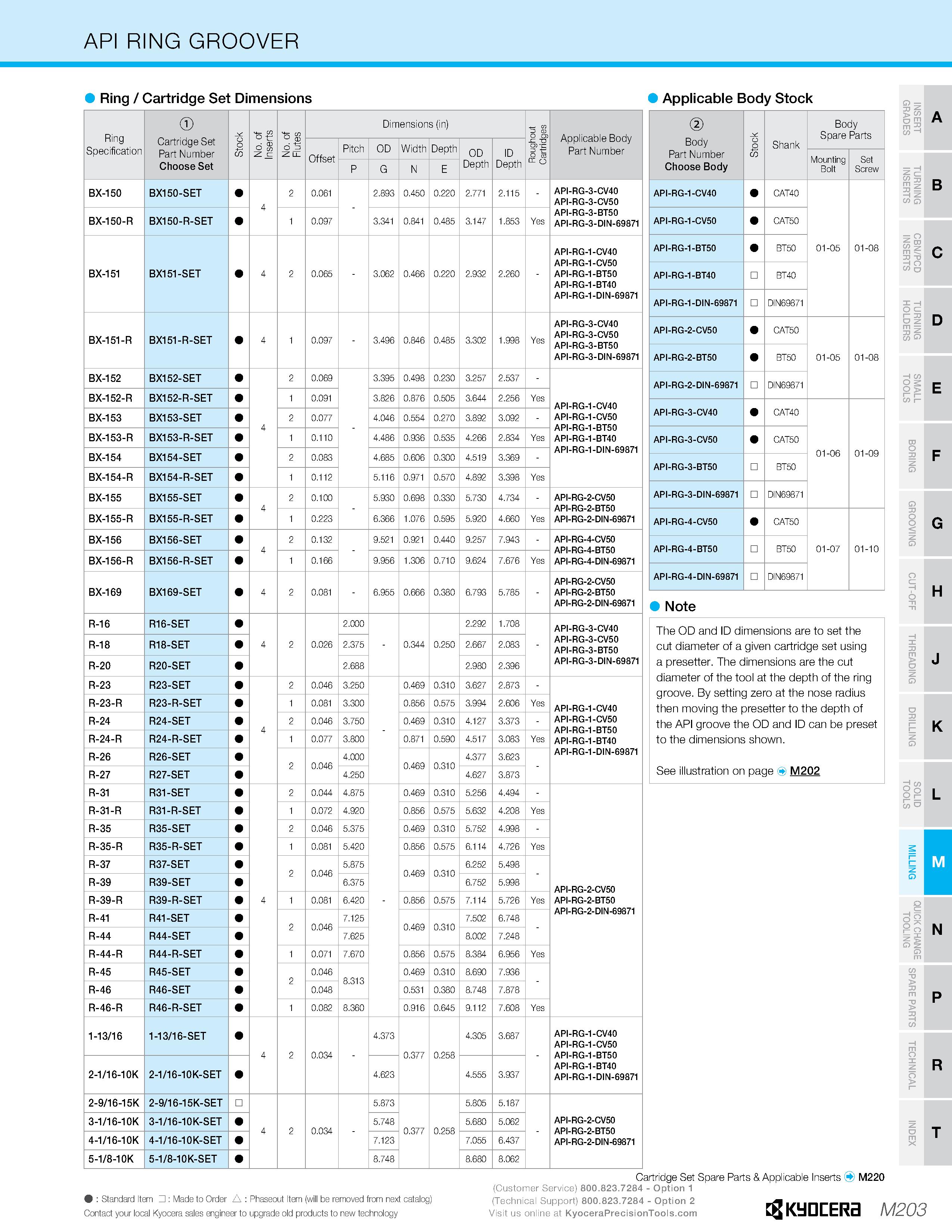

1173 Каталог KYOCERA 2019 Режущий инструмент для металлообработки на станках Стр.M203

Каталог KYOCERA 2019 Режущий инструмент по металлу Стр. M203 1173 Lab2u

API RING GROOVER Ring / Cartridge Set Dimensions Applicable Body Stock Ring Specification Stock No. of Inserts No. of Flutes Dimensions (in) Roughout Cartridges Applicable Body Part Number Cartridge Set Part Number Offset Pitch OD Width Depth OD ID Choose Set P G N E Depth Depth BX-150 BX150-SET 4 2 0.061 2.893 0.450 0.220 2.771 2.115 API-RG-3-CV40 API-RG-3-CV50 BX-150-R BX150-R-SET 0.097 3.341 0.841 0.485 3.147 1.853 Yes API-RG-3-BT50 API-RG-3-DIN-69871 BX-151 BX151-SET 4 2 0.065 3.062 0.466 0.220 2.932 2.260 API-RG-1-CV40 API-RG-1-CV50 API-RG-1-BT50 API-RG-1-BT40 API-RG-1-DIN-69871 BX-151-R BX151-R-SET 4 0.097 3.496 0.846 0.485 3.302 1.998 Yes API-RG-3-CV40 API-RG-3-CV50 API-RG-3-BT50 API-RG-3-DIN-69871 BX-152 BX152-SET 2 0.069 3.395 0.498 0.230 3.257 2.537 BX-152-R BX152-R-SET 0.091 3.826 0.876 0.505 3.644 2.256 Yes API-RG-1-CV40 BX-153 BX153-SET 4 2 0.077 4.046 0.554 0.270 3.892 3.092 API-RG-1-CV50 API-RG-1-BT50 API-RG-1-BT40 API-RG-1-DIN-69871 BX-153-R BX153-R-SET 0.110 4.486 0.936 0.535 4.266 2.834 Yes BX-154 BX154-SET 2 0.083 4.685 0.606 0.300 4.519 3.369 BX-154-R BX154-R-SET 0.112 5.116 0.971 0.570 4.892 3.398 Yes BX-155 BX155-SET 4 2 0.100 5.930 0.698 0.330 5.730 4.734 API-RG-2-CV50 API-RG-2-BT50 API-RG-2-DIN-69871 BX-155-R BX155-R-SET 0.223 6.366 1.076 0.595 5.920 4.660 Yes BX-156 BX156-SET 4 2 0.132 9.521 0.921 0.440 9.257 7.943 API-RG-4-CV50 API-RG-4-BT50 API-RG-4-DIN-69871 BX-156-R BX156-R-SET 0.166 9.956 1.306 0.710 9.624 7.676 Yes BX-169 BX169-SET 4 2 0.081 6.955 0.666 0.380 6.793 5.785 API-RG-2-CV50 API-RG-2-BT50 API-RG-2-DIN-69871 R-16 R16-SET 2.000 2.292 1.708 API-RG-3-CV40 R-18 R18-SET 4 2 0.026 2.375 0.344 0.250 2.667 2.083 API-RG-3-CV50 API-RG-3-BT50 R-20 R20-SET 2.688 2.980 2.396 API-RG-3-DIN-69871 R-23 R23-SET 2 0.046 3.250 0.469 0.310 3.627 2.873 R-23-R R23-R-SET 0.081 3.300 0.856 0.575 3.994 2.606 Yes API-RG-1-CV40 R-24 R24-SET 4 2 0.046 3.750 0.469 0.310 4.127 3.373 API-RG-1-CV50 API-RG-1-BT50 API-RG-1-BT40 R-24-R R24-R-SET 0.077 3.800 0.871 0.590 4.517 3.083 Yes R-26 R26-SET 2 0.046 4.000 0.469 0.310 4.377 3.623 API-RG-1-DIN-69871 R-27 R27-SET 4.250 4.627 3.873 R-31 R31-SET 2 0.044 4.875 0.469 0.310 5.256 4.494 R-31-R R31-R-SET 0.072 4.920 0.856 0.575 5.632 4.208 Yes R-35 R35-SET 2 0.046 5.375 0.469 0.310 5.752 4.998 R-35-R R35-R-SET 0.081 5.420 0.856 0.575 6.114 4.726 Yes R-37 R37-SET 2 0.046 5.875 0.469 0.310 6.252 5.498 R-39 R39-SET 6.375 6.752 5.998 API-RG-2-CV50 API-RG-2-BT50 API-RG-2-DIN-69871 R-39-R R39-R-SET 4 0.081 6.420 0.856 0.575 7.114 5.726 Yes R-41 R41-SET 2 0.046 7.125 0.469 0.310 7.502 6.748 R-44 R44-SET 7.625 8.002 7.248 R-44-R R44-R-SET 0.071 7.670 0.856 0.575 8.384 6.956 Yes R-45 R45-SET 2 0.046 8.313 0.469 0.310 8.690 7.936 R-46 R46-SET 0.048 0.531 0.380 8.748 7.878 R-46-R R46-R-SET 0.082 8.360 0.916 0.645 9.112 7.608 Yes 1-13/16 1-13/16-SET 4 2 0.034 4.373 0.377 0.258 4.305 3.687 API-RG-1-CV40 API-RG-1-CV50 API-RG-1-BT50 API-RG-1-BT40 API-RG-1-DIN-69871 2-1/16-10K 2-1/16-10K-SET 4.623 4.555 3.937 2-9/16-15K 2-9/16-15K-SET 5.873 5.805 5.187 3-1/16-10K 3-1/16-10K-SET 4 2 0.034 5.748 0.377 0.258 5.680 5.062 API-RG-2-CV50 API-RG-2-BT50 API-RG-2-DIN-69871 4-1/16-10K 4-1/16-10K-SET 7.123 7.055 6.437 5-1/8-10K 5-1/8-10K-SET 8.748 8.680 8.062 Body Part Number Choose Body ck ot tS Shank Body Spare Parts Mounting Bolt Set Screw API-RG-1-CV40 CAT40 01-05 01-08 API-RG-1-CV50 CAT50 API-RG-1-BT50 BT50 API-RG-1-BT40 BT40 API-RG-1-DIN-69871 DIN69871 API-RG-2-CV50 CAT50 01-05 01-08 API-RG-2-BT50 BT50 API-RG-2-DIN-69871 DIN69871 API-RG-3-CV40 CAT40 01-06 01-09 API-RG-3-CV50 CAT50 API-RG-3-BT50 BT50 API-RG-3-DIN-69871 DIN69871 API-RG-4-CV50 CAT50 01-07 01-10 API-RG-4-BT50 BT50 API-RG-4-DIN-69871 DIN69871 A Note The OD and ID dimensions are to set the cut diameter of a given cartridge set using a presetter. The dimensions are the cut diameter of the tool at the depth of the ring groove. By setting zero at the nose radius then moving the presetter to the depth of the API groove the OD and ID can be preset to the dimensions shown. See illustration on page M202 E R T Z C/5 G DO "O S8 O cz - 0 > g N O B C D 0 s O A o g N 0) E G H K N P R T : Standard Item : Made to Order A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology Cartridge Set Spare Parts & Applicable Inserts M220 (Customer Service) - Option 1 (Technical Support) - Option 2 KA2C\3 Visit us online at IVI2U3 F J L M
