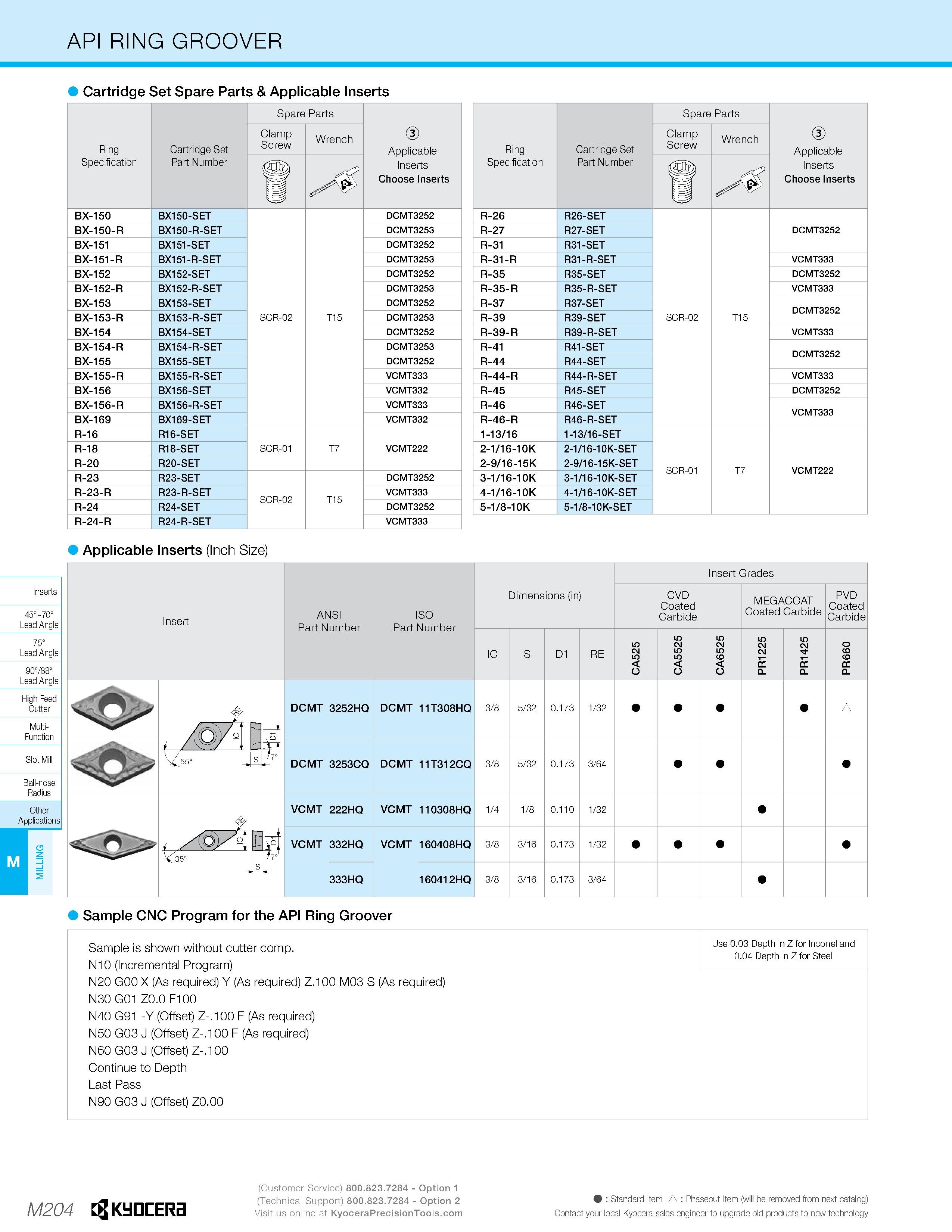

1174 Каталог KYOCERA 2019 Режущий инструмент для металлообработки на станках Стр.M204

Каталог KYOCERA 2019 Режущий инструмент по металлу Стр. M204 1174 Lab2u

API RING GROOVER Cartridge Set Spare Parts & Applicable Inserts Spare Parts Ring Cartridge Set Clamp Screw Wrench Applicable Inserts Choose Inserts Specification Part Number j BX-150 BX150-SET DCMT3252 BX-150-R BX150-R-SET DCMT3253 BX-151 BX151-SET DCMT3252 BX-151-R BX151-R-SET DCMT3253 BX-152 BX152-SET DCMT3252 BX-152-R BX152-R-SET DCMT3253 BX-153 BX153-SET DCMT3252 BX-153-R BX153-R-SET SCR-02 T15 DCMT3253 BX-154 BX154-SET DCMT3252 BX-154-R BX154-R-SET DCMT3253 BX-155 BX155-SET DCMT3252 BX-155-R BX155-R-SET VCMT333 BX-156 BX156-SET VCMT332 BX-156-R BX156-R-SET VCMT333 BX-169 BX169-SET VCMT332 R-16 R16-SET R-18 R18-SET SCR-01 T7 VCMT222 R-20 R20-SET R-23 R23-SET DCMT3252 R-23-R R23-R-SET SCR-02 T15 VCMT333 R-24 R24-SET DCMT3252 R-24-R R24-R-SET VCMT333 Applicable Inserts (Inch Size) Spare Parts Ring Cartridge Set Clamp Screw Wrench Applicable Inserts Choose Inserts Specification Part Number u R-26 R26-SET R-27 R27-SET DCMT3252 R-31 R31-SET R-31-R R31-R-SET VCMT333 R-35 R35-SET DCMT3252 R-35-R R35-R-SET VCMT333 R-37 R37-SET DCMT3252 R-39 R39-SET SCR-02 T15 R-39-R R39-R-SET VCMT333 R-41 R41-SET DCMT3252 R-44 R44-SET R-44-R R44-R-SET VCMT333 R-45 R45-SET DCMT3252 R-46 R46-SET VCMT333 R-46-R R46-R-SET 1-13/16 1-13/16-SET 2-1/16-10K 2-1/16-10K-SET 2-9/16-15K 2-9/16-15K-SET SCR-01 T7 VCMT222 3-1/16-10K 3-1/16-10K-SET 4-1/16-10K 4-1/16-10K-SET 5-1/8-10K 5-1/8-10K-SET 45°-70° Lead Angle 75° Lead Angle 90°/88° Lead Angle High Feed Cutter Insert ANSI Part Number ISO Part Number Dimensions (in) IC D1 RE Insert Grades C CVD Coated Carbide 5 C MEGACOAT Coated Carbide C cc P cc P PVD Coated Carbide cc P Multi- Function Ball-nose Radius Other Applications DCMT 3252HQ DCMT 3253CQ VCMT 222HQ DCMT 11T308HQ DCMT 11T312CQ VCMT 110308HQ VCMT 332HQ VCMT 160408HQ 333HQ 160412HQ Sample CZC Program for the API Ring Groover Sample is shown without cutter comp. N10 (Incremental Program) N20 G00 X (As required) Y (As required) Z.100 M03 S (As required) N30 G01 Z0.0 F100 N40 G91 -Y (Offset) Z-.100 F (As required) N50 G03 J (Offset) Z-.100 F (As required) N60 G03 J (Offset) Z-.100 Continue to Depth Last Pass N90 G03 J (Offset) Z0.00 Use 0.03 Depth in Z for Inconel and 0.04 Depth in Z for Steel M204 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology nserts S 3/8 5/32 1/32 Slot Mill 3/8 5/32 3/64 1/4 1/8 1/32 3/8 3/16 1/32 M 3/8 3/16 3/64
