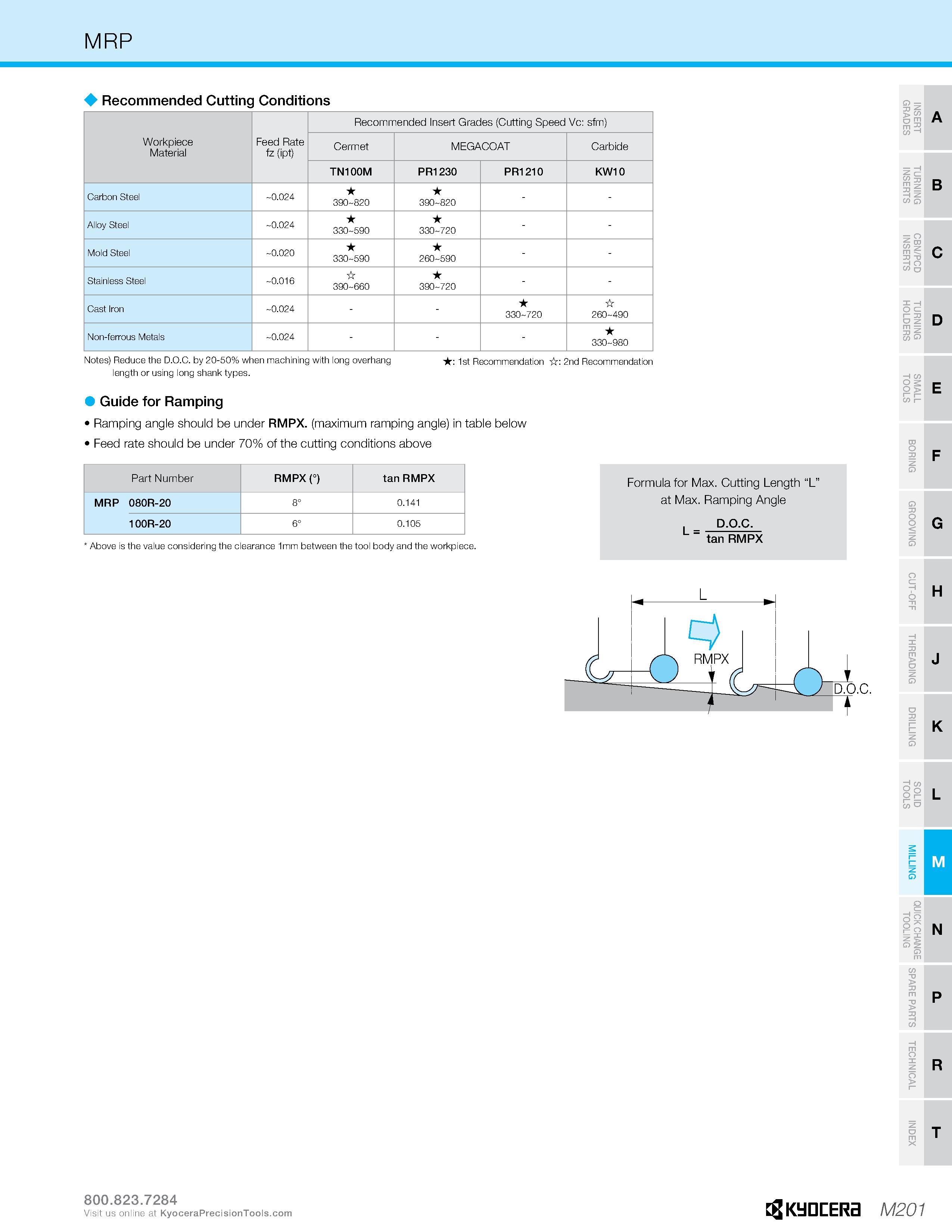

MRP 4 Recommended Cutting Conditions Recommended Insert Grades (Cutting Speed Vc: sfm) Workpiece Material Feed Rate fz (ipt) Cermet MEGACOAT Carbide TN100M PR1230 PR1210 KW10 Carbon Steel -0.024 390-820 390-820 - - Alloy Steel -0.024 330-590 330-720 - - Mold Steel -0.020 330-590 260-590 - - Stainless Steel -0.016 390-660 390-720 - - Cast Iron -0.024 - - 330-720 260-490 Non-ferrous Metals -0.024 - - - 330-980 Notes) Reduce the D.O.C. by 20-50% when machining with long overhang length or using long shank types. : 1st Recommendation : 2nd Recommendation Guide for Ramping Ramping angle should be under RMPX. (maximum ramping angle) in table below Feed rate should be under 70% of the cutting conditions above Part Number RMPX (°) tan RMPX MRP 080R-20 8° 0.141 1 00R-20 6° 0.105 Formula for Max. Cutting Length “L” at Max. Ramping Angle L = Above is the value considering the clearance 1mm between the tool body and the workpiece. D.O.C. tan RMPX o m A S A “ B T> U 8 O CZ I- T> O m = I C/) o c t O 33 Z Q O cz -H o > o Q H K R N Visit us online at Kyocera M201
