1170 Каталог KYOCERA 2019 Режущий инструмент для металлообработки на станках Стр.M200

Каталог KYOCERA 2019 Режущий инструмент по металлу Стр. M200 1170 Lab2u

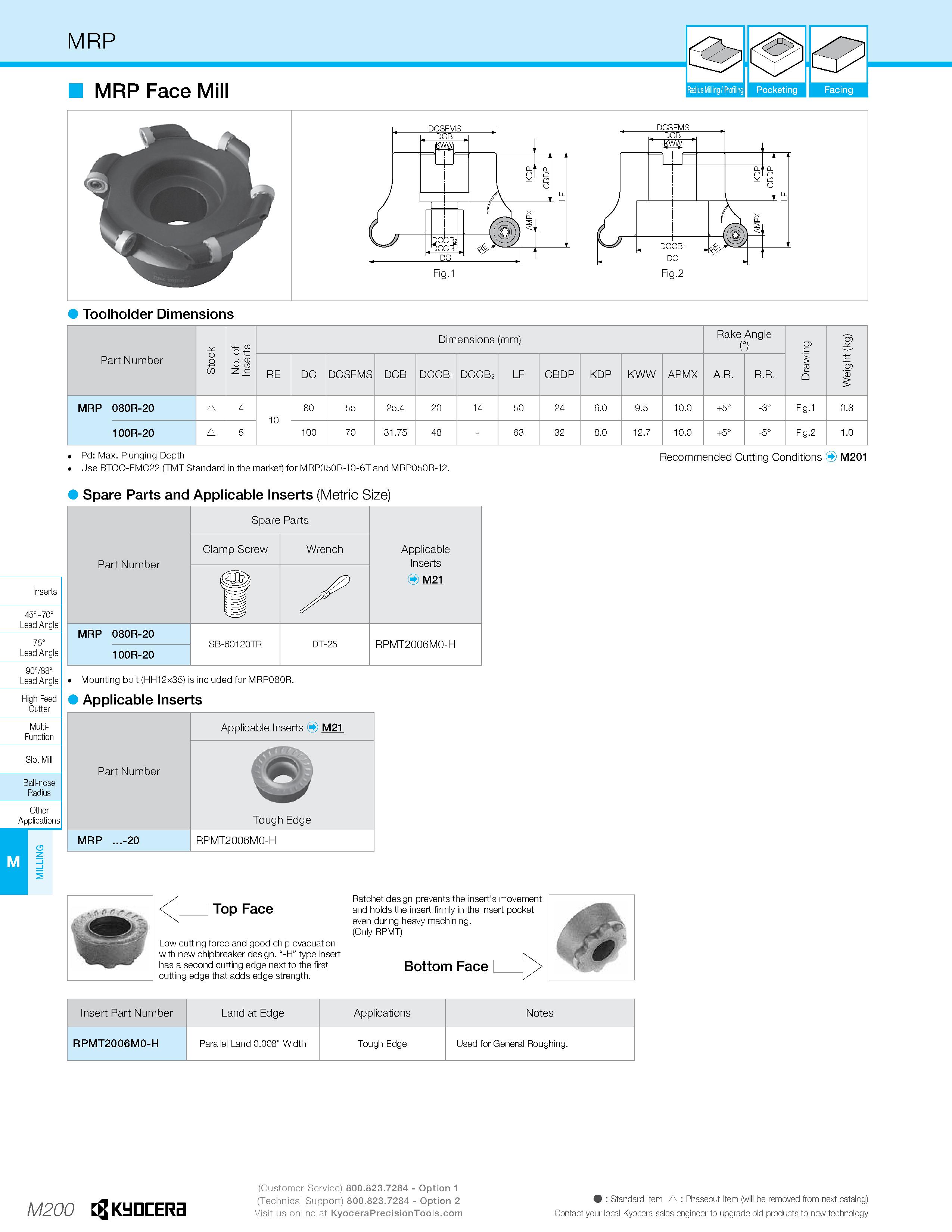

Toolholder Dimensions Part Number Stock No. of Inserts Dimensions (mm) Rake Angle 0 Drawing Weight (kg) RE DC DCSFMS DCB DCCBi DCCB2 LF CBDP KDP KWW APMX A.R. R.R. MRP 080R-20 4 10 80 55 25.4 20 14 50 24 6.0 9.5 10.0 +5° -3° Fig.1 0.8 100R-20 5 100 70 31.75 48 - 63 32 8.0 12.7 10.0 +5° -5° Fig.2 1.0 Pd: Max. Plunging Depth Recommended Cutting Conditions M201 Use BTOO-FMC22 (TMT Standard in the market) for MRP050R-10-6T and MRP050R-12. Spare Parts and Applicable Inserts (Metric Size) 45" 70" Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function B all-nose Radius Other Applications Part Number Spare Parts Applicable Inserts ( M21 Clamp Screw Wrench u MRP 080R-20 1 00R-20 SB-60120TR DT-25 RPMT2006M0-H Mounting bolt (HH12x35) is included for MRP080R. Applicable Inserts Part Number Applicable Inserts M21 Tough Edge MRP ...-20 RPMT2006M0-H Ratchet design prevents the insert's movement Top Face and holds the insert firmly in the insert pocket even during heavy machining. (Only RPMT) Low cutting force and good chip evacuation with new chipbreaker design. “-H” type insert has a second cutting edge next to the first Bottom F3C6 cutting edge that adds edge strength. Insert Part Number Land at Edge Applications Notes RPMT2006M0-H Parallel Land 0.008" Width Tough Edge Used for General Roughing. M200 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
