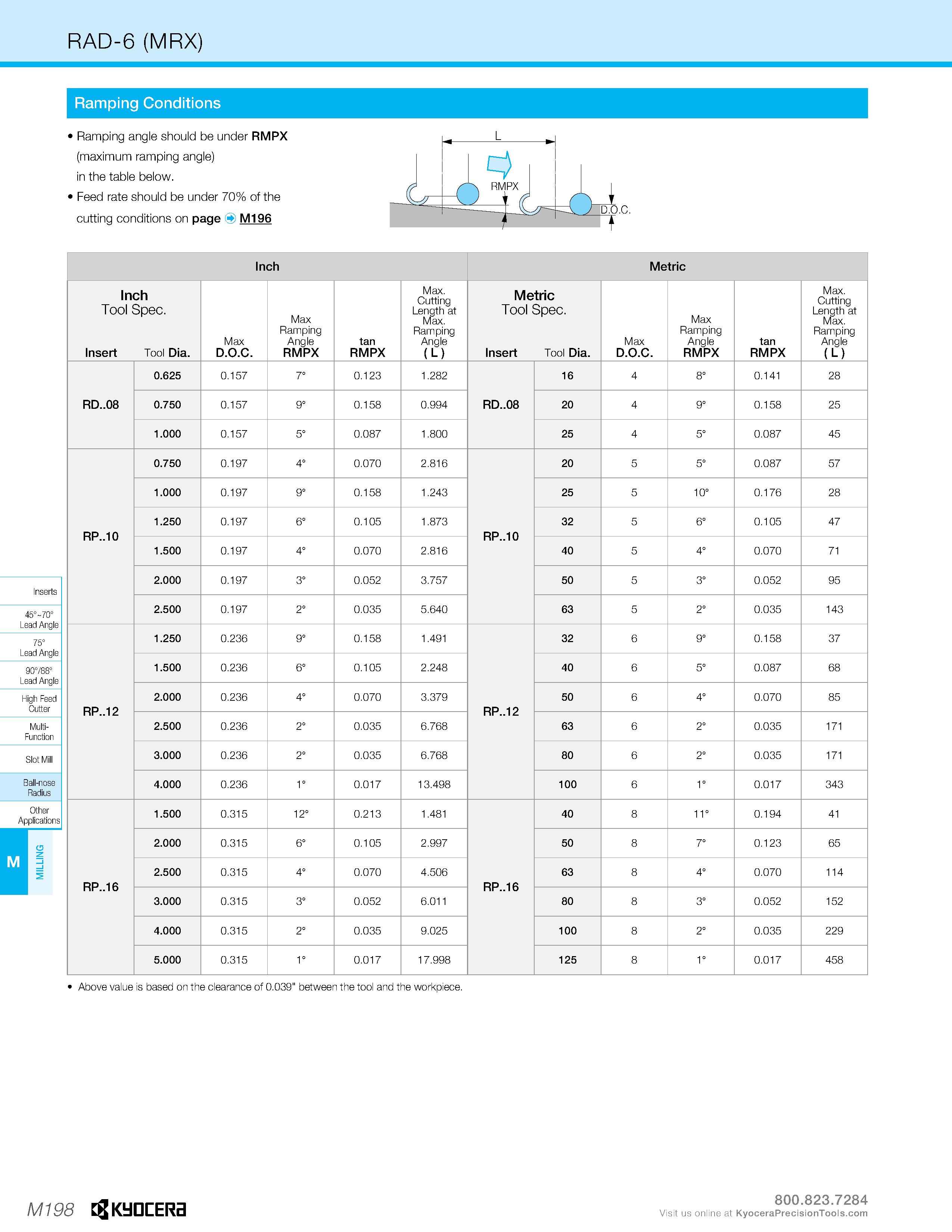

RAD-6 (MRX) Ramping Conditions Ramping angle should be under RMPX (maximum ramping angle) in the table below. Feed rate should be under 70% of the cutting conditions on page ( M196 Inserts 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Inch Metric Inch Tool Spec. Insert Tool Dia. Max D.O.C. Max Ramping Angle RMPX tan RMPX Max. Cutting Length at Max. Ramping Angle (L) Metric Tool Spec. Insert Tool Dia. Max D.O.C. Max Ramping Angle RMPX tan RMPX Max. Cutting Length at Max. Ramping Angle (L) RD..08 0.625 0.157 7° 0.123 1.282 RD..08 16 4 8° 0.141 28 0.750 0.157 9° 0.158 0.994 20 4 9° 0.158 25 1.000 0.157 5° 0.087 1.800 25 4 5° 0.087 45 RP..10 0.750 0.197 4° 0.070 2.816 RP..10 20 5 5° 0.087 57 1.000 0.197 9° 0.158 1.243 25 5 10° 0.176 28 1.250 0.197 6° 0.105 1.873 32 5 6° 0.105 47 1.500 0.197 4° 0.070 2.816 40 5 4° 0.070 71 2.000 0.197 3° 0.052 3.757 50 5 3° 0.052 95 2.500 0.197 2° 0.035 5.640 63 5 2° 0.035 143 RP..12 1.250 0.236 9° 0.158 1.491 RP..12 32 6 9° 0.158 37 1.500 0.236 6° 0.105 2.248 40 6 5° 0.087 68 2.000 0.236 4° 0.070 3.379 50 6 4° 0.070 85 Multi- Function 2.500 0.236 2° 0.035 6.768 63 6 2° 0.035 171 Slot Mill 3.000 0.236 2° 0.035 6.768 80 6 2° 0.035 171 B all-nose Radius 4.000 0.236 1° 0.017 13.498 100 6 1° 0.017 343 Other Applications RP..16 1.500 0.315 12° 0.213 1.481 RP..16 40 8 11° 0.194 41 M CD Z i i 2 2.000 0.315 6° 0.105 2.997 50 8 7° 0.123 65 2.500 0.315 4° 0.070 4.506 63 8 4° 0.070 114 3.000 0.315 3° 0.052 6.011 80 8 3° 0.052 152 4.000 0.315 2° 0.035 9.025 100 8 2° 0.035 229 5.000 0.315 1° 0.017 17.998 125 8 1° 0.017 458 Above value is based on the clearance of 0.039" between the tool and the workpiece. M198 Kyocera Visit us online at
