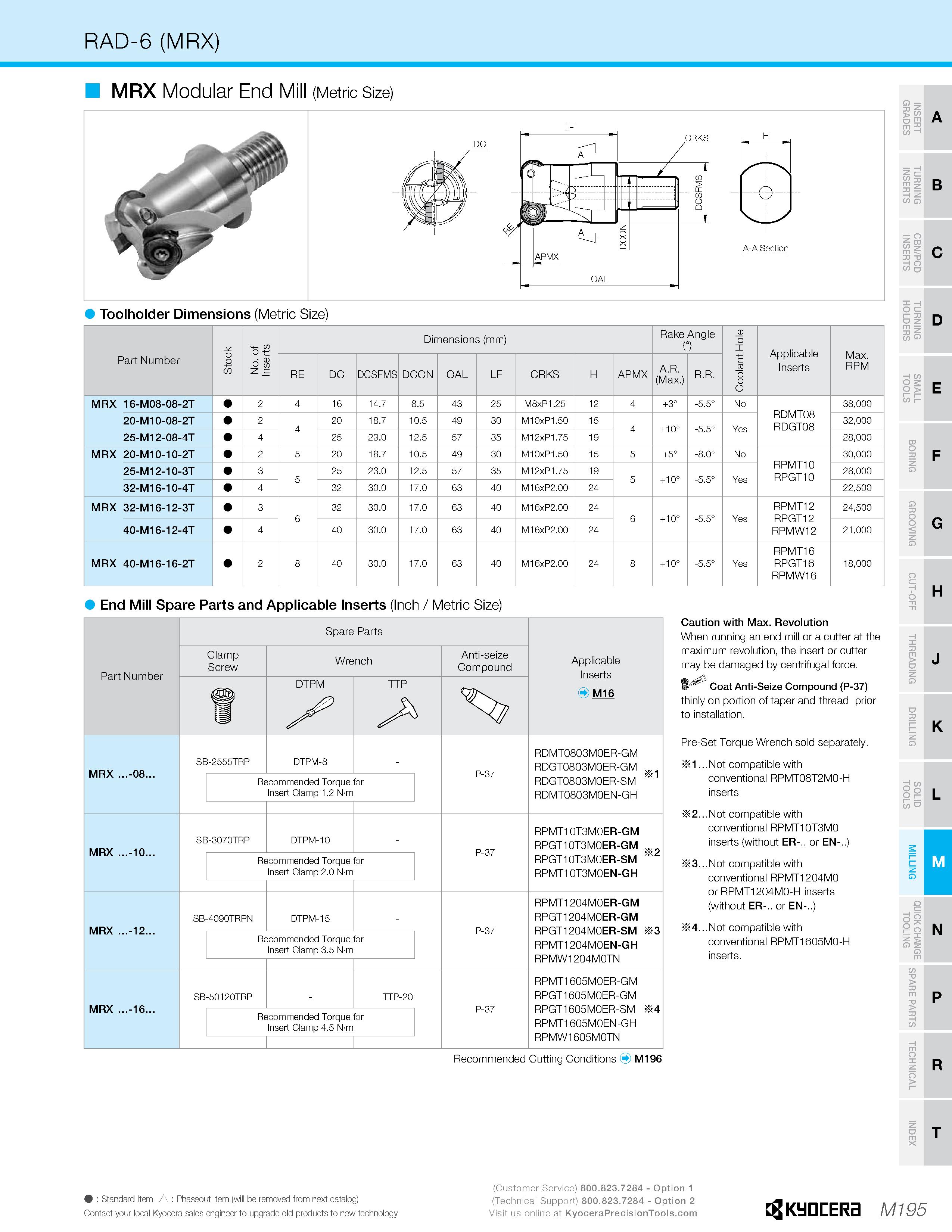

RAD-6 (MRX) MRX Modular End (Metric Size) CD T> > E o g m 2 c/> B T> U Toolholder Dimensions (Metric Size) Part Number Stock No. of Inserts Dimensions (mm) Rake Angle 0 Coolant Hole Applicable Inserts Max. RPM RE DC DCSFMS DCON OAL LF CRKS H APMX A.R. (Max.) R.R. MRX 16-M08-08-2T 2 4 16 14.7 8.5 43 25 M8xP1.25 12 4 +3° -5.5° No RDMT08 RDGT08 38,000 20-M10-08-2T 2 4 20 18.7 10.5 49 30 M10xP1.50 15 4 +10° -5.5° Yes 32,000 25-M12-08-4T 4 25 23.0 12.5 57 35 M12xP1.75 19 28,000 MRX 20-M10-10-2T 2 5 20 18.7 10.5 49 30 M10xP1.50 15 5 +5° -8.0° No RPMT10 RPGT 10 30,000 25-M12-10-3T 3 5 25 23.0 12.5 57 35 M12xP1.75 19 5 +10° -5.5° Yes 28,000 32-M16-10-4T 4 32 30.0 17.0 63 40 M16xP2.00 24 22,500 MRX 32-M16-12-3T 3 6 32 30.0 17.0 63 40 M16xP2.00 24 6 +10° -5.5° Yes RPMT12 RPGT 12 RPMW12 24,500 40-M16-12-4T 4 40 30.0 17.0 63 40 M16xP2.00 24 21,000 MRX 40-M16-16-2T 2 8 40 30.0 17.0 63 40 M16xP2.00 24 8 +10° -5.5° Yes RPMT16 RPGT 16 RPMW16 18,000 O CZ I- T> O m = O S o > o cz -H o > o z. Q H End Mill Spare Parts and Applicable Inserts (Inch / Metric Size) Part Number MRX ...-08... MRX ...-10... MRX ...-12... MRX ...-16... Clamp Screw Spare Parts Wrench DTPM TTP Recommended Torque for Insert Clamp 1.2 N-m Recommended Torque for Insert Clamp 2.0 N-m SB-4090TRPN Recommended Torque for Insert Clamp 3.5 N-m SB-50120TRP Recommended Torque for Insert Clamp 4.5 N-m i r Anti-seize Compound Applicable Inserts 3> M16 RDMT0803M0ER-GM RDGT0803M0ER-GM RDGT0803M0ER-SM RDMT0803M0EN-GH RPMT10T3M0ER-GM RPGT10T3M0ER-GM RPGT10T3M0ER-SM RPMT10T3M0EN-GH RPMT1204M0ER-GM RPGT1204M0ER-GM RPGT1204M0ER-SM 3 RPMT1204M0EN-GH RPMW1204M0TN RPMT1605M0ER-GM RPGT1605M0ER-GM RPGT1605M0ER-SM 4 RPMT1605M0EN-GH RPMW1605M0TN Caution with Max. Revolution When running an end mill or a cutter at the maximum revolution, the insert or cutter may be damaged by centrifugal force. Coat Anti-Seize Compound (P-37) thinly on portion of taper and thread prior to installation. Pre-Set Torque Wrench sold separately. 1... Not compatible with conventional RPMT08T2M0-H inserts &2...Not compatible with conventional RPMT10T3M0 inserts (without ER-,, or EN-..) 553...Not compatible with conventional RPMT1204M0 or RPMT1204M0-H inserts (without ER-.. or EN-..) 554...Not compatible with conventional RPMT1605M0-H inserts. K N Recommended Cutting Conditions M196 APMX : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera M195
