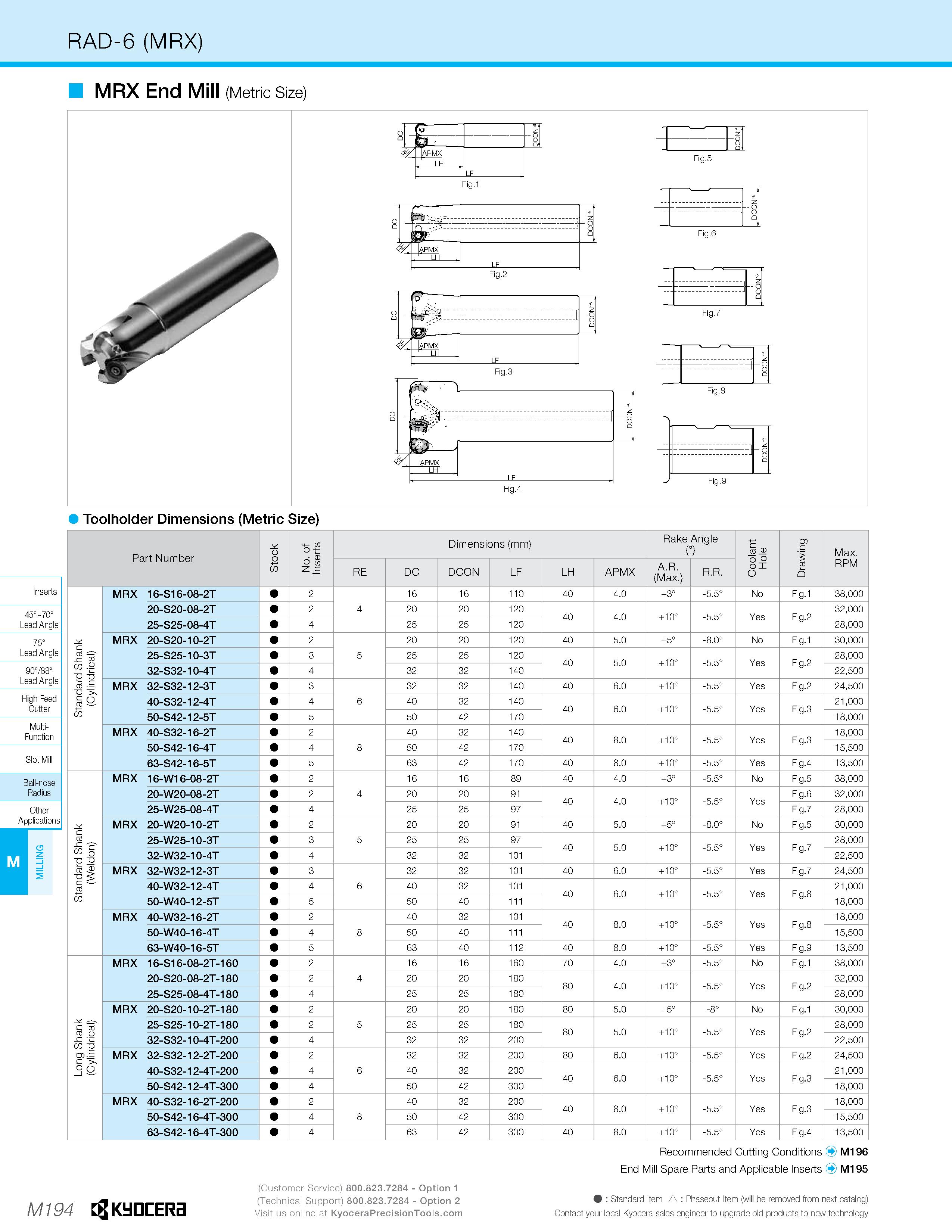

RAD-6 (MRX) MRX End Mill (Metric Size) Toolholder Dimensions (Metric Size) Part Number o No. of Inserts Dimensions (mm) Rake Angle n CD Max. RE DC DCON LF LH APMX A.R. (Max.) R.R. O X O Q RPM MRX 16-S16-08-2T 2 16 16 110 40 4.0 +3° -5.5° No Fig.1 38,000 20-S20-08-2T 2 4 20 20 120 40 4.0 +10° -5.5° Yes Fig.2 32,000 25-S25-08-4T 4 25 25 120 28,000 MRX 20-S20-10-2T 2 20 20 120 40 5.0 +5° -8.0° No Fig.1 30,000 25-S25-10-3T 3 5 25 25 120 40 5.0 +10° -5.5° Yes Fig.2 28,000 .y 32-S32-10-4T 4 32 32 140 22,500 fe E MRX 32-S32-12-3T 3 32 32 140 40 6.0 +10° -5.5° Yes Fig.2 24,500 40-S32-12-4T 4 6 40 32 140 40 6.0 +10° -5.5° Yes Fig.3 21,000 50-S42-12-5T 5 50 42 170 18,000 MRX 40-S32-16-2T 2 40 32 140 40 8.0 +10° -5.5° Yes Fig.3 18,000 50-S42-16-4T 4 8 50 42 170 15,500 63-S42-16-5T 5 63 42 170 40 8.0 +10° -5.5° Yes Fig.4 13,500 MRX 16-W16-08-2T 2 16 16 89 40 4.0 +3° -5.5° No Fig.5 38,000 20-W20-08-2T 2 4 20 20 91 40 4.0 +10° -5.5° Yes Fig.6 32,000 25-W25-08-4T 4 25 25 97 Fig.7 28,000 MRX 20-W20-10-2T 2 20 20 91 40 5.0 +5° -8.0° No Fig.5 30,000 'B 25-W25-10-3T 3 5 25 25 97 40 5.0 +10° -5.5° Yes Fig.7 28,000 32-W32-10-4T 4 32 32 101 22,500 fe V MRX 32-W32-12-3T 3 32 32 101 40 6.0 +10° -5.5° Yes Fig.7 24,500 c 40-W32-12-4T 4 6 40 32 101 40 6.0 +10° -5.5° Yes Fig.8 21,000 50-W40-12-5T 5 50 40 111 18,000 MRX 40-W32-16-2T 2 40 32 101 40 8.0 +10° -5.5° Yes Fig.8 18,000 50-W40-16-4T 4 8 50 40 111 15,500 63-W40-16-5T 5 63 40 112 40 8.0 +10° -5.5° Yes Fig.9 13,500 MRX 16-S16-08-2T -160 2 16 16 160 70 4.0 +3° -5.5° No Fig.1 38,000 20-S20-08-2T-180 2 4 20 20 180 80 4.0 +10° -5.5° Yes Fig.2 32,000 25-S25-08-4T-180 4 25 25 180 28,000 MRX 20-S20-10-2T-180 2 20 20 180 80 5.0 +5° -8° No Fig.1 30,000 S & o C o CD 25-S25-10-2T-180 2 5 25 25 180 5.0 +10° -5.5° Yes Fig.2 28,000 32-S32-10-4T-200 4 32 32 200 22,500 MRX 32-S32-12-2T-200 2 32 32 200 80 6.0 +10° -5.5° Yes Fig.2 24,500 5S 40-S32-12-4T-200 4 6 40 32 200 40 6.0 +10° -5.5° Yes Fig.3 21,000 50-S42-12-4T-300 4 50 42 300 18,000 MRX 40-S32-16-2T-200 2 40 32 200 40 8.0 +10° -5.5° Yes Fig.3 18,000 50-S42-16-4T-300 4 8 50 42 300 15,500 63-S42-16-4T-300 4 63 42 300 40 8.0 +10° -5.5° Yes Fig.4 13,500 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function B all-nose Radius Other Applications M194 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Recommended Cutting Conditions M196 End Mill Spare Parts and Applicable Inserts M195 : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
