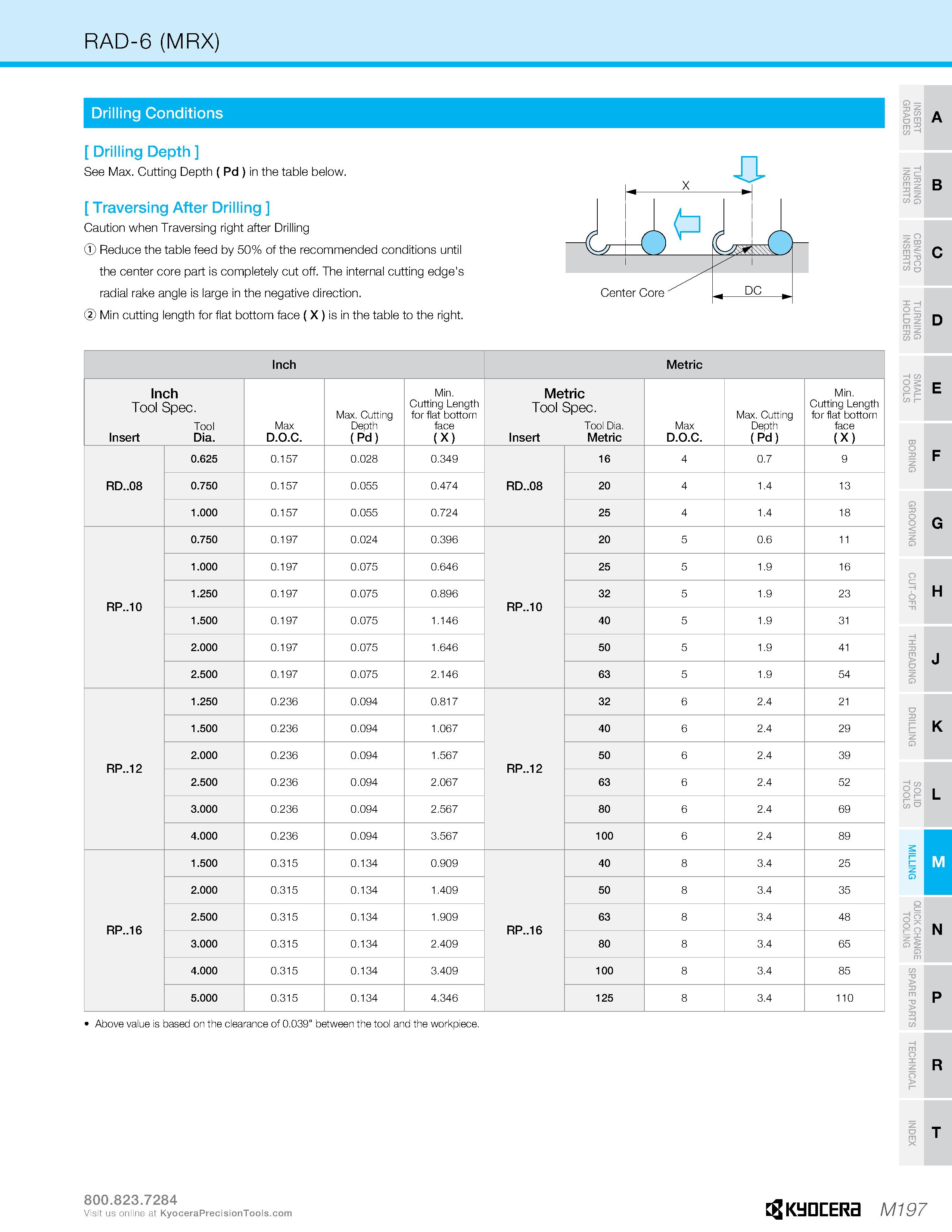

RAD-6 (MRX) Drilling Conditions Drilling Depth See Max. Cutting Depth ( Pd ) in the table below. Traversing After Drilling Caution when Traversing right after Drilling Reduce the table feed by 50% of the recommended conditions until the center core part is completely cut off. The internal cutting edge's radial rake angle is large in the negative direction. ( > Min cutting length for flat bottom face (X) is in the table to the right. Inch Metric Inch Tool Spec. Tool Insert Dia. Max D.O.C. Max. Cutting Depth (Pd) Min. Cutting Length for flat bottom face (X) Metric Tool Spec. Tool Dia. Insert Metric Max D.O.C. Max. Cutting Depth (Pd) Min. Cutting Length for flat bottom face (X) RD..08 0.625 0.157 0.028 0.349 RD..08 16 4 0.7 9 0.750 0.157 0.055 0.474 20 4 1.4 13 1.000 0.157 0.055 0.724 25 4 1.4 18 RP..10 0.750 0.197 0.024 0.396 RP..10 20 5 0.6 11 1.000 0.197 0.075 0.646 25 5 1.9 16 1.250 0.197 0.075 0.896 32 5 1.9 23 1.500 0.197 0.075 1.146 40 5 1.9 31 2.000 0.197 0.075 1.646 50 5 1.9 41 2.500 0.197 0.075 2.146 63 5 1.9 54 RP..12 1.250 0.236 0.094 0.817 RP..12 32 6 2.4 21 1.500 0.236 0.094 1.067 40 6 2.4 29 2.000 0.236 0.094 1.567 50 6 2.4 39 2.500 0.236 0.094 2.067 63 6 2.4 52 3.000 0.236 0.094 2.567 80 6 2.4 69 4.000 0.236 0.094 3.567 100 6 2.4 89 RP..16 1.500 0.315 0.134 0.909 RP..16 40 8 3.4 25 2.000 0.315 0.134 1.409 50 8 3.4 35 2.500 0.315 0.134 1.909 63 8 3.4 48 3.000 0.315 0.134 2.409 80 8 3.4 65 4.000 0.315 0.134 3.409 100 8 3.4 85 5.000 0.315 0.134 4.346 125 8 3.4 110 B 33 33 C/> o 33 T3 8 O CZ I- 33 O m = w & i in o c t o 33 z Q O CZ -H o > H K N Above value is based on the clearance of 0.039" between the tool and the workpiece. T Visit us online at Kyocera M197
