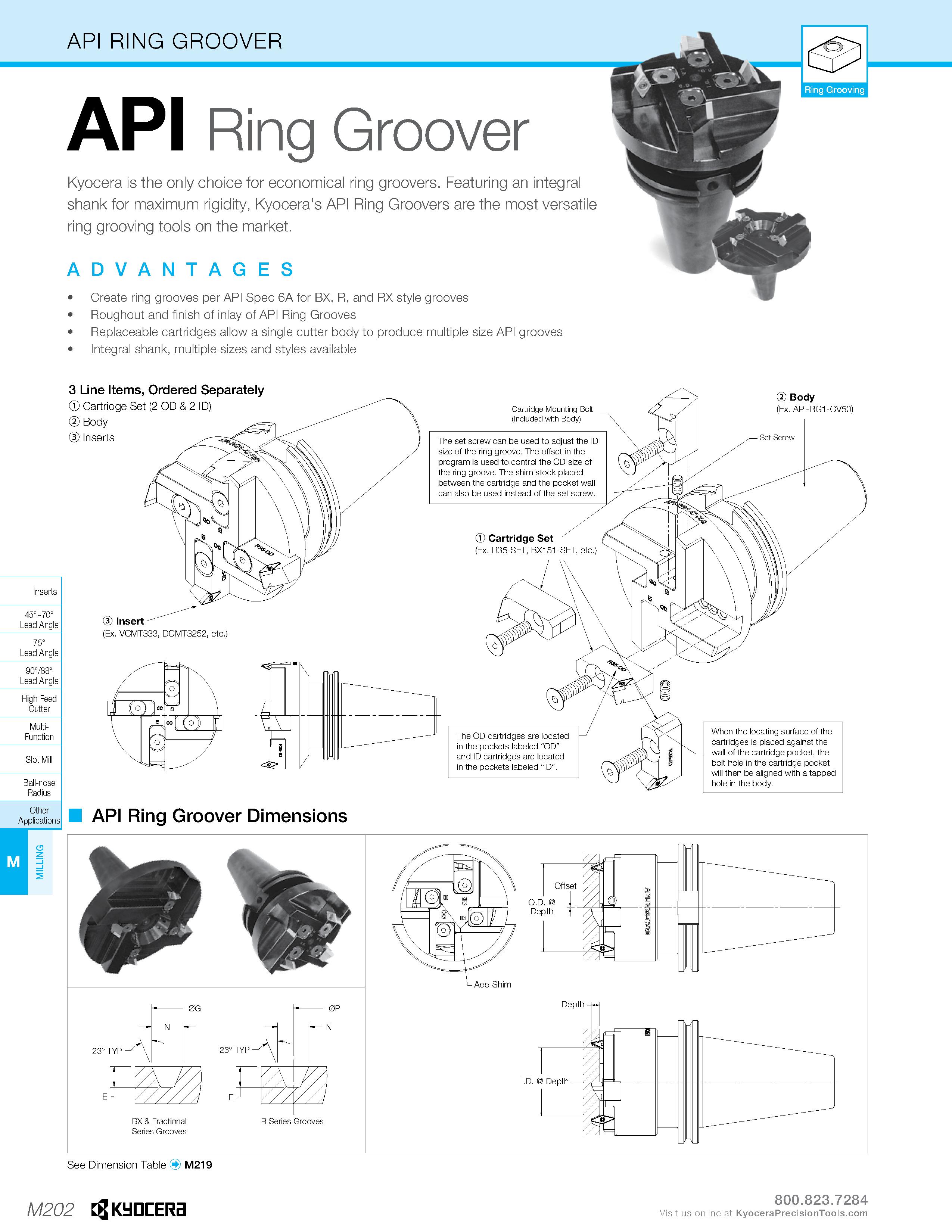

API RING GROOVER API Ring Groover Kyocera is the only choice for economical ring groovers. Featuring an integral shank for maximum rigidity, Kyocera's API Ring Groovers are the most versatile ring grooving tools on the market. ADVANTAGES Create ring grooves per API Spec 6A for BX, R, and RX style grooves Roughout and finish of inlay of API Ring Grooves Replaceable cartridges allow a single cutter body to produce multiple size API grooves Integral shank, multiple sizes and styles available 45" 70" Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function B all-nose Radius Other Applications API Ring Groover Dimensions BX & Fractional Series Grooves R Series Grooves O.D. Depth J Depth See Dimension Table 5>M219 The OD cartridges are located in the pockets labeled “OD” and ID cartridges are located in the pockets labeled “ID”. When the locating surface of the cartridges is placed against the wall of the cartridge pocket, the bolt hole in the cartridge pocket will then be aligned with a tapped hole in the body. 3 Line Items, Ordered Separately Cartridge Set (2 OD & 2 ID) Body Inserts Cartridge Mounting Bolt (Included with Body) The set screw can be used to adjust the ID size of the ring groove. The offset in the program is used to control the OD size of the ring groove. The shim stock placed between the cartridge and the pocket wall can also be used instead of the set screw. (D Body (Ex. API-RG1-CV50) Set Screw Cartridge Set (Ex. R35-SET, BX151 -SET, etc.) (3) Insert (Ex. VCMT333, DCMT3252, etc.; M202 Kyocera Visit us online at
