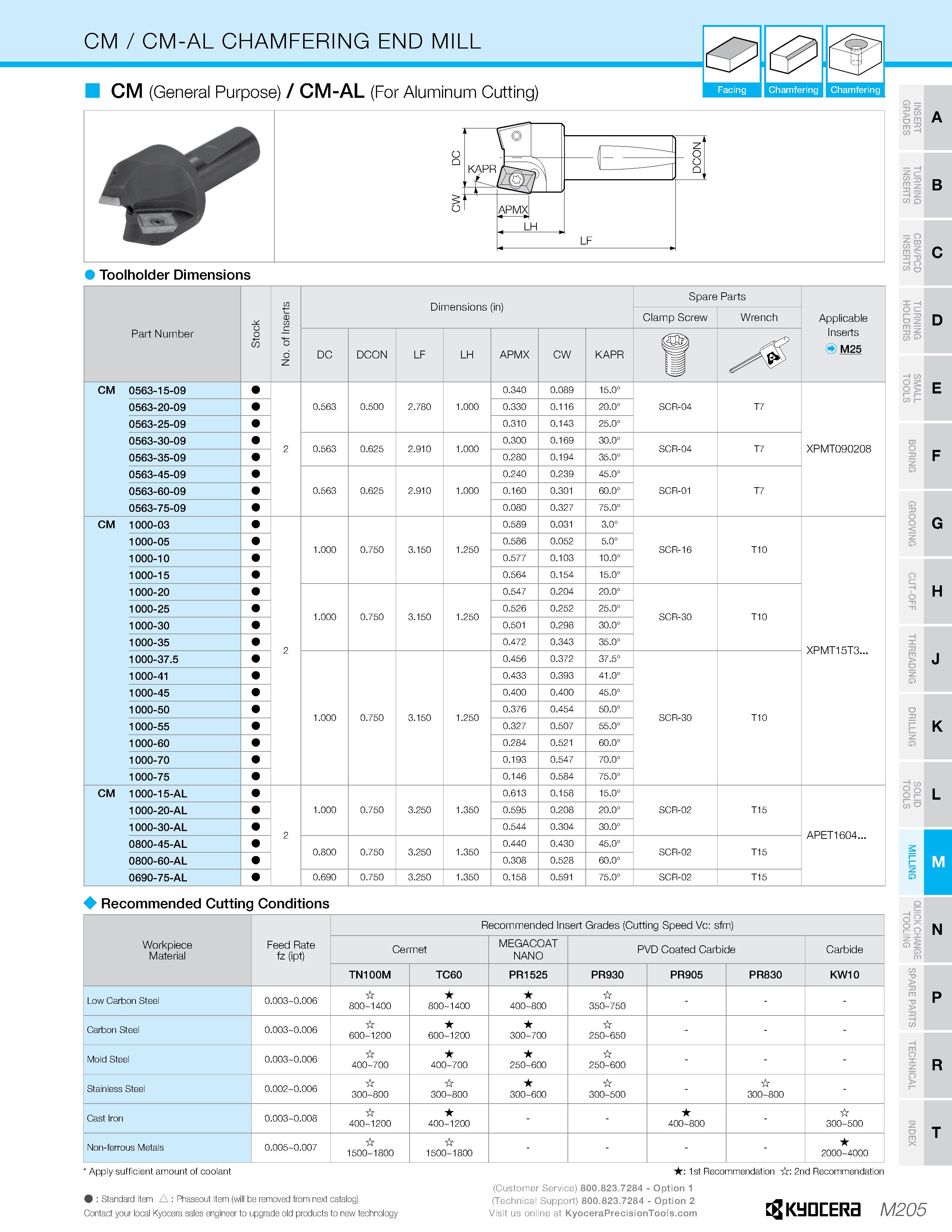

CM / CM-AL CHAMFERING END MILL CM (General Purpose) / CM-AL (For Aluminum Cutting) Facing I Chamfering I Chamfering Toolholder Dimensions Part Number Stock No. of Inserts Dimensions (in) Spare Parts Applicable Inserts M25 Clamp Screw Wrench DC DCON LF LH APMX CW KAPR u CM 0563-15-09 2 0.563 0.500 2.780 1.000 0.340 0.089 15.0° SCR-04 T7 XPMT090208 0563-20-09 0.330 0.116 20.0° 0563-25-09 0.310 0.143 25.0° 0563-30-09 0.563 0.625 2.910 1.000 0.300 0.169 30.0° SCR-04 T7 0563-35-09 0.280 0.194 35.0° 0563-45-09 0.563 0.625 2.910 1.000 0.240 0.239 45.0° SCR-01 T7 0563-60-09 0.160 0.301 60.0° 0563-75-09 0.080 0.327 75.0° CM 1000-03 2 1.000 0.750 3.150 1.250 0.589 0.031 3.0° SCR-16 T10 XPMT15T3... 1000-05 0.586 0.052 5.0° 1000-10 0.577 0.103 10.0° 1000-15 0.564 0.154 15.0° 1000-20 1.000 0.750 3.150 1.250 0.547 0.204 20.0° SCR-30 T10 1000-25 0.526 0.252 25.0° 1000-30 0.501 0.298 30.0° 1000-35 0.472 0.343 35.0° 1000-37.5 1.000 0.750 3.150 1.250 0.456 0.372 37.5° SCR-30 T10 1000-41 0.433 0.393 41.0° 1000-45 0.400 0.400 45.0° 1000-50 0.376 0.454 50.0° 1000-55 0.327 0.507 55.0° 1000-60 0.284 0.521 60.0° 1000-70 0.193 0.547 70.0° 1000-75 0.146 0.584 75.0° CM 1000-15-AL 2 1.000 0.750 3.250 1.350 0.613 0.158 15.0° SCR-02 T15 APET1604... 1000-20-AL 0.595 0.208 20.0° 1000-30-AL 0.544 0.304 30.0° 0800-45-AL 0.800 0.750 3.250 1.350 0.440 0.430 45.0° SCR-02 T15 0800-60-AL 0.308 0.528 60.0° 0690-75-AL 0.690 0.750 3.250 1.350 0.158 0.591 75.0° SCR-02 T15 Recommended Cutting Conditions Workpiece Material Feed Rate fz (ipt) Recommended Insert Grades (Cutting Speed Vc: sfm) Cermet MEGACOAT NANO PVD Coated Carbide Carbide TN100M TC60 PR1525 PR930 PR905 PR830 KW10 Low Carbon Steel 0.003 0.006 800 1400 800 1400 400 800 350 750 - Carbon Steel 0.003 0.006 600 1200 600 1200 300 700 250 650 - Mold Steel 0.003 0.006 400 700 400 700 250 600 250 600 - Stainless Steel 0.002 0.006 300 800 300 800 300 600 300 500 300 800 - Cast Iron 0.003 0.008 400 1200 400 1200 400 800 300 500 Non-ferrous Metals 0.005 0.007 1500 1800 1500 1800 2000 4000 DO "O > g N Q A B C D O s O A o g N 0) E G H K N P R T Apply sufficient amount of coolant : 1st Recommendation : 2nd Recommendation F J L M : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera M205
