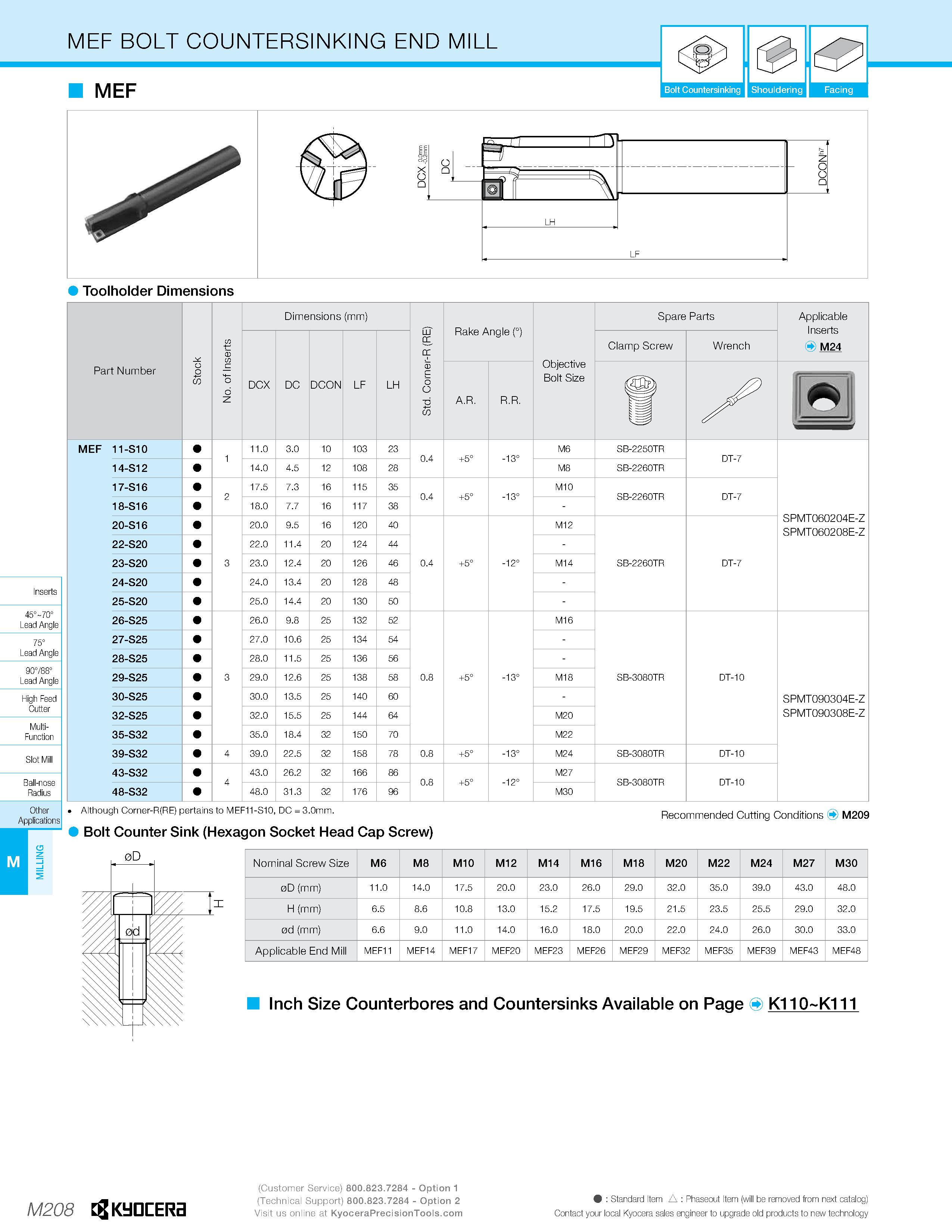

MEF BOLT COUNTERSINKING END MILL & MEF Bolt Countersinking Shouldering Facing Toolholder Dimensions Part Number Stock No. of Inserts Dimensions (mm) Std. Corner-R (RE) Rake Angle (°) Objective Bolt Size Spare Parts Applicable Inserts M24 DCX DC DCON LF LH Clamp Screw Wrench A.R. R.R. u / MEF 11-S10 1 11.0 3.0 10 103 23 0.4 +5° -13° M6 SB-2250TR DT-7 S PMT060204E-Z S PMT060208E-Z 14-S12 14.0 4.5 12 108 28 M8 SB-2260TR 17-S16 2 17.5 7.3 16 115 35 0.4 +5° -13° M10 SB-2260TR DT-7 18-S16 18.0 7.7 16 117 38 - 20-S16 3 20.0 9.5 16 120 40 0.4 +5° -12° M12 SB-2260TR DT-7 22-S20 22.0 11.4 20 124 44 - 23-S20 23.0 12.4 20 126 46 M14 24-S20 24.0 13.4 20 128 48 - 25-S20 25.0 14.4 20 130 50 - 26-S25 3 26.0 9.8 25 132 52 0.8 +5° -13° M16 SB-3080TR DT-10 SPMT090304E-Z SPMT090308E-Z 27-S25 27.0 10.6 25 134 54 - 28-S25 28.0 11.5 25 136 56 - 29-S25 29.0 12.6 25 138 58 M18 30-S25 30.0 13.5 25 140 60 - 32-S25 32.0 15.5 25 144 64 M20 35-S32 35.0 18.4 32 150 70 M22 39-S32 4 39.0 22.5 32 158 78 0.8 +5° -13° M24 SB-3080TR DT-10 43-S32 4 43.0 26.2 32 166 86 0.8 +5° -12° M27 SB-3080TR DT-10 48-S32 48.0 31.3 32 176 96 M30 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function B all-nose Radius Other Applications Although Corner-R(RE) pertains to MEF11-S10, DC = 3.0mm. Bolt Counter Sink (Hexagon Socket Head Cap Screw) Recommended Cutting Conditions M209 Nominal Screw Size M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 oD (mm) 11.0 14.0 17.5 20.0 23.0 26.0 29.0 32.0 35.0 39.0 43.0 48.0 H (mm) 6.5 8.6 10.8 13.0 15.2 17.5 19.5 21.5 23.5 25.5 29.0 32.0 od (mm) 6.6 9.0 11.0 14.0 16.0 18.0 20.0 22.0 24.0 26.0 30.0 33.0 Applicable End Mill MEF11 MEF14 MEF17 MEF20 MEF23 MEF26 MEF29 MEF32 MEF35 MEF39 MEF43 MEF48 Inch Size Counterbores and Countersinks Available on Page > K110 K111 M208 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
