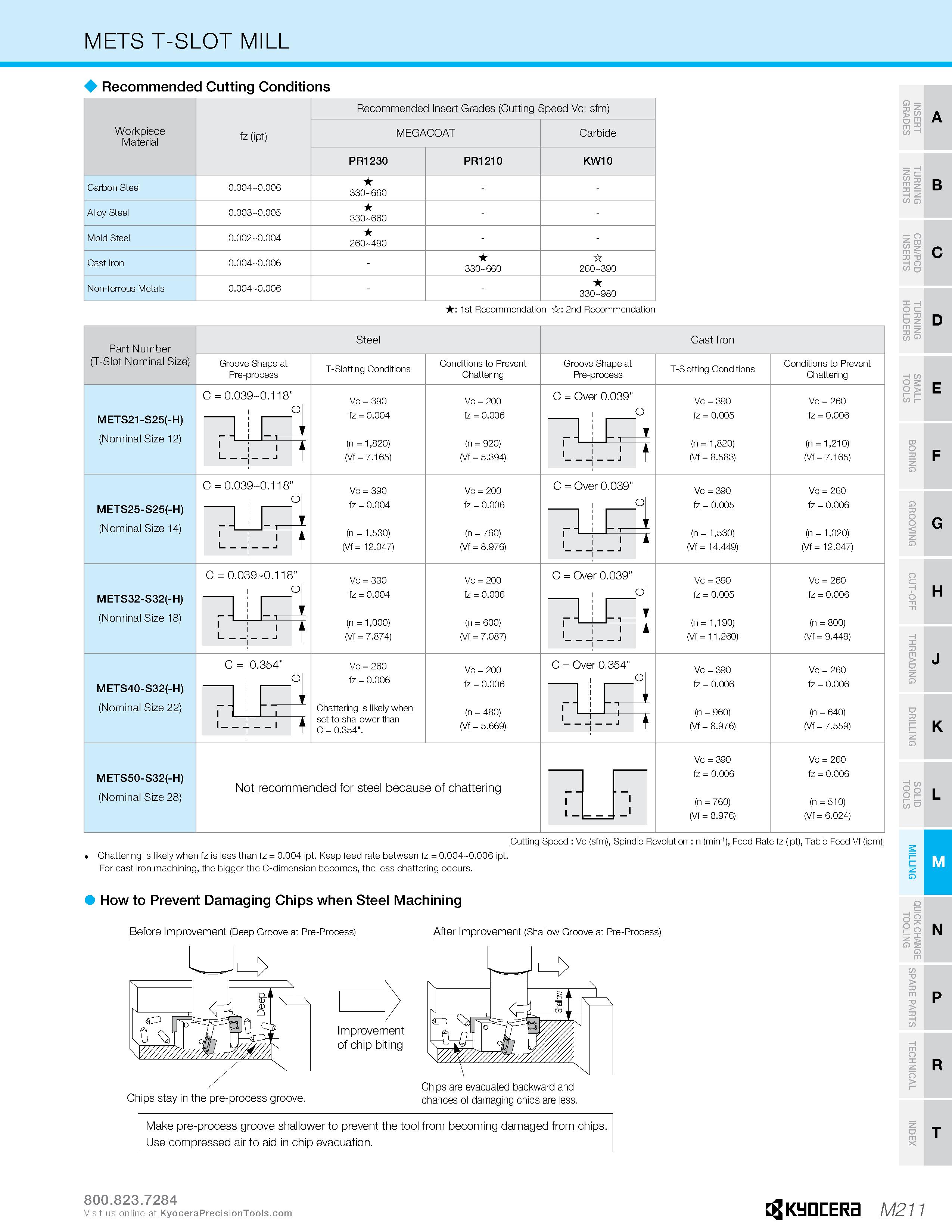

METS T-SLOT MILL Recommended Cutting Conditions Recommended Insert Grades (Cutting Speed Vc: sfm) Workpiece Material fz (ipt) MEGACOAT Carbide PR1230 PR1210 KW10 Carbon Steel 0.004-0.006 330-660 - - Alloy Steel 0.003-0.005 330-660 - - Mold Steel 0.002-0.004 260-490 - - Cast Iron 0.004-0.006 - 330-660 260-390 Non-ferrous Metals 0.004-0.006 - - 330-980 : 1st Recommendation : 2nd Recommendation o > £ o m m 2 c/) m 13 3 B C/> Q O cz I- 33 O Part Number T-Slot Nominal Size) Groove Shape at Pre-process Steel T-Siotting Conditions Conditions to Prevent Chattering Groove Shape at Pre-process Cast Iron T-Slotting Conditions Conditions to Prevent Chattering o 33 z Q C = 0.039-0.118” METS21-S25 -H) (Nominal Size 12) I Vc = 390 fz = 0.004 (n = 1,820) (Vf = 7.165) Vc = 200 fz = 0.006 (n = 920) (Vf = 5.394) C = Over 0.039” O Vc = 390 fz = 0.005 (n = 1,820) (Vf = 8.583) Vc = 260 fz = 0.006 (n = 1,210) (Vf = 7.165) C = 0.039-0.118” METS25-S25 -H) (Nominal Size 14) O Vc = 390 fz = 0.004 (n = 1,530) (Vf = 12.047) Vc = 200 fz = 0.006 (n = 760) (Vf = 8.976) C = Over 0.039” O Vc = 390 fz = 0.005 (n = 1,530) (Vf = 14.449) Vc = 260 fz = 0.006 (n = 1,020) (Vf = 12.047) 0 = 0.039-0.118’ METS32-S32 -H) (Nominal Size 18) O Vc = 330 fz = 0.004 (n = 1,000) (Vf = 7.874) Vc = 200 fz = 0.006 (n = 600) (Vf = 7.087) C = Over 0.039” O Vc = 390 fz = 0.005 (n = 1,190) (Vf = 11.260) Vc = 260 fz = 0.006 (n = 800) (Vf = 9.449) o cz -H o > H 0= 0.354” METS40-S32 -H) (Nominal Size 22) Vc = 260 fz = 0.006 Chattering is likely when set to shallower than C = 0.354". Vc = 200 fz = 0.006 (n = 480) (Vf = 5.669) C = Over 0.354” Vc = 390 fz = 0.006 (n = 960) (Vf = 8.976) Vc = 260 fz = 0.006 (n = 640) (Vf = 7.559) K METS50-S32 -H) (Nominal Size 28) Not recommended for steel because of chattering Vc = 390 fz = 0.006 (n = 760) (Vf = 8.976) Vc = 260 fz = 0.006 (n = 510) (Vf = 6.024) Cutting Speed : Vc (sfm), Spindle Revolution : n (min-1), Feed Rate fz (ipt), Table Feed Vf (ipm) Chattering is likely when fz is less than fz - 0.004 ipt. Keep feed rate between fz - 0.004-0.006 ipt. For cast iron machining, the bigger the C-dimension becomes, the less chattering occurs. How to Prevent Damaging Chips when Steel Machining After Improvement (Shallow Groove at Pre-Process) Chips stay in the pre-process groove. Chips are evacuated backward and chances of damaging chips are less. Make pre-process groove shallower to prevent the tool from becoming damaged from chips. Use compressed air to aid in chip evacuation. N Visit us online at Kyocera M211
