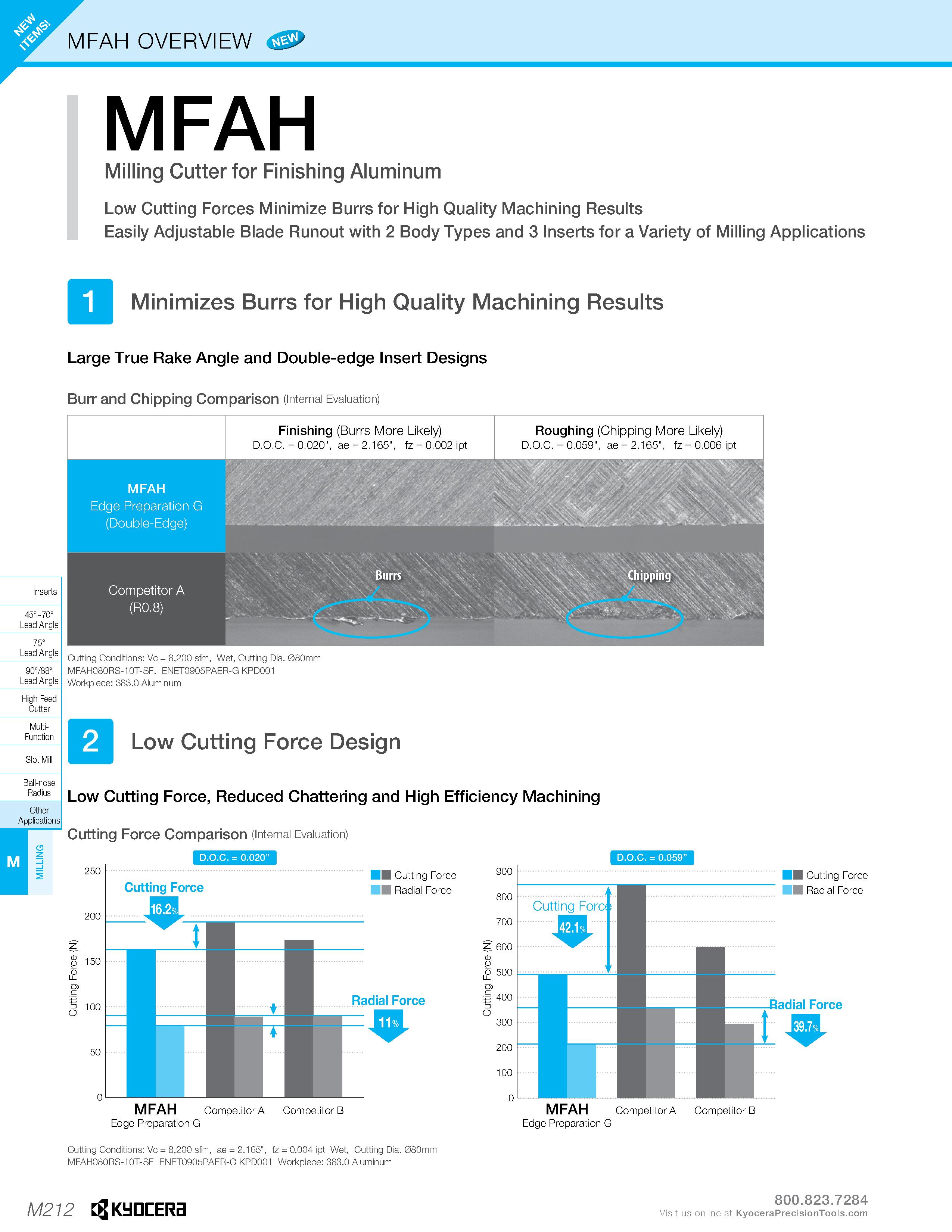

M MFAH Milling Cutter for Finishing Aluminum Low Cutting Forces Minimize Burrs for High Quality Machining Results Easily Adjustable Blade Runout with 2 Body Types and 3 Inserts for a Variety of Milling Applications Minimizes Burrs for High Quality Machining Results Large True Rake Angle and Double-edge Insert Designs Burr and Chipping Comparison (internal Evaluation) 45°-70° Lead Angle 75° Lead Angle 90788° Lead Angle High Feed Cutter Multi- Function B all-nose Radius Other Applications Cutting Conditions: Vc = 8,200 sfm, Wet, Cutting Dia. 080mm MFAH080RS-10T-SF, ENET0905PAER-G KPD001 Workpiece: 383.0 Aluminum Low Cutting Force Design Low Cutting Force, Reduced Chattering and High Efficiency Machining Cutting Force Comparison (internal Evaluation) D.O.C. = 0.020” D.O.C. = 0.059” Finishing (Burrs More Likely) D.O.C. = 0.020", ae = 2.165", fz = 0.002 ipt Roughing (Chipping More Likely) D.O.C. = 0.059", ae = 2.165", fz = 0.006 ipt MFAH Edge Preparation G (Double-Edge) "y ' ' / -, \ , / V ' A ' /’ V ’ '’ - ;/' ’ Ss ' ’ /j ’ > -s , YjS :’ V'' ft r'K Competitor A (R0.8) Burrs ': X , : ' v S . \n,'-V-v i x Chipping ' ' ' Y I Cutting Force I Radial Force ladial Force MFAH Competitor A Competitor B Edge Preparation G MFAH Competitor A Competitor B Edge Preparation G Cutting Conditions: Vc = 8,200 sfm, ae = 2.165", fz = 0.004 ipt Wet, Cutting Dia. 080mm MFAH080RS-10T-SF ENET0905PAER-G KPD001 Workpiece: 383.0 Aluminum M212 Kyocera Visit us online at
