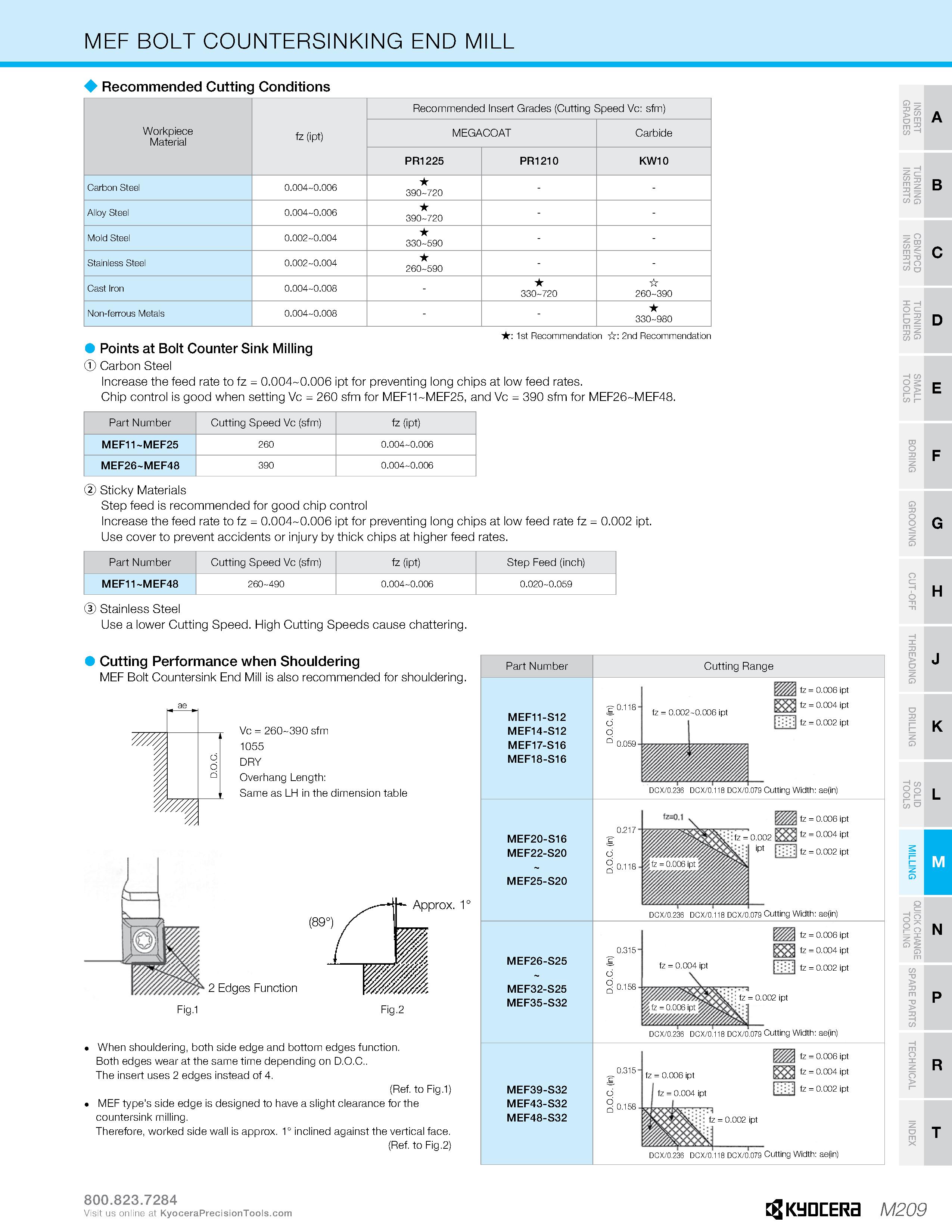

MEF BOLT COUNTERSINKING END MILL Recommended Cutting Conditions Recommended Insert Grades (Cutting Speed Vc: sfm) Workpiece Material fz (ipt) MEGACOAT Carbide PR1225 PR1210 KW10 Carbon Steel 0.004-0.006 390-720 - - Alloy Steel 0.004-0.006 390-720 - - Mold Steel 0.002-0.004 330-590 - - Stainless Steel 0.002-0.004 260-590 - - Cast Iron 0.004-0.008 - 330-720 260-390 Non-ferrous Metals 0.004-0.008 - - 330-980 : 1st Recommendation : 2nd Recommendation Points at Bolt Counter Sink Milling Carbon Steel Increase the feed rate to fz = 0.004-0.006 ipt for preventing long chips at low feed rates. Chip control is good when setting Vc = 260 sfm for MEF11-MEF25, and Vc = 390 sfm for MEF26-MEF48. Part Number Cutting Speed Vc (sfm) fz (ipt) MEF11-MEF25 260 0.004-0.006 MEF26-MEF48 390 0.004-0.006 ( ) Sticky Materials Step feed is recommended for good chip control Increase the feed rate to fz = 0.004-0.006 ipt for preventing long chips at low feed rate fz = 0.002 ipt. Use cover to prevent accidents or injury by thick chips at higher feed rates. Part Number Cutting Speed Vc (sfm) fz (ipt) Step Feed (inch) MEF11-MEF48 260-490 0.004-0.006 0.020-0.059 (3.) Stainless Steel Use a lower Cutting Speed. High Cutting Speeds cause chattering. a> Tl > o g m 2 c/> “ C/> O Tl U S8 O cz I- Tl O m = W o 33 z Q o cz -H o H Cutting Performance when Shouldering MEF Bolt Countersink End Mill is also recommended for shouldering. Vc = 260-390 sfm 1055 DRY D Overhang Length: u Same as LH in the dimension table 2 Edges Function Fig.1 When shouldering, both side edge and bottom edges function. Both edges wear at the same time depending on D.O.C.. The insert uses 2 edges instead of 4. (Ref. to Fig.1) MEF type's side edge is designed to have a slight clearance for the countersink milling. Therefore, worked side wall is approx. 1° inclined against the vertical face. (Ref. to Fig.2) Part Number MEF11-S12 MEF14-S12 MEF17-S16 MEF18-S16 MEF20-S16 MEF22-S20 MEF25-S20 MEF26-S25 MEF32-S25 MEF35-S32 MEF39-S32 MEF43-S32 MEF48-S32 Cutting Range fz= 0.006 ipt fz = 0.004 ipt :;:;:) fz = 0.002 ipt DCX/0.236 DCX/0.118 DCX/0.079 Cutting Width: ae(in) fz = 0.006 ipt 0.002 fz = °-004 'P1 tfSlj fz = 0.002 ipt DCX/0.236 DCX/0.118 DCX/0.079 Cutting Width: ae(in) fz = 0.006 ipt fz = 0.004 ipt fz = 0.002 ipt DCX/0.236 DCX/0.118 DCX/0.079 Cutting Width: ae(in) fz = 0.006 ipt fz = 0 004 'P1 t:;:; fz = 0.002 ipt DCX/0.236 DCX/0.118 DCX/0.079 Cutting Width: ae(in) 0.315- fz = 0.006 ipt o I fz = 0.004 ipt : fz = 0.002 ipt > K N KMnrFRrl MPDQ Visitusoniineat IXJULLIXU /V7 L/Cy
