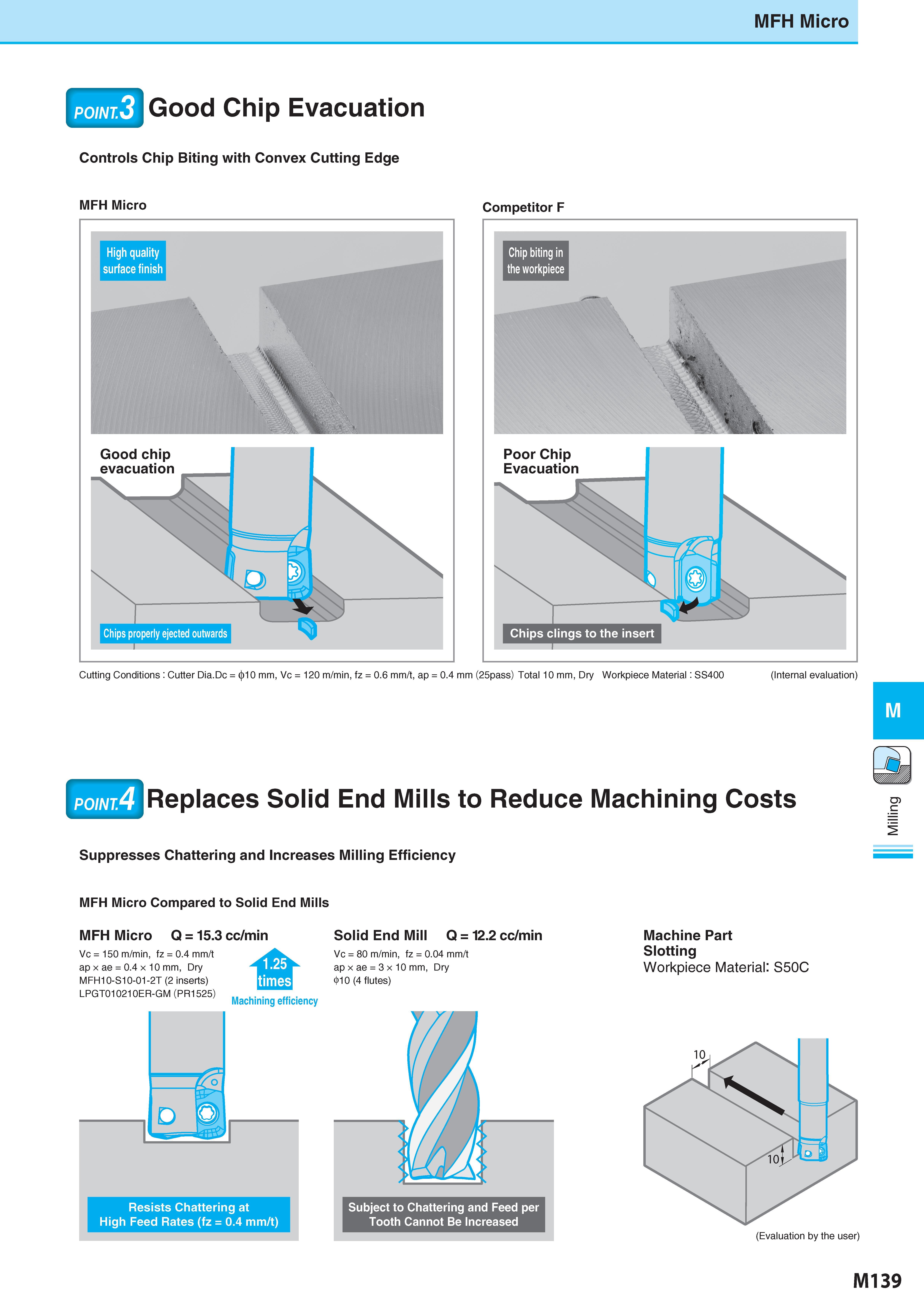

MFH Micro Good Chip Evacuation Controls Chip Biting with Convex Cutting Edge Competitor F Chips clings to the insert Cutting Conditions : Cutter Dia.Dc = 10 mm, Vc = 120 m/min, fz = 0.6 mm/t, ap = 0.4 mm (25pass) Total 10 mm, Dry Workpiece Material: SS400 (Internal evaluation) Replaces Solid End Mills to Reduce Machining Costs Suppresses Chattering and Increases Milling Efficiency MFH Micro Compared to Solid End Mills MFH Micro Q = 15.3 cc/min Solid End Mill Q = 12.2 cc/min Vc = 150 m/min, fz = 0.4 mm/t ap x ae = 0.4 x 10 mm, Dry MFH10-S10-01-2T (2 inserts) LPGT010210ER-GM (PR1525) times Machining efficiency Vc = 80 m/min, fz = 0.04 mm/t ap x ae = 3 x 10 mm, Dry 10 (4 flutes) Resists Chattering at High Feed Rates (fz = 0.4 mm/t) Subject to Chattering and Feed per Tooth Cannot Be Increased Machine Part Slotting Workpiece Materia: S50C M139 Milling
