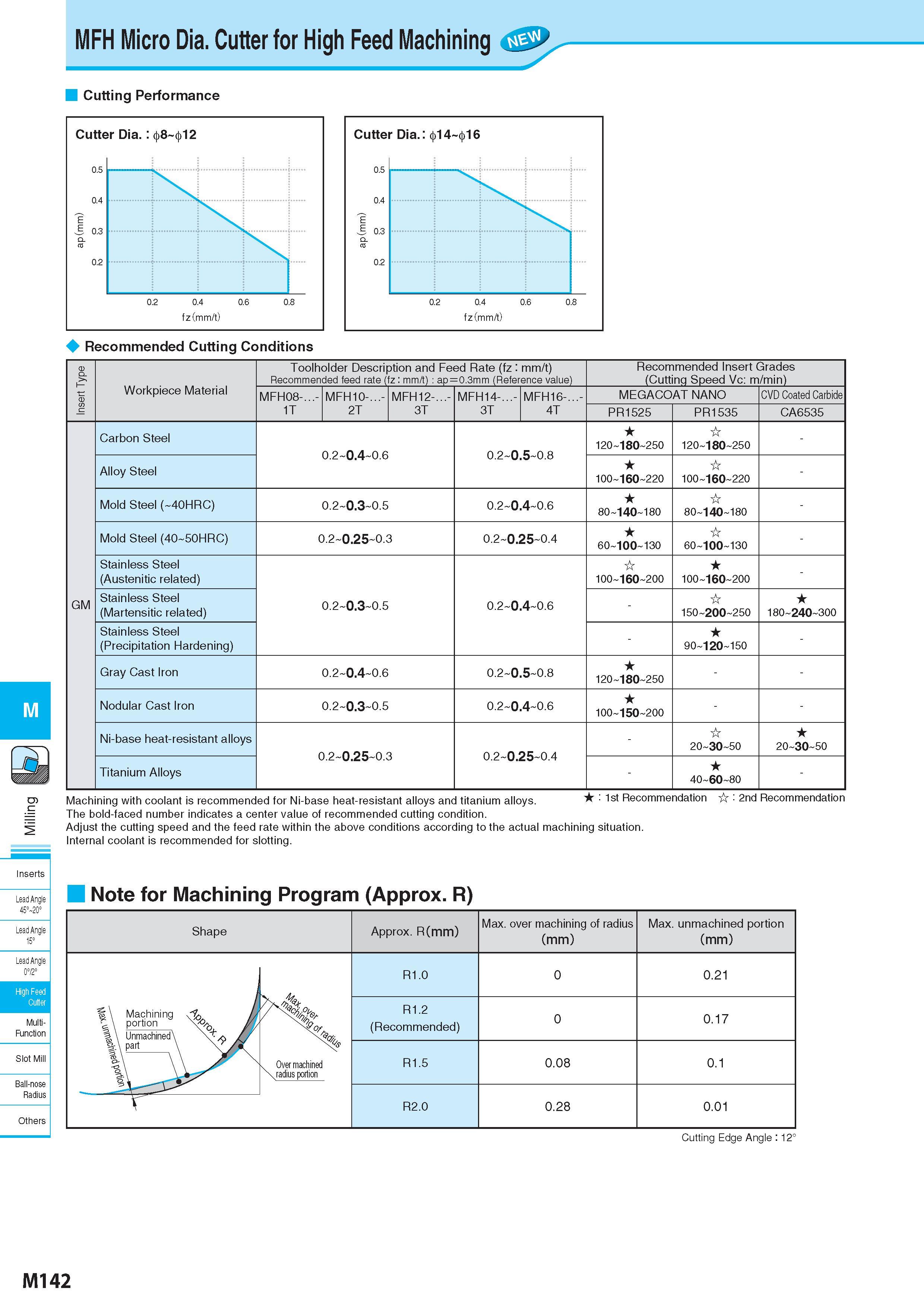

892 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.M142

Каталог KYOCERA 2017 Инструмент режущий Стр. M142 0892 Lab2u

M Inserts Lead Angle 45°'20c Lead Angle 15° ' Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius MFH Micro Dia. Cutter for High Feed Machining Cutting Performance Cutter Dia.: ( )8 i )12 fzCmm/t) Cutter Dia.: ( 14 16 fz(mm/t) Recommended Cutting Conditions Рекомендованные режимы резания на станках Insert Type Workpiece Material Обрабатываемый материал Toolholder Description Обозначение and Feed Rate (fz : mm/t) Recommended feed rate (fz: mm/t) : ap=0.3mm (Reference value) Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) MFH08-...- MFH10-...- MFH12-...-1T 2T 3T MFH14-...- MFH16-...-3T 4T MEGACOAT NANO CVD Coated Carbide PR1525 PR1535 CA6535 GM Carbon Steel 0.2 0.4 0.6 0.2 0.5 0.8 120 180 250 120 180 250 - Alloy Steel 100 160 220 100 160 220 - Mold Steel ( 40HRC) 0.2 0.3 0.5 0.2 0.4 0.6 80 140 180 80 140 180 - Mold Steel (40 50HRC) 0.2 0.25 0.3 0.2 0.25 0.4 60 100 130 60 100 130 - Stainless Steel (Austenitic related) 0.2 0.3 0.5 0.2 0.4 0.6 100 160 200 100 160 200 - Stainless Steel (Martensitic related) - 150 200 250 180 240 300 Stainless Steel (Precipitation Hardening) - 90 120 150 - Gray Cast Iron 0.2 0.4 0.6 0.2 0.5 0.8 120 180 250 Nodular Cast Iron 0.2 0.3 0.5 0.2 0.4 0.6 100 150 200 Ni-base heat-resistant alloys 0.2 0.25 0.3 0.2 0.25 0.4 - 20 30 50 20 30 50 Titanium Alloys - 40 60 80 - Machining with coolant is recommended for Ni-base heat-resistant alloys and titanium alloys. 1st Recommendation 2nd Recommendation The bold-faced number indicates a center value of recommended cutting condition. Adjust the cutting speed and the feed rate within the above conditions according to the actual machining situation. Internal coolant is recommended for slotting. Note for Machining Program (Approx. R) Shape Approx. R(mm) Max. over machining of radius (mm) Max. unmachined portion (mm) %\ Machining / \ portion /// %\ Unmachined \ // g-\ part \ \ /C %\ \ \ o\ \ \ \ SjL - Over machined \ radius portion R1.0 0 0.21 R1.2 (Recommended) 0 0.17 R1.5 0.08 0.1 R2.0 0.28 0.01 Cutting Edge Angle : 12° M142
