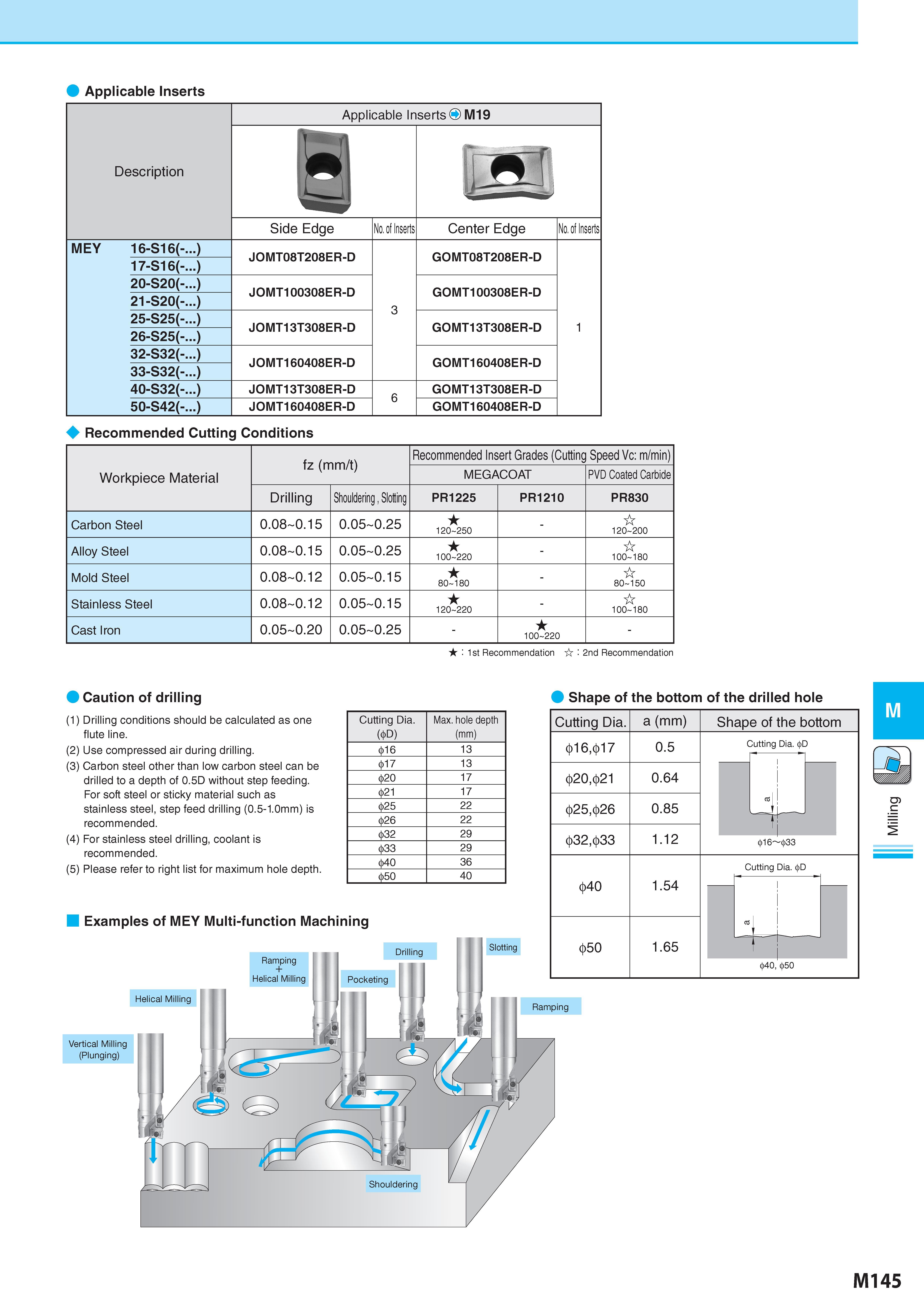

Applicable Inserts Description Обозначение MEY 16-S16(-. 17-S16(-. 20-S20(-. 21-S20(-. 25-S25(-. 26-S25(-. 32-S32(-. 33-S32(-. 40-S32(-. 50-S42(-. Applicable Inserts M19 Side Edge JOMT08T208ER-D JOMT100308ER-D JOMT13T308ER-D JOMT160408ER-D JOMT13T308ER-D JOMT160408ER-D No. of Inserts Center Edge No. of Inserts GOMT08T208ER-D GOMT100308ER-D GOMT13T308ER-D GOMT160408ER-D GOMT13T308ER-D GOMT160408ER-D Recommended Cutting Conditions Рекомендованные режимы резания на станках fz (mm/t) Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Workpiece Material Обрабатываемый материал MEGACOAT PVD Coated Carbide Drilling Shouldering , Slotting PR1225 PR1210 PR830 Carbon Steel 0.08 0.15 0.05 0.25 120 250 - 120 200 Alloy Steel 0.08 0.15 0.05 0.25 100 220 - 100 180 Mold Steel 0.08 0.12 0.05 0.15 80 180 - 80 150 Stainless Steel 0.08 0.12 0.05 0.15 120 220 - 100 180 Cast Iron 0.05 0.20 0.05 0.25 - 100 220 - : 1st Recommendation : 2nd Recommendation Caution of drilling Shape of the bottom of the drilled hole (1) Drilling conditions should be calculated as one flute line. (2) Use compressed air during drilling. (3) Carbon steel other than low carbon steel can be drilled to a depth of 0.5D without step feeding. For soft steel or sticky material such as stainless steel, step feed drilling (0.5-1.0mm) is recommended. (4) For stainless steel drilling, coolant is recommended. (5) Please refer to right list for maximum hole depth. Cutting Dia. Max. hole depth (>D) (mm) >16 13 >17 13 >20 17 >21 17 >25 22 >26 22 >32 29 >33 29 >40 36 >50 40 Examples of MEY Multi-function Machining Cutting Dia. a (mm) Shape of the bottom >16,>17 0.5 C Cutting Dia. 0 l 4- >20,>21 0.64 >25,>26 0.85 >32, >33 1.12 1 16 33 >40 1.54 Cutting Dia. D 1 1 40, 50 >50 1.65 3 1 6 M145 Milling
