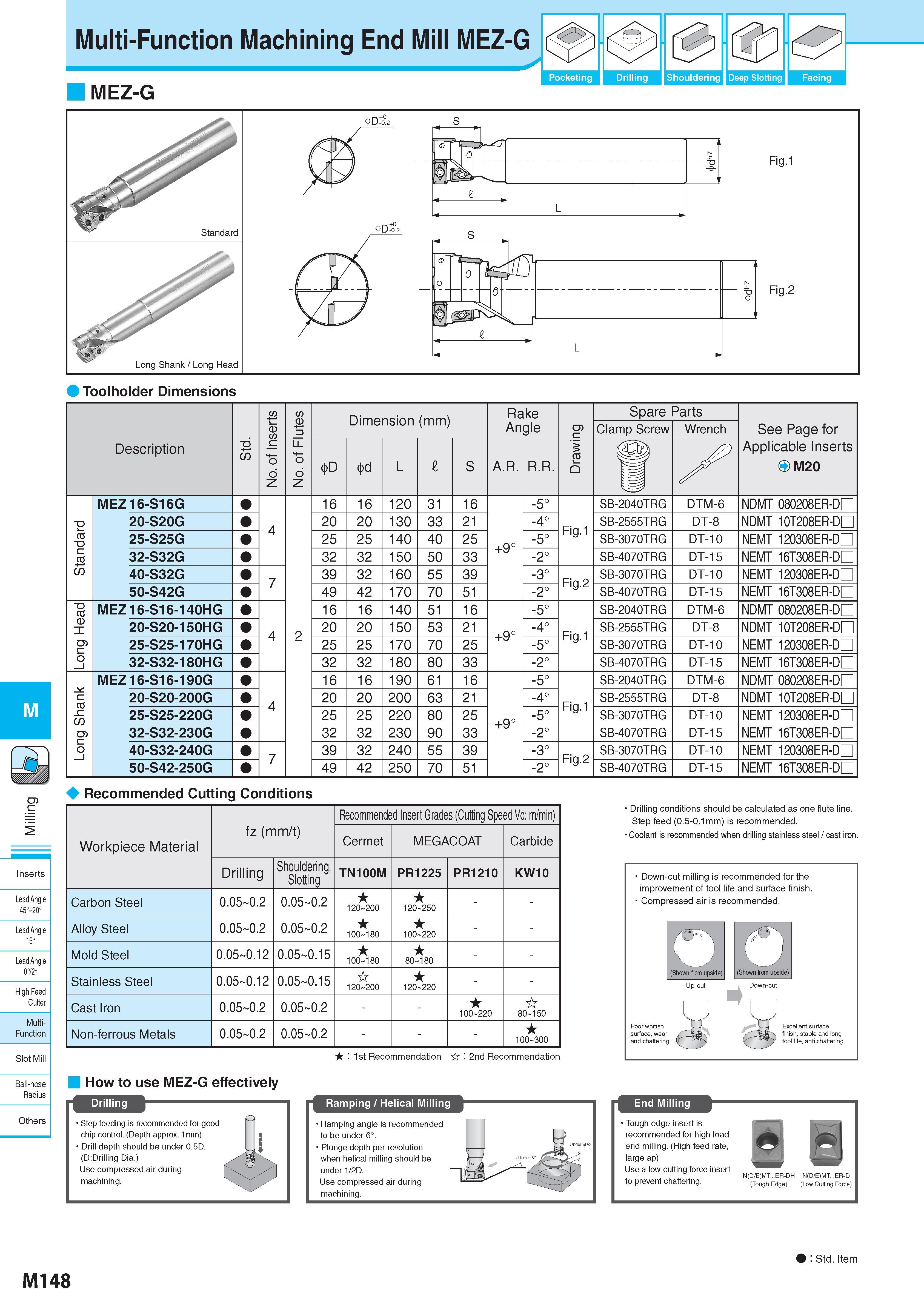

Inserts Lead Angle 45° 20° 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others Multi-Function Machining End Mill MEZ-G MEZ-G 0 £ 3 Pocketing Drilling Shouldering Deep Slotting Facing or i 1 0 N -O , i , L Fig.1 to+0°2 Fig.2 Toolholder Dimensions Description Обозначение T3 No. of Inserts No. of Flutes Dimension (mm) Размеры в мм Rake Angle Drawing Spare Parts See Page for Applicable Inserts 0M20 Clamp Screw Wrench D d L I S A.R. R.R. u Standard MEZ16-S16G 4 2 16 16 120 31 16 + CD o -5° Fig.1 SB-2040TRG DTM-6 NDMT 080208ER-D 20-S20G 20 20 130 33 21 -4° SB-2555TRG DT-8 NDMT 10T208ER-D 25-S25G 25 25 140 40 25 -5° SB-3070TRG DT-10 NEMT 120308ER-D 32-S32G 32 32 150 50 33 -2° SB-4070TRG DT-15 NEMT 16T308ER-D 40-S32G 7 39 32 160 55 39 -3° Fig.2 SB-3070TRG DT-10 NEMT 120308ER-D 50-S42G 49 42 170 70 51 -2° SB-4070TRG DT-15 NEMT 16T308ER-D Long Head MEZ16-S16-140HG 4 16 16 140 51 16 + CD o -5° Fig.1 SB-2040TRG DTM-6 NDMT 080208ER-D 20-S20-150HG 20 20 150 53 21 -4° SB-2555TRG DT-8 NDMT 10T208ER-D 25-S25-170HG 25 25 170 70 25 -5° SB-3070TRG DT-10 NEMT 120308ER-D 32-S32-180HG 32 32 180 80 33 -2° SB-4070TRG DT-15 NEMT 16T308ER-D Long Shank MEZ16-S16-190G 4 16 16 190 61 16 + CD o -5° Fig.1 SB-2040TRG DTM-6 NDMT 080208ER-D 20-S20-200G 20 20 200 63 21 -4° SB-2555TRG DT-8 NDMT 10T208ER-D 25-S25-220G 25 25 220 80 25 -5° SB-3070TRG DT-10 NEMT 120308ER-D 32-S32-230G 32 32 230 90 33 -2° SB-4070TRG DT-15 NEMT 16T308ER-D 40-S32-240G 7 39 32 240 55 39 -3° Fig.2 SB-3070TRG DT-10 NEMT 120308ER-D 50-S42-250G 49 42 250 70 51 -2° SB-4070TRG DT-15 NEMT 16T308ER-D Recommended Cutting Conditions Рекомендованные режимы резания на станках Workpiece Material Обрабатываемый материал fz (mm/t) Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Cermet MEGACOAT Carbide Drilling Shouldering, Slotting TN100M PR1225 PR1210 KW10 Carbon Steel 0.05 0.2 0.05 0.2 120 200 120 250 Alloy Steel 0.05 0.2 0.05 0.2 100 180 100 220 Mold Steel 0.05 0.12 0.05 0.15 100 180 80 180 Stainless Steel 0.05 0.12 0.05 0.15 120 200 120 220 Cast Iron 0.05 0.2 0.05 0.2 100 220 80 150 Non-ferrous Metals 0.05 0.2 0.05 0.2 - 100 300 Drilling conditions should be calculated as one flute line. Step feed (0.5-0.1mm) is recommended. Coolant is recommended when drilling stainless steel / cast iron. : 1st Recommendation : 2nd Recommendation How to use MEZ-G effectively Step feeding is recommended for good chip control. (Depth approx. 1mm) Drill depth should be under 0.5D. (D:Drilling Dia.) Use compressed air during machining. Ramping angle is recommended to be under 6°. Plunge depth per revolution when helical milling should be under 1/2D. Use compressed air during machining. jEndMliiing Tough edge insert is recommended for high load end milling. (High feed rate, large ap) Use a low cutting force insert to prevent chattering. N(D/E)MT...ER-DH N(D/E)MT...ER-D (Tough Edge) (Low Cutting Force) S S L M148 : Std. Item
