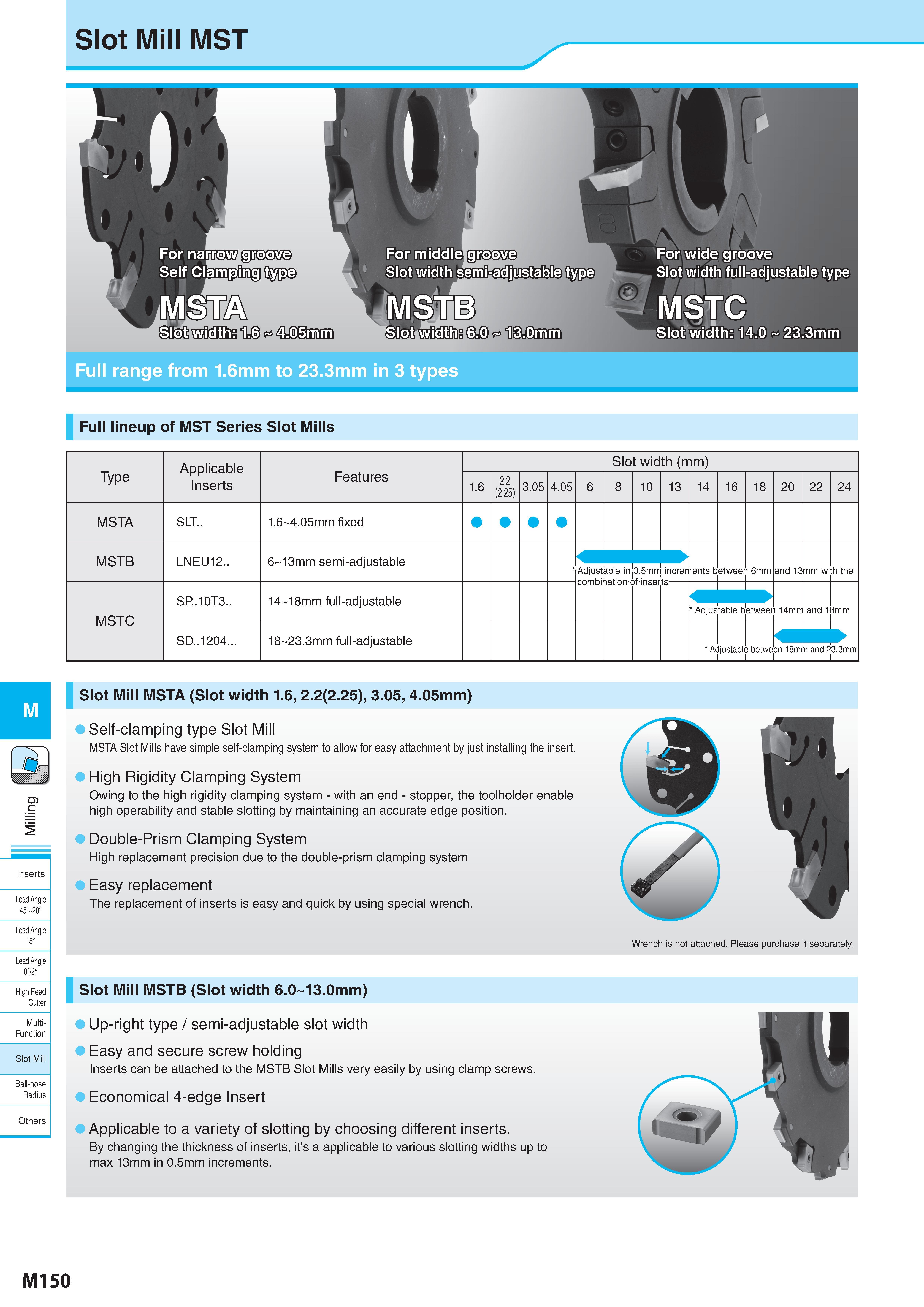

M Inserts Lead Angle 45° 20° Lead Angle 15° Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others Slot Mill MST 6.0 13.0mm For wide groove Slot width full-adjustable type C width: 14.0 23.3mm Full range from 1.6mm to 23.3mm in 3 types Full lineup of MST Series Slot Mills Type Applicable Inserts Features Slot width (mm) 1.6 2.2 (2.25) 3.05 4.05 6 8 10 13 14 16 18 20 22 24 MSTA SLT.. 1.6 4.05mm fixed MSTB LNEU12.. 6 13mm semi-adjustable Adjust. combii able in nation < 0.5mm Df inser i incren nents b etweer i 6mm and 13 mm wi th the MSTC SP..10T3.. 14 18mm full-adjustable I Adjus 'table b etweer i 14mm i and 1 8mm SD..1204... 18 23.3mm full-adjustable A( jjustabk 1 5 betwe en 18mm and 23.3mm 1 1 1 Slot Mill MSTA (Slot width 1.6, 2.2(2.25), 3.05, 4.05mm) Self-clamping type Slot Mill MSTA Slot Mills have simple self-clamping system to allow for easy attachment by just installing the insert High Rigidity Clamping System Owing to the high rigidity clamping system - with an end - stopper, the toolholder enable high operability and stable slotting by maintaining an accurate edge position. Double-Prism Clamping System High replacement precision due to the double-prism clamping system Easy replacement The replacement of inserts is easy and quick by using special wrench. Wrench is not attached. Please purchase it separately. Slot Mill MSTB (Slot width 6.0 13.0mm) Up-right type / semi-adjustable slot width Easy and secure screw holding Inserts can be attached to the MSTB Slot Mills very easily by using clamp screws. Economical 4-edge Insert Applicable to a variety of slotting by choosing different inserts. By changing the thickness of inserts, it’s a applicable to various slotting widths up to max 13mm in 0.5mm increments. M150
