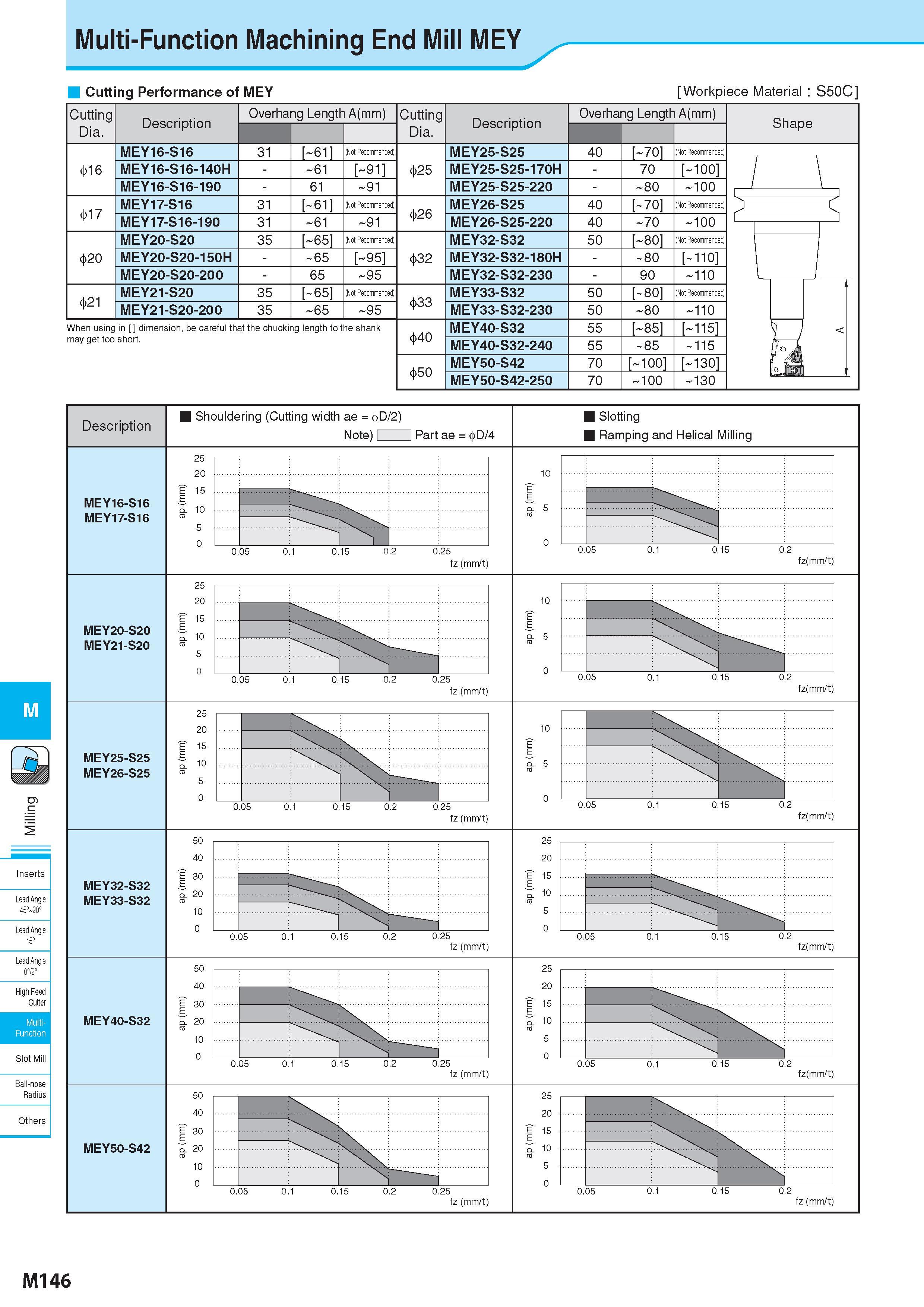

M Inserts Lead Angle 45°'20c Lead Angle 15° ' Lead Angle 0°/2°V High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Multi-Function Machining End Mill MEY Cutting Performance of MEY Workpiece Material Обрабатываемый материал : S50C Cutting Dia. Description Обозначение Overhang Length A(mm) Cutting Dia. Description Обозначение Overhang Length A(mm) Shape 16 MEY16-S16 31 61 (Not Recommended) 25 MEY25-S25 40 70 (Not Recommended) 1 MEY16-S16-140H - 61 91 MEY25-S25-170H - 70 100 MEY16-S16-190 - 61 91 MEY25-S25-220 - 80 100 17 MEY17-S16 31 61 (Not Recommended) 26 MEY26-S25 40 70 (Not Recommended) 2 c MEY17-S16-190 31 61 91 MEY26-S25-220 40 70 100 20 MEY20-S20 35 65 (Not Recommended) 32 MEY32-S32 50 80 (Not Recommended) MEY20-S20-150H - 65 95 MEY32-S32-180H - 80 110 MEY20-S20-200 - 65 95 MEY32-S32-230 - 90 110 21 MEY21-S20 35 65 (Not Recommended) 33 MEY33-S32 50 80 (Not Recommended) < MEY21-S20-200 35 65 95 MEY33-S32-230 50 80 110 When using in dimension, be careful that the chucking length to the shank may get too short. 40 MEY40-S32 55 85 115 MEY40-S32-240 55 85 115 50 MEY50-S42 70 100 130 MEY50-S42-250 70 100 130 Description Обозначение Shouldering (Cutting width ae = D/2) Note) I Part ae = D/4 Slotting Ramping and Helical Milling MEY16-S16 MEY17-S16 fz(mm/t) MEY20-S20 MEY21-S20 fz (mm/t) fz(mm/t) MEY25-S25 MEY26-S25 fz (mm/t) fz(mm/t) MEY32-S32 MEY33-S32 fz (mm/t) fz(mm/t) MEY40-S32 fz(mm/t) MEY50-S42 M146
