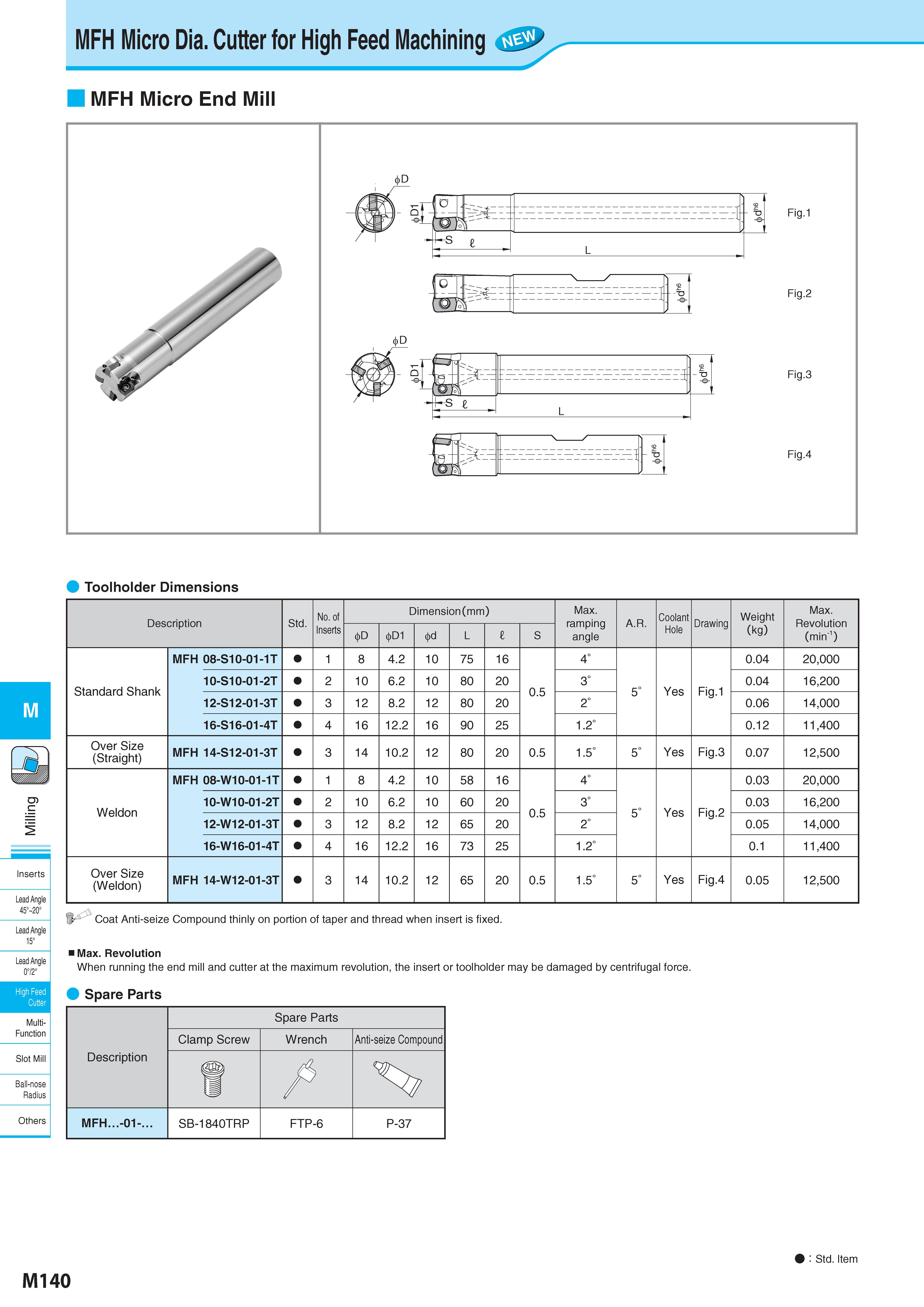

MFH Micro Dia. Cutter for High Feed Machining MFH Micro End Mill Toolholder Dimensions Description Обозначение Std. No. of Inserts Dimension(mm) Max. ramping angle A.R. Coolant Hole Drawing Weight (kg) Вес инструмента в кг (kg) Max. Revolution (min-1) Максимальное количество оборотов на шпинделе станка (об/мин) 0D 0D1 d L I S Standard Shank MFH 08-S10-01-1T 1 8 4.2 10 75 16 0.5 4° 5° Yes Fig.1 0.04 20,000 10-S10-01-2T 2 10 6.2 10 80 20 3° 0.04 16,200 12-S12-01-3T 3 12 8.2 12 80 20 2° 0.06 14,000 16-S16-01-4T 4 16 12.2 16 90 25 1.2° 0.12 11,400 Over Size (Straight) MFH 14-S12-01-3T 3 14 10.2 12 80 20 0.5 1.5° 5° Yes Fig.3 0.07 12,500 Weldon MFH 08-W10-01-1T 1 8 4.2 10 58 16 0.5 4° 5° Yes Fig.2 0.03 20,000 10-W10-01-2T 2 10 6.2 10 60 20 3° 0.03 16,200 12-W12-01-3T 3 12 8.2 12 65 20 2° 0.05 14,000 16-W16-01-4T 4 16 12.2 16 73 25 1.2° 0.1 11,400 Over Size (Weldon) MFH 14-W12-01-3T 3 14 10.2 12 65 20 0.5 1.5° 5° Yes Fig.4 0.05 12,500 Inserts Lead Angle 45° 20° Lead Angle 15° Multi- Function Slot Mill Ball-nose Radius Others Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Spare Parts Description Обозначение Spare Parts Clamp Screw Wrench Anti-seize Compound / o MFH...-01-... SB-1840TRP FTP-6 P-37 M140 : Std. Item
