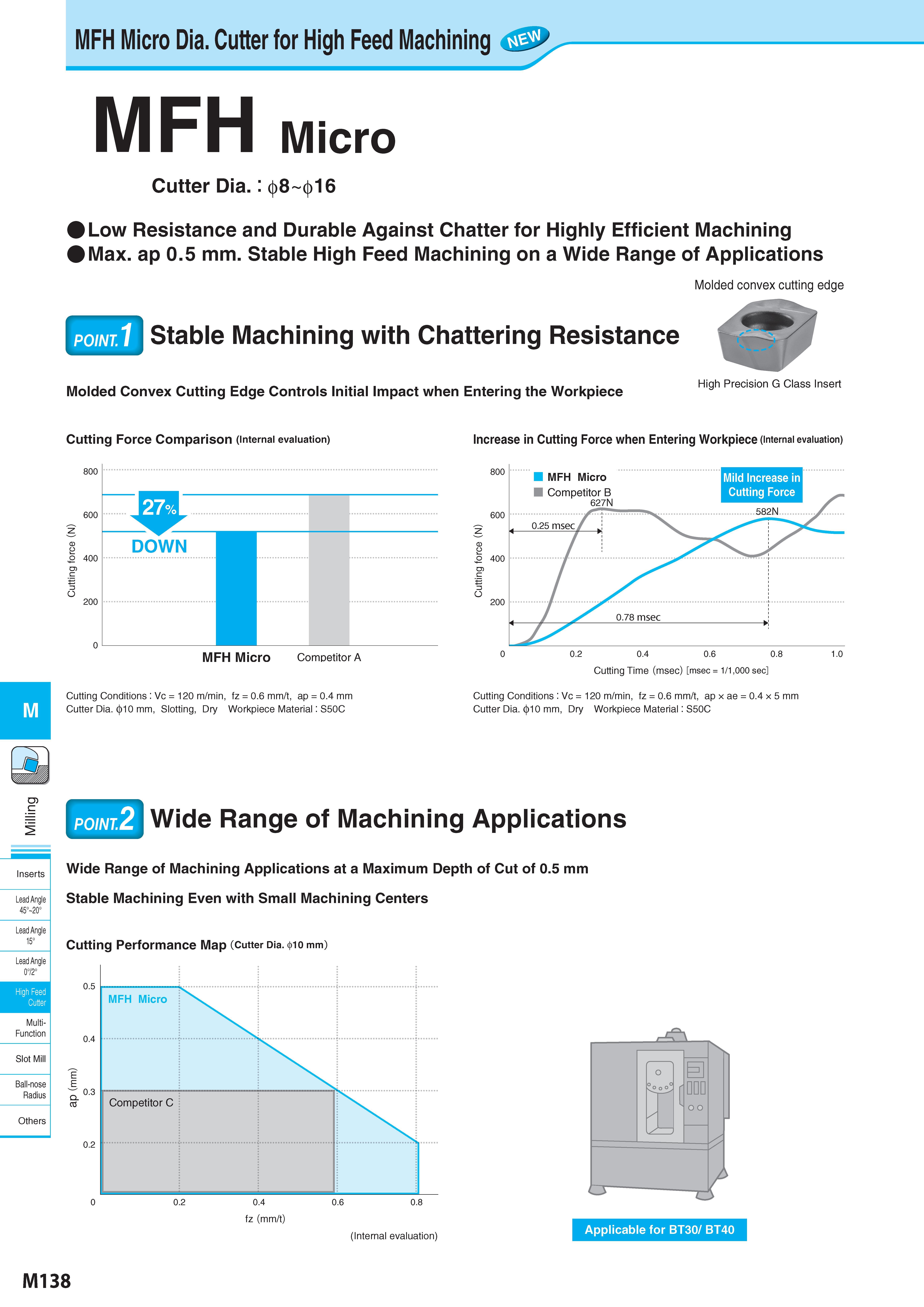

MFH Micro Dia. Cutter for High Feed Machining MFH Micro Cutter Dia.: 8 16 Low Resistance and Durable Against Chatter for Highly Efficient Machining Max. ap 0.5 mm. Stable High Feed Machining on a Wide Range of Applications Molded convex cutting edge Stable Machining with Chattering Resistance Molded Convex Cutting Edge Controls Initial Impact when Entering the Workpiece High Precision G Class Insert Cutting Force Comparison (Internal evaluation) Increase in Cutting Force when Entering Workpiece (Internal evaluation) Lead Angle 45° 20° Multi- Function Ball-nose Radius o 400 MFH Micro Competitor A Cutting Conditions : Vc = 120 m/min, fz = 0.6 mm/t, ap = 0.4 mm Cutter Dia. 10 mm, Slotting, Dry Workpiece Material: S50C Cutting Time (msec) msec = 1/1,000 sec Cutting Conditions : Vc = 120 m/min, fz = 0.6 mm/t, ap x ae = 0.4 x 5 mm Cutter Dia. 10 mm, Dry Workpiece Material: S50C Wide Range of Machining Applications Wide Range of Machining Applications at a Maximum Depth of Cut of 0.5 mm Stable Machining Even with Small Machining Centers Cutting Performance Map (Cutter Dia. 10 mm) O o -°l fz (mm/t) (Internal evaluation) cr Applicable for BT30/ BT40 800 600 200 0 High Feed Cutter Slot Mill M138
