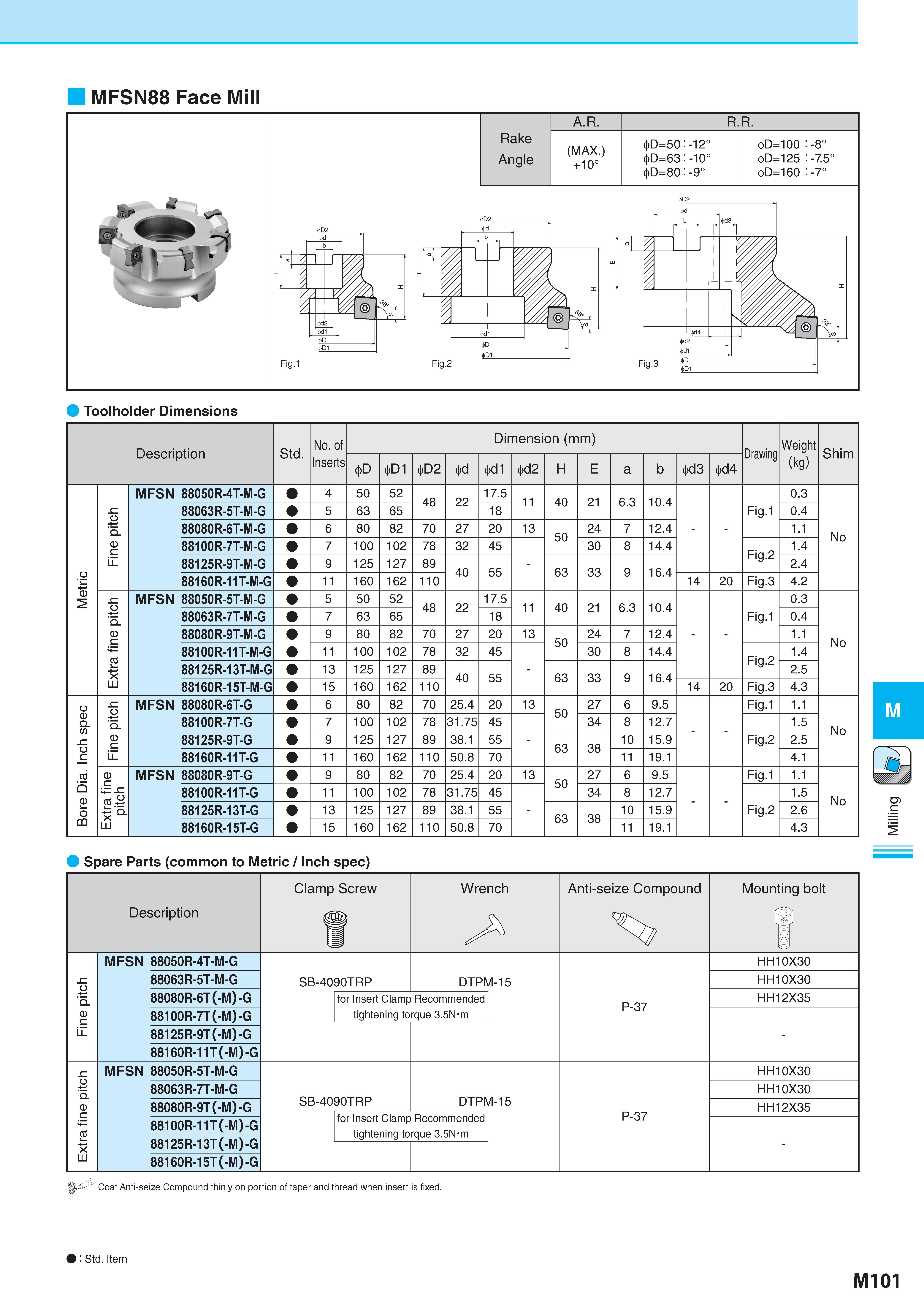

MFSN88 Face Mill Rake Angle A.R. R.R. (MAX.) +10° ODD II II II OO CD Ol O o °0 0 0 4>D=100 : -8° D=125 : -7.5° 4>D=160 : -7° Toolholder Dimensions Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Drawing Weight (kg) Вес инструмента в кг (kg) Shim 4>D 4>D1 4>D2 4>d 4>d1 4>d2 H E a b 4>d3 4>d4 Metric Fine pitch MFSN 88050R-4T-M-G 4 50 52 48 22 17.5 11 40 21 6.3 10.4 Fig.1 0.3 No 88063R-5T-M-G 5 63 65 18 0.4 88080R-6T-M-G 6 80 82 70 27 20 13 50 24 7 12.4 1.1 88100R-7T-M-G 7 100 102 78 32 45 - 30 8 14.4 Fig.2 1.4 88125R-9T-M-G 9 125 127 89 40 55 63 33 9 16.4 2.4 88160R-11T-M-G 11 160 162 110 14 20 Fig.3 4.2 Extra fine pitch MFSN 88050R-5T-M-G 5 50 52 48 22 17.5 11 40 21 6.3 10.4 Fig.1 0.3 No 88063R-7T-M-G 7 63 65 18 0.4 88080R-9T-M-G 9 80 82 70 27 20 13 50 24 7 12.4 1.1 88100R-11T-M-G 11 100 102 78 32 45 - 30 8 14.4 Fig.2 1.4 88125R-13T-M-G 13 125 127 89 40 55 63 33 9 16.4 2.5 88160R-15T-M-G 15 160 162 110 14 20 Fig.3 4.3 Bore Dia. Inch spec Fine pitch MFSN 88080R-6T-G 6 80 82 70 25.4 20 13 50 27 6 9.5 Fig.1 1.1 No 88100R-7T-G 7 100 102 78 31.75 45 - 34 8 12.7 Fig.2 1.5 88125R-9T-G 9 125 127 89 38.1 55 63 38 10 15.9 2.5 88160R-11T-G 11 160 162 110 50.8 70 11 19.1 4.1 Extra fine pitch MFSN 88080R-9T-G 9 80 82 70 25.4 20 13 50 27 6 9.5 Fig.1 1.1 No 88100R-11T-G 11 100 102 78 31.75 45 - 34 8 12.7 Fig.2 1.5 88125R-13T-G 13 125 127 89 38.1 55 63 38 10 15.9 2.6 88160R-15T-G 15 160 162 110 50.8 70 11 19.1 4.3 Spare Parts (common to Metric / Inch spec) Description Обозначение Clamp Screw Wrench Anti-seize Compound Mounting bolt tc 0 n MFSN 88050R-4T-M-G HH10X30 88063R-5T-M-G 88080R-6T(-M)-G 88100R-7T(-M)-G SB-4090TRP DTPM-15 for Insert Clamp Recommended tightening torque 3.5N-m HH10X30 88125R-9T(-M)-G 88160R-11T(-M)-G P-37 HH12X35 MFSN 88050R-5T-M-G HH10X30 o 'a 0 c X LU 88063R-7T-M-G 88080R-9T(-M)-G SB-4090TRP DTPM-15 HH10X30 88100R-11T(-M)-G 88125R-13T(-M)-G for Insert Clamp Recommended tightening torque 3.5N-m P-37 HH12X35 88160R-15T(-M)-G ' Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. : Std. Item Стандартная позиция M101 Milling
