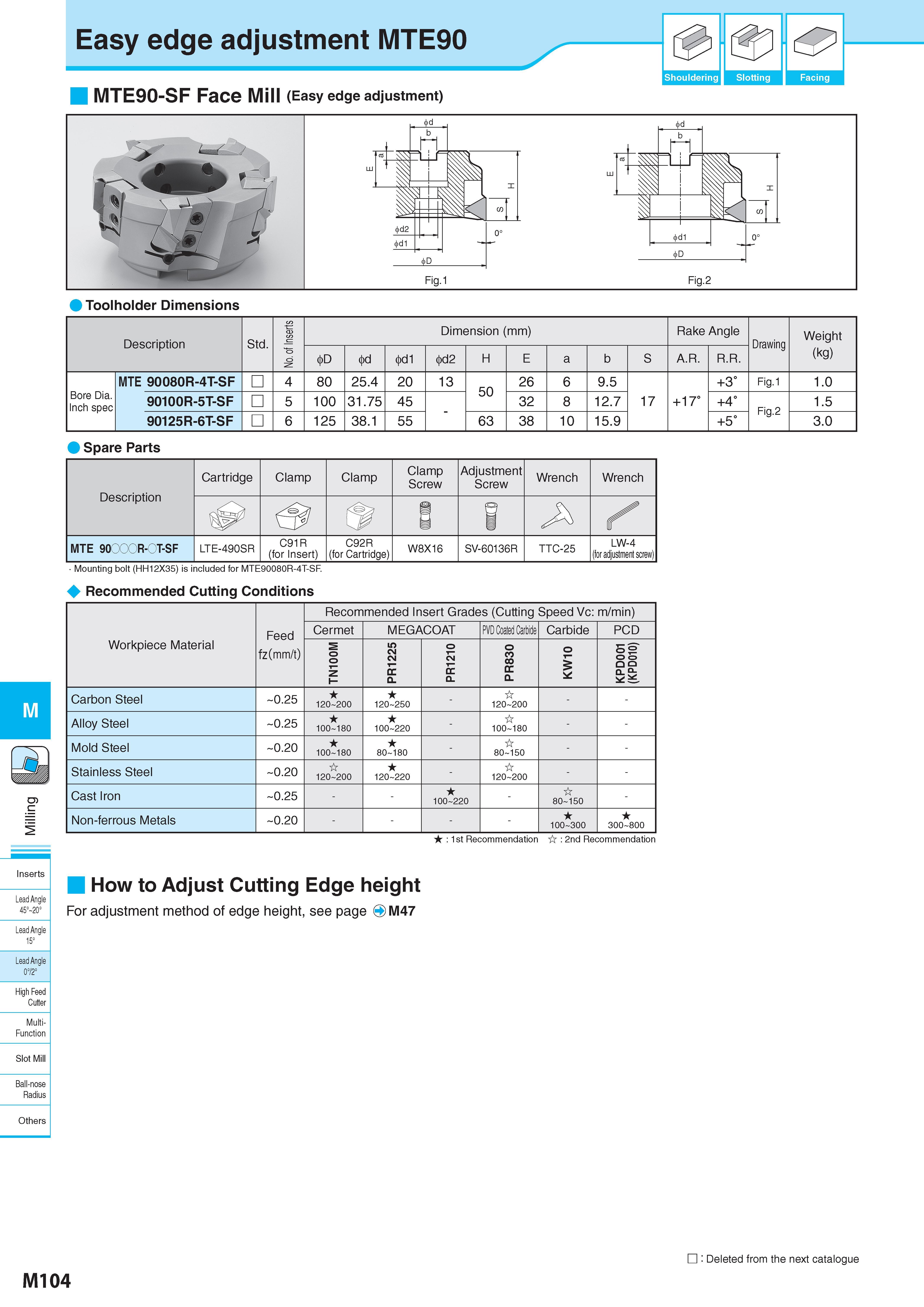

Easy edge adjustment MTE90 MTE90-SF Face Mill (Easy edge adjustment) & Shouldering Slotting I Facing Toolholder Dimensions Description Обозначение Std. No. of Inserts Dimension (mm) Размеры в мм Rake Angle Drawing Weight (kg) Вес инструмента в кг D d d1 d2 H E a b S A.R. R.R. (kg) Bore Dia. Inch spec MTE 90080R-4T-SF 4 80 25.4 20 13 50 26 6 9.5 +3° Fig.1 1.0 90100R-5T-SF 5 100 31.75 45 32 8 12.7 17 +17° +4° Fig.2 1.5 90125R-6T-SF 6 125 38.1 55 63 38 10 15.9 +5° 3.0 Spare Parts Description Обозначение Cartridge Clamp Clamp Clamp Screw Adjustment Screw Wrench Wrench 1 1 B S MTE 90OOOR-OT-SF LTE-490SR C91R (for Insert) C92R (for Cartridge) W8X16 SV-60136R TTC-25 LW-4 (for adjustment screw) Mounting bolt (HH12X35) is included for MTE90080R-4T-SF. Recommended Cutting Conditions Рекомендованные режимы резания на станках M Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Others Workpiece Material Обрабатываемый материал Feed fz (mm/t) Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Cermet MEGACOAT PVD Coated Carbide Carbide PCD TN100M PR1225 PR1210 PR830 KW10 KPD001 (KPD010) Carbon Steel 0.25 120 200 120 250 - 120 200 Alloy Steel 0.25 100 180 100 220 - 100 180 Mold Steel 0.20 100 180 80 180 - 80 150 Stainless Steel 0.20 120 200 120 220 - 120 200 Cast Iron 0.25 100 220 - 80 150 - Non-ferrous Metals 0.20 100 300 300 800 : 1st Recommendation : 2nd Recommendation How to Adjust Cutting Edge height For adjustment method of edge height, see page O M47 M104 : Deleted from the next catalogue
