853 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.M103

Каталог KYOCERA 2017 Инструмент режущий Стр. M103 0853 Lab2u

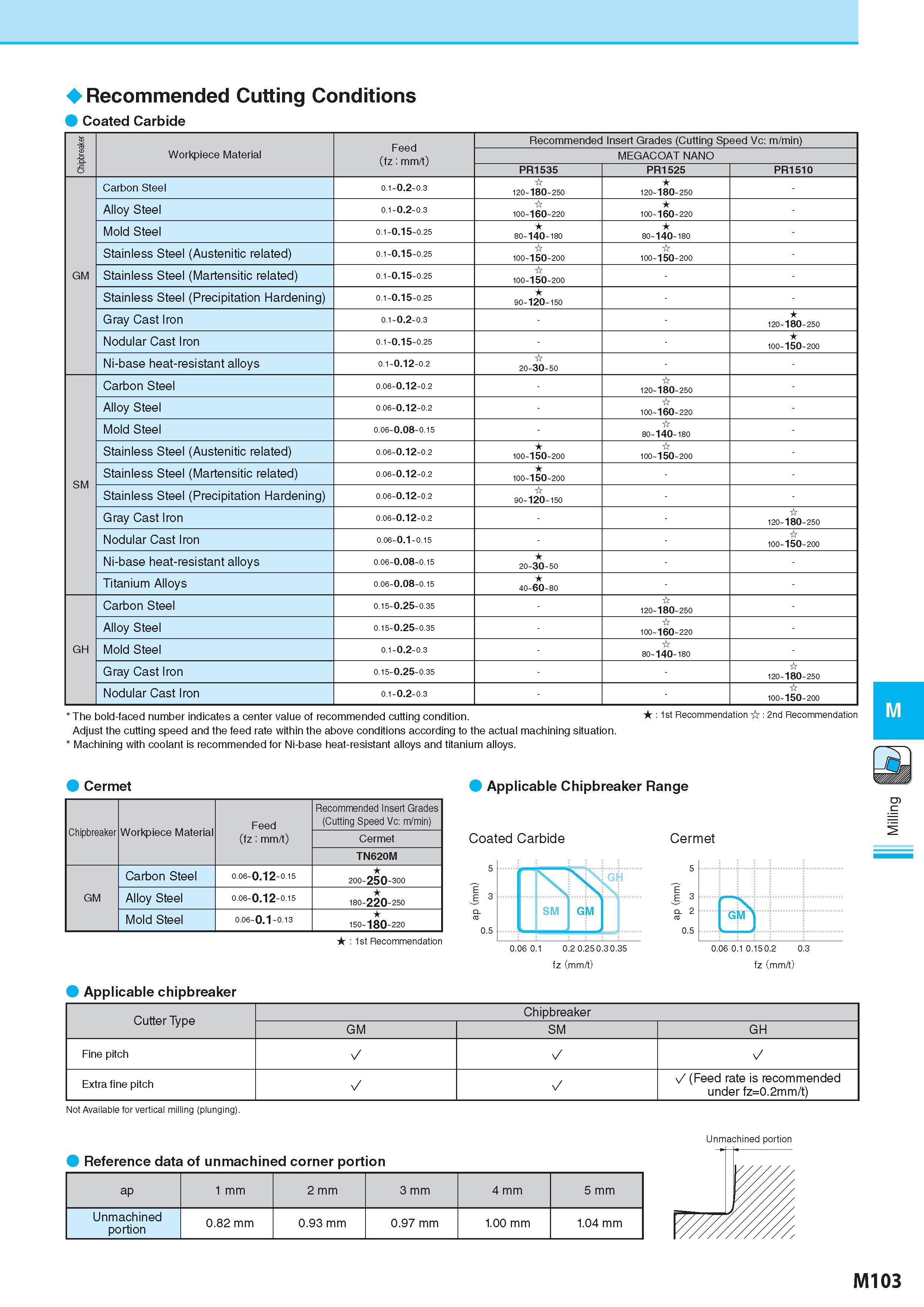

Recommended Cutting Conditions Рекомендованные режимы резания на станках Coated Carbide Chipbreaker Стружколом сменной пластины Feed (fz: mm/t) Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Workpiece Material Обрабатываемый материал MEGACOAT NANO PR1535 PR1525 PR1510 Carbon Steel 0.1 0.2 0.3 120 180 250 120 180 250 Alloy Steel 0.1 0.2 0.3 100 160 220 100 160 220 Mold Steel 0.1 0.15 0.25 80 140 180 80 140 180 Stainless Steel (Austenitic related) 0.1 0.15 0.25 100 150 200 100 150 200 GM Stainless Steel (Martensitic related) 0.1 0.15 0.25 100 150 200 Stainless Steel (Precipitation Hardening) 0.1 0.15 0.25 90 120 150 Gray Cast Iron 0.1 0.2 0.3 120 180 250 Nodular Cast Iron 0.1 0.15 0.25 100 150 200 Ni-base heat-resistant alloys 0.1 0.12 0.2 20 30 50 Carbon Steel 0.06 0.12 0.2 120 180 250 Alloy Steel 0.06 0.12 0.2 100 160 220 Mold Steel 0.06 0.08 0.15 80 140 180 Stainless Steel (Austenitic related) 0.06 0.12 0.2 100 150 200 100 150 200 SM Stainless Steel (Martensitic related) 0.06 0.12 0.2 100 150 200 Stainless Steel (Precipitation Hardening) 0.06 0.12 0.2 90 120 150 Gray Cast Iron 0.06 0.12 0.2 120 180 250 Nodular Cast Iron 0.06 0.1 0.15 100 150 200 Ni-base heat-resistant alloys 0.06 0.08 0.15 20 30 50 Titanium Alloys 0.06 0.08 0.15 40 60 80 Carbon Steel 0.15 0.25 0.35 120 180 250 Alloy Steel 0.15 0.25 0.35 100 160 220 GH Mold Steel 0.1 0.2 0.3 80 140 180 Gray Cast Iron 0.15 0.25 0.35 120 180 250 Nodular Cast Iron 0.1 0.2 0.3 100 150 200 The bold-faced number indicates a center value of recommended cutting condition. Adjust the cutting speed and the feed rate within the above conditions according to the actual machining situation. Machining with coolant is recommended for Ni-base heat-resistant alloys and titanium alloys. : 1st Recommendation : 2nd Recommendation Cermet Applicable Chipbreaker Стружколом сменной пластины Range Chipbreaker Стружколом сменной пластины Workpiece Material Обрабатываемый материал Feed (fz: mm/t) Recommended Insert Grades Cutting Speed Vc (m/min) Скорость резания (м/мин) Cermet TN620M GM Carbon Steel 0.06 0.12 0.15 200 250 300 Alloy Steel 0.06 0.12 0.15 180 220 250 Mold Steel 0.06 0.1 0.13 150 180 220 Coated Carbide : 1st Recommendation Cermet 5 I 3 Q 2 0.5 fz (mm/t) GM A 16 0.1 0.150.2 0.3 fz (mm/t) Applicable chipbreaker Cutter Type Chipbreaker Стружколом сменной пластины GM SM GH Fine pitch -/ >/ Extra fine pitch x/ >/ (Feed rate is recommended under fz=0.2mm/t) Not Available for vertical milling (plunging). Unmachined portion Reference data of unmachined corner portion ap 1 mm 2 mm 3 mm 4 mm 5 mm Unmachined portion 0.82 mm 0.93 mm 0.97 mm 1.00 mm 1.04 mm M103
