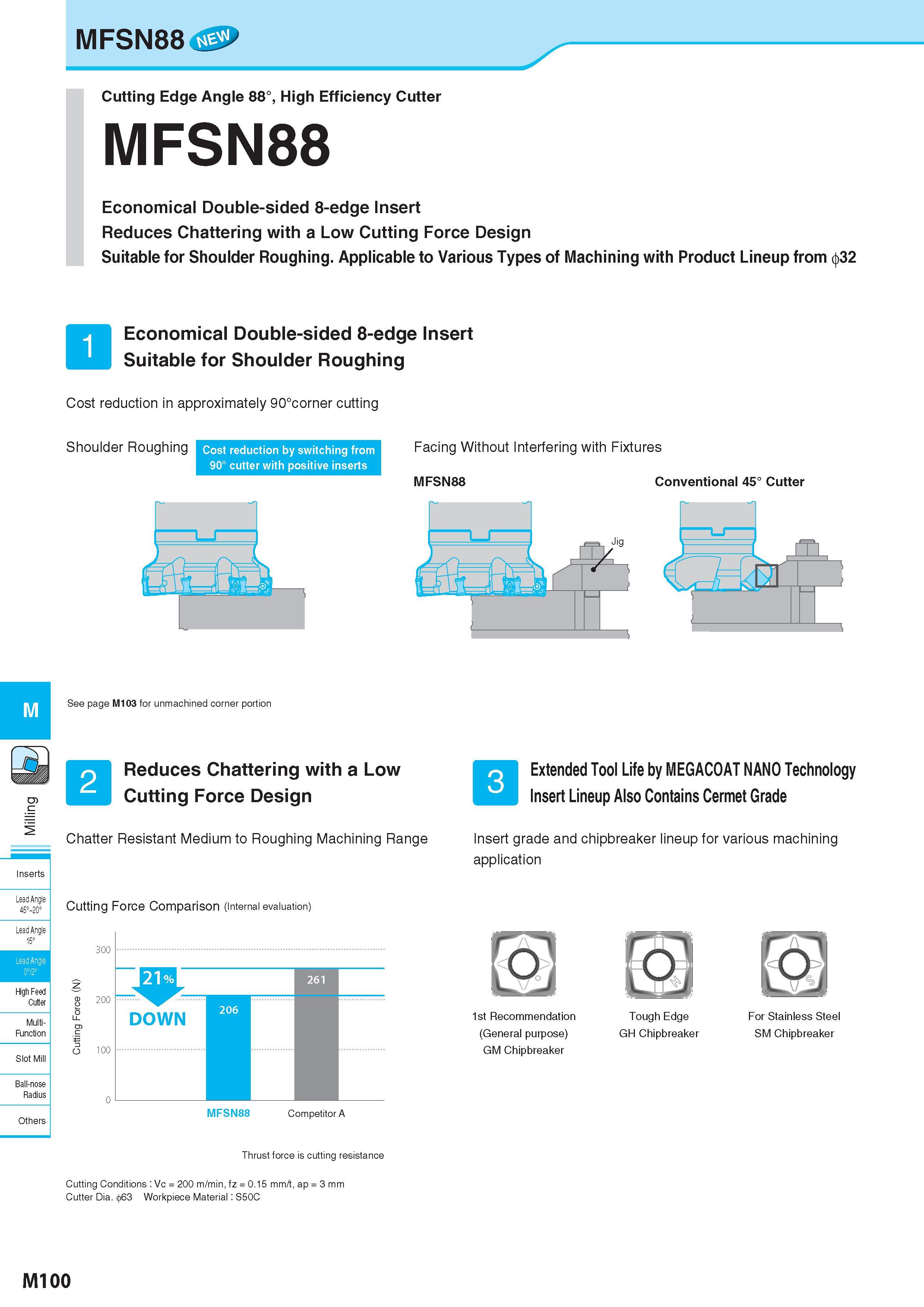

850 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.M100

Каталог KYOCERA 2017 Инструмент режущий Стр. M100 0850 Lab2u

M Inserts Lead Angle 45°'20c Lead Angle 15° ' Lead Angle 0°/2° High Feed Cutter Multi- Function Slot Mill Ball-nose Radius Cutting Edge Angle 88°, High Efficiency Cutter MFSN88 Economical Double-sided 8-edge Insert Reduces Chattering with a Low Cutting Force Design Suitable for Shoulder Roughing. Applicable to Various Types of Machining with Product Lineup from 32 Economical Double-sided 8-edge Insert Suitable for Shoulder Roughing Cost reduction in approximately 90°corner cutting Shoulder Roughing Cost reduction by switching from 90° cutter with positive inserts Facing Without Interfering with Fixtures MFSN88 Conventional 45° Cutter 332 jTl See page M103 for unmachined corner portion Reduces Chattering with a Low Cutting Force Design Chatter Resistant Medium to Roughing Machining Range Extended Tool Life by MEGACOAT NANO Technology Insert Lineup Also Contains Cermet Grade Insert grade and chipbreaker lineup for various machining application Cutting Force Comparison (Internal evaluation) 261 DOWN 206 O 10C MFSN88 Competitor A Thrust force is cutting resistance Cutting Conditions : Vc = 200 m/min, fz = 0.15 mm/t, ap = 3 mm Cutter Dia. 63 Workpiece Material: S50C 1st Recommendation (General purpose) GM Chipbreaker Стружколом сменной пластины Tough Edge GH Chipbreaker Стружколом сменной пластины For Stainless Steel SM Chipbreaker Стружколом сменной пластины 300 200 0 M100
