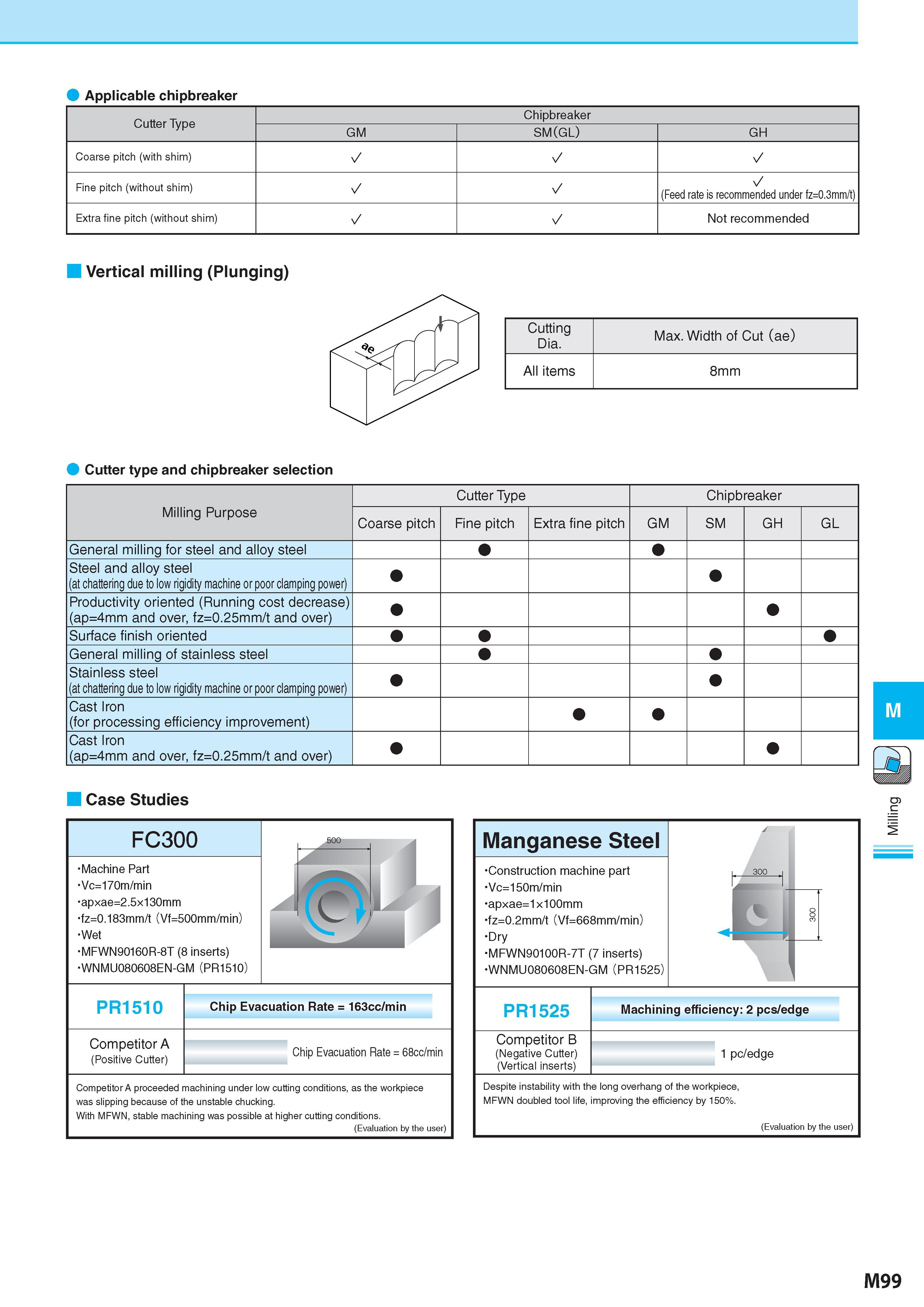

Applicable chipbreaker Cutter Type Chipbreaker Стружколом сменной пластины GM SM(GL) GH Coarse pitch (with shim) ✓ y Fine pitch (without shim) ✓ n/ (Feed rate is recommended under fz=0.3mm/t) Extra fine pitch (without shim) n/ Not recommended Cutter type and chipbreaker selection Cutting Dia. Max. Width of Cut (ae) All items 8mm Milling Purpose Cutter Type Chipbreaker Стружколом сменной пластины Coarse pitch Fine pitch Extra fine pitch GM SM GH GL General milling for steel and alloy steel Steel and alloy steel (at chattering due to low rigidity machine or poor clamping power) Productivity oriented (Running cost decrease) (ap=4mm and over, fz=0.25mm/t and over) Surface finish oriented General milling of stainless steel Stainless steel (at chattering due to low rigidity machine or poor clamping power) Cast Iron (for processing efficiency improvement) Cast Iron (ap=4mm and over, fz=0.25mm/t and over) Case Studies FC300 500 M Machine Part Vc=170m/min apxae=2.5x130mm fz=0.183mm/t (Vf=500mm/min) Wet MFWN90160R-8T (8 inserts) WNMU080608EN-GM (PR1510) PR1510 Chip Evacuation Rate = 163cc/min Competitor A (Positive Cutter) Chip Evacuation Rate = 68cc/min Competitor A proceeded machining under low cutting conditions, as the workpiece was slipping because of the unstable chucking. With MFWN, stable machining was possible at higher cutting conditions. (Evaluation by the user) Manganese Steel y Construction machine part Vc=150m/min apxae=1x100mm fz=0.2mm/t (Vf=668mm/min) Dry MFWN90100R-7T (7 inserts) WNMU080608EN-GM (PR1525) 300 I'll -Pj 0 0 3 PR1525 Machining efficiency: 2 pcs/edge Competitor B (Negative Cutter) (Vertical inserts) 1 pc/edge Despite instability with the long overhang of the workpiece, MFWN doubled tool life, improving the efficiency by 150%. (Evaluation by the user) M99 Milling
