740 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L97

Каталог KYOCERA 2017 Инструмент режущий Стр. L97 0740 Lab2u

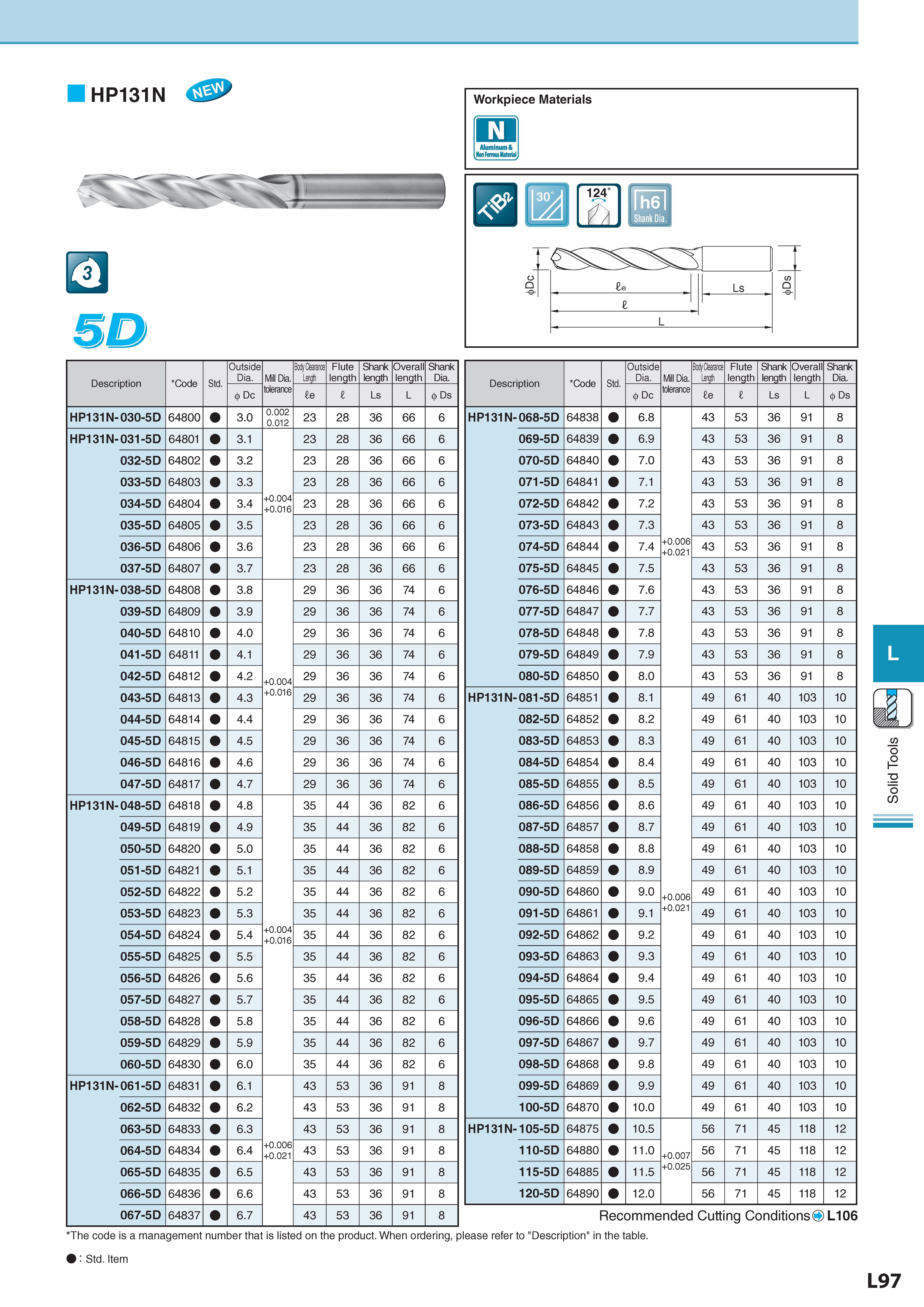

HP131N 5D Workpiece Materials Обрабатываемые материалы o le Ls l L Description Обозначение Code Std. Outside Dia. Mill Dia. Body Clearance Length Flute length Shank length Overall length Shank Dia. Dc tolerance le l Ls L Ds HP131N- 030-5D 64800 3.0 0.002 0.012 23 28 36 66 6 HP131N- 031-5D 64801 3.1 23 28 36 66 6 032-5D 64802 3.2 23 28 36 66 6 033-5D 64803 3.3 23 28 36 66 6 034-5D 64804 3.4 +0.004 +0.016 23 28 36 66 6 035-5D 64805 3.5 23 28 36 66 6 036-5D 64806 3.6 23 28 36 66 6 037-5D 64807 3.7 23 28 36 66 6 HP131N- 038-5D 64808 3.8 29 36 36 74 6 039-5D 64809 3.9 29 36 36 74 6 040-5D 64810 4.0 29 36 36 74 6 041-5D 64811 4.1 29 36 36 74 6 042-5D 64812 4.2 +0.004 29 36 36 74 6 043-5D 64813 4.3 +0.016 29 36 36 74 6 044-5D 64814 4.4 29 36 36 74 6 045-5D 64815 4.5 29 36 36 74 6 046-5D 64816 4.6 29 36 36 74 6 047-5D 64817 4.7 29 36 36 74 6 HP131N- 048-5D 64818 4.8 35 44 36 82 6 049-5D 64819 4.9 35 44 36 82 6 050-5D 64820 5.0 35 44 36 82 6 051-5D 64821 5.1 35 44 36 82 6 052-5D 64822 5.2 35 44 36 82 6 053-5D 64823 5.3 35 44 36 82 6 054-5D 64824 5.4 +0.004 +0.016 35 44 36 82 6 055-5D 64825 5.5 35 44 36 82 6 056-5D 64826 5.6 35 44 36 82 6 057-5D 64827 5.7 35 44 36 82 6 058-5D 64828 5.8 35 44 36 82 6 059-5D 64829 5.9 35 44 36 82 6 060-5D 64830 6.0 35 44 36 82 6 HP131N- 061-5D 64831 6.1 43 53 36 91 8 062-5D 64832 6.2 43 53 36 91 8 063-5D 64833 6.3 43 53 36 91 8 064-5D 64834 6.4 +0.006 +0.021 43 53 36 91 8 065-5D 64835 6.5 43 53 36 91 8 066-5D 64836 6.6 43 53 36 91 8 067-5D 64837 6.7 43 53 36 91 8 Description Обозначение Code Std. Outside Dia. Mill Dia. Body Clearance Length Flute length Shank length Overall length Shank Dia. Dc tolerance le l Ls L Ds HP131N- 068-5D 64838 6.8 43 53 36 91 8 069-5D 64839 6.9 43 53 36 91 8 070-5D 64840 7.0 43 53 36 91 8 071-5D 64841 7.1 43 53 36 91 8 072-5D 64842 7.2 43 53 36 91 8 073-5D 64843 7.3 43 53 36 91 8 074-5D 64844 7.4 +0.006 +0.021 43 53 36 91 8 075-5D 64845 7.5 43 53 36 91 8 076-5D 64846 7.6 43 53 36 91 8 077-5D 64847 7.7 43 53 36 91 8 078-5D 64848 7.8 43 53 36 91 8 079-5D 64849 7.9 43 53 36 91 8 080-5D 64850 8.0 43 53 36 91 8 HP131N- 081-5D 64851 8.1 49 61 40 103 10 082-5D 64852 8.2 49 61 40 103 10 083-5D 64853 8.3 49 61 40 103 10 084-5D 64854 8.4 49 61 40 103 10 085-5D 64855 8.5 49 61 40 103 10 086-5D 64856 8.6 49 61 40 103 10 087-5D 64857 8.7 49 61 40 103 10 088-5D 64858 8.8 49 61 40 103 10 089-5D 64859 8.9 49 61 40 103 10 090-5D 64860 9.0 +0.006 49 61 40 103 10 091-5D 64861 9.1 +0.021 49 61 40 103 10 092-5D 64862 9.2 49 61 40 103 10 093-5D 64863 9.3 49 61 40 103 10 094-5D 64864 9.4 49 61 40 103 10 095-5D 64865 9.5 49 61 40 103 10 096-5D 64866 9.6 49 61 40 103 10 097-5D 64867 9.7 49 61 40 103 10 098-5D 64868 9.8 49 61 40 103 10 099-5D 64869 9.9 49 61 40 103 10 100-5D 64870 10.0 49 61 40 103 10 HP131N- 105-5D 64875 10.5 56 71 45 118 12 110-5D 64880 11.0 +0.007 56 71 45 118 12 115-5D 64885 11.5 +0.025 56 71 45 118 12 120-5D 64890 12.0 56 71 45 118 12 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L106 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. : Std. Item Стандартная позиция L97 Solid Tools
