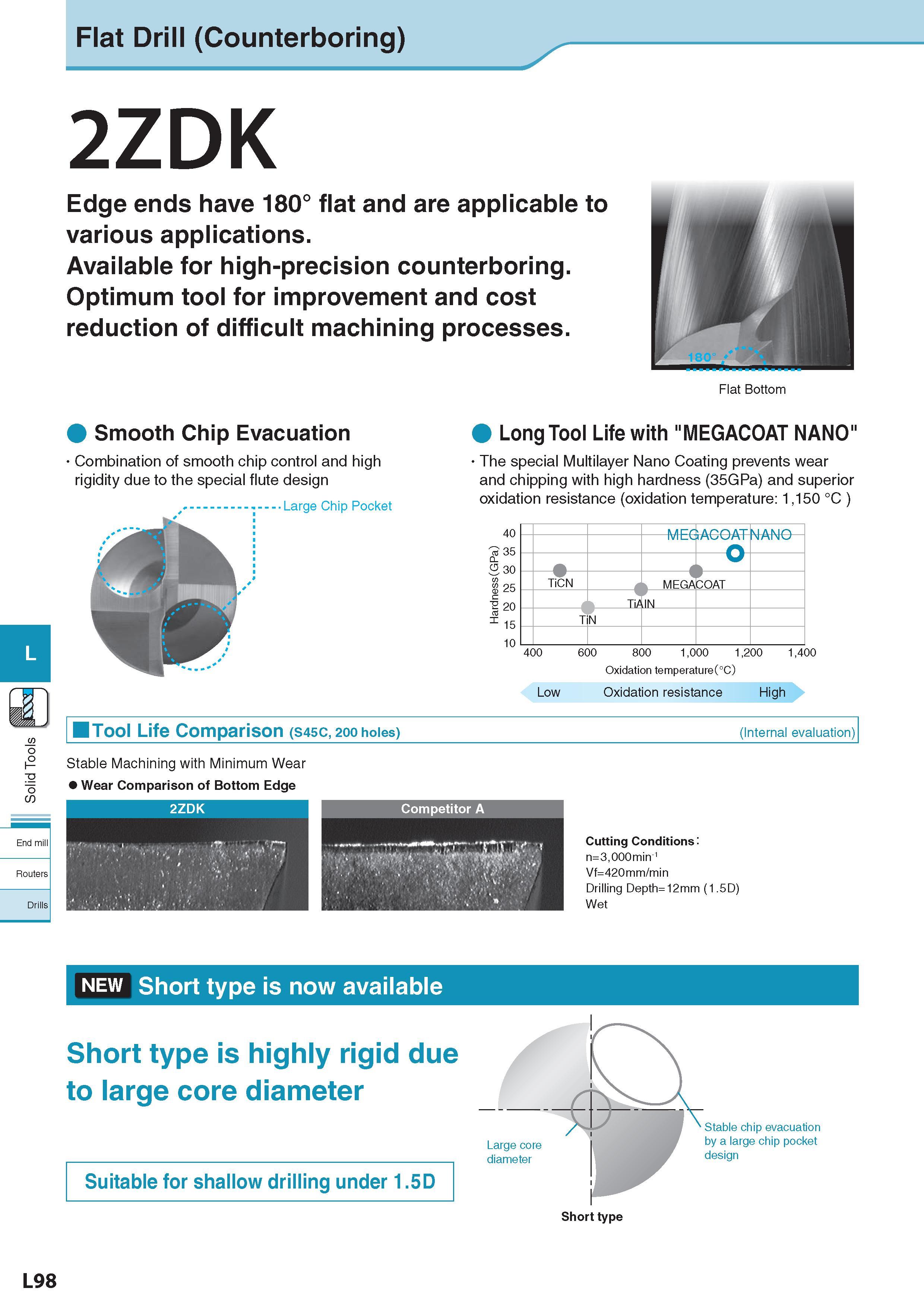

Flat Drill (Counterboring) 2ZDK Edge ends have 180° flat and are applicable to various applications. Available for high-precision counterboring. Optimum tool for improvement and cost reduction of difficult machining processes. Flat Bottom Smooth Chip Evacuation Combination of smooth chip control and high rigidity due to the special flute design Large Chip Pocket Long Tool Life with "MEGACOAT NANO" The special Multilayer Nano Coating prevents wear and chipping with high hardness (35GPa) and superior oxidation resistance (oxidation temperature: 1,150 °C ) 40 "Ic 35 Q S 30 I 25 I 20 TO 1 15 10 IV/IFf APflAT M AMO nACUA I A 0 V TiCN 4 % MEGA P CUAT g % TiA ¥ IN T w N 400 600 800 1,000 1,200 Oxidation temperature(°C) 1,400 ' Low Oxidation resistance High C0 Tool Life Comparison (S45C, 200 holes) (Internal evaluation) o ,o Stable Machining with Minimum Wear Wear Comparison of Bottom Edge Competitor A . . . ; i Y ' \ . . i . ' V.1' , V f.'l . . Cutting Conditions: n=3,000min-1 Vf=420mm/min Drilling Depth=12mm (1.5D) Wet End mill new Short type is now available Short type is highly rigid due to large core diameter Suitable for shallow drilling under 1.5D Large core diameter Stable chip evacuation by a large chip pocket design Short type L98
