743 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L100

Каталог KYOCERA 2017 Инструмент режущий Стр. L100 0743 Lab2u

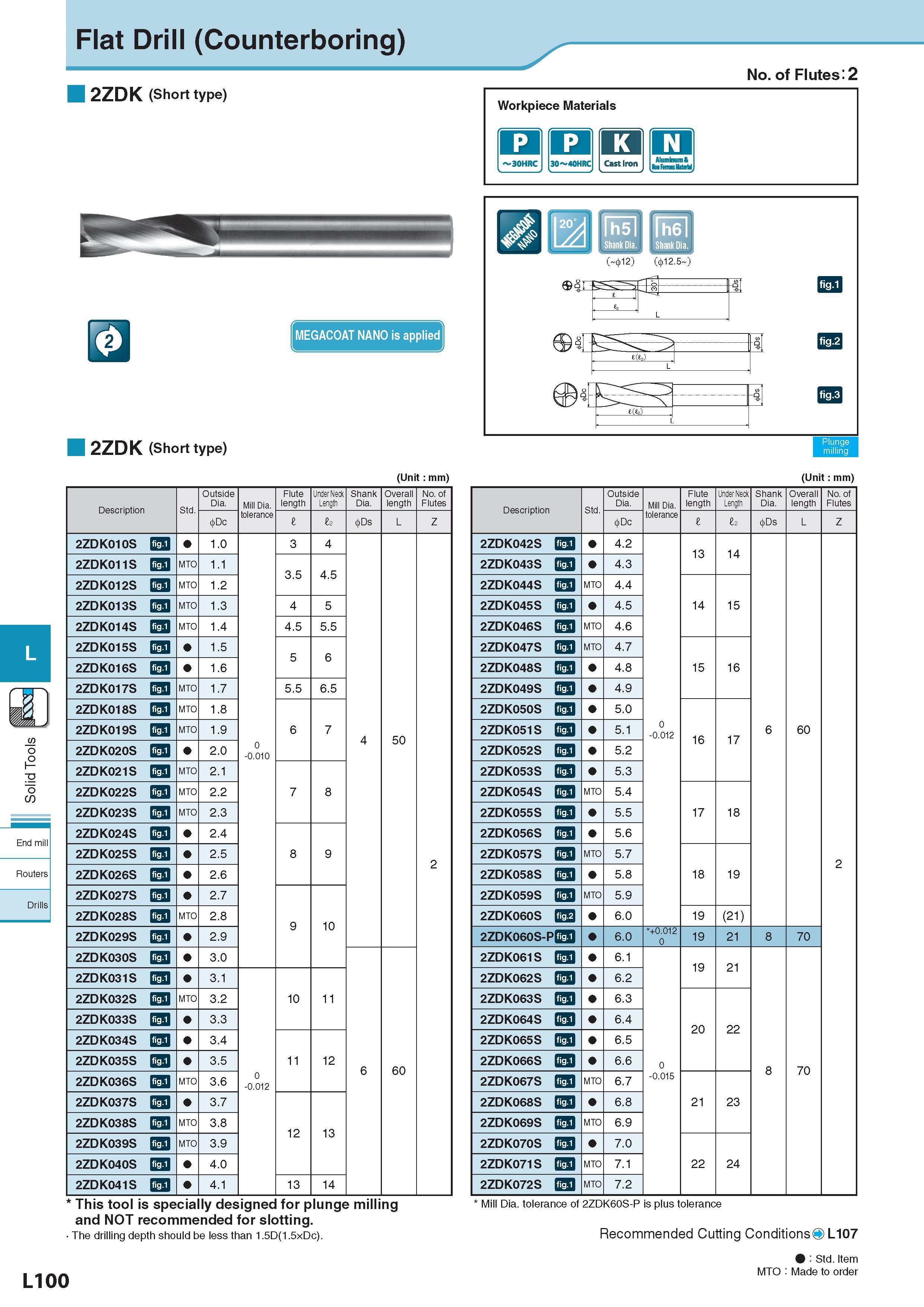

Flat Drill (Counterboring) 2ZDK (Short type) MEGACOAT NANO is applied 2ZDK (Short type) Workpiece Materials Обрабатываемые материалы IKI O 30HRC 30 40HRC Cast Iron j Alumnumft HMFefTOuMaterU fh I h6l Shank Dia. I Shank Dia. ( 012) (012.5-) S No. of Flutes: 2 (Unit : mm) (Unit : mm) Plunge milling End mill Routers Description Обозначение Std. Outside Dia. Mill Dia. Flute length Under Neck Length Shank Dia. Overall length No. of Flutes Dc tolerance I 12 Ds L Z 2ZDK010S fig.1 1.0 3 4 2ZDK011S fig.1 MTO 1.1 3.5 4.5 2ZDK012S fig.1 MTO 1.2 2ZDK013S fig.1 MTO 1.3 4 5 2ZDK014S fig.1 MTO 1.4 4.5 5.5 2ZDK015S fig.1 1.5 5 6 2ZDK016S fig.1 1.6 2ZDK017S fig.1 MTO 1.7 5.5 6.5 2ZDK018S fig.1 MTO 1.8 2ZDK019S fig.1 MTO 1.9 6 7 4 50 2ZDK020S fig.1 2.0 0 -0.010 2ZDK021S fig.1 MTO 2.1 2ZDK022S fig.1 MTO 2.2 7 8 2ZDK023S fig.1 MTO 2.3 2ZDK024S fig.1 2.4 2ZDK025S fig.1 2.5 8 9 2 2ZDK026S fig.1 2.6 2ZDK027S fig.1 2.7 2ZDK028S fig.1 MTO 2.8 9 10 2ZDK029S fig.1 2.9 2ZDK030S fig.1 3.0 2ZDK031S fig.1 3.1 2ZDK032S fig.1 MTO 3.2 10 11 2ZDK033S fig.1 3.3 2ZDK034S fig.1 3.4 2ZDK035S fig.1 3.5 11 12 6 60 2ZDK036S fig.1 MTO 3.6 0 -0.012 2ZDK037S fig.1 3.7 2ZDK038S fig.1 MTO 3.8 12 13 2ZDK039S fig.1 MTO 3.9 2ZDK040S fig.1 4.0 2ZDK041S fig.1 4.1 13 14 Std. Outside Dia. Mill Dia. Flute length Under Neck Length Shank Dia. Overall length No. of Flutes Dc tolerance I 12 Ds L Z 2ZDK042S fig.1 4.2 13 14 2ZDK043S (fig.1 4.3 2ZDK044S fig.1 MTO 4.4 2ZDK045S fig.1 4.5 14 15 2ZDK046S fig.1 MTO 4.6 2ZDK047S fig.1 MTO 4.7 2ZDK048S fig.1 4.8 15 16 2ZDK049S fig.1 4.9 2ZDK050S fig.1 5.0 2ZDK051S fig.1 5.1 0 -0.012 16 17 6 60 2ZDK052S fig.1 5.2 2ZDK053S (fig.1 5.3 2ZDK054S fig.1 MTO 5.4 2ZDK055S (fig.1 5.5 17 18 2ZDK056S fig.1 5.6 2ZDK057S (fig.1 MTO 5.7 2 2ZDK058S fig.1 5.8 18 19 2ZDK059S (fig.1 MTO 5.9 2ZDK060S fig.2 6.0 19 (21) 2ZDK060S-P fig.1 6.0 +0.012 0 19 21 8 70 2ZDK061S fig.1 6.1 19 21 2ZDK062S (fig.1 6.2 2ZDK063S fig.1 6.3 2ZDK064S fig.1 6.4 20 22 2ZDK065S fig.1 6.5 2ZDK066S fig.1 6.6 0 8 70 2ZDK067S fig.1 MTO 6.7 -0.015 2ZDK068S fig.1 6.8 21 23 2ZDK069S fig.1 MTO 6.9 2ZDK070S fig.1 7.0 2ZDK071S fig.1 MTO 7.1 22 24 2ZDK072S fig.1 MTO 7.2 This tool is specially designed for plunge milling Mill Dia. tolerance of 2ZDK60S-P is plus tolerance and NOT recommended for slotting. The drilling depth should be less than i.5D(i.5xDc). Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L107 L100 9 : Std. Item Стандартная позиция MTO : Made to order
