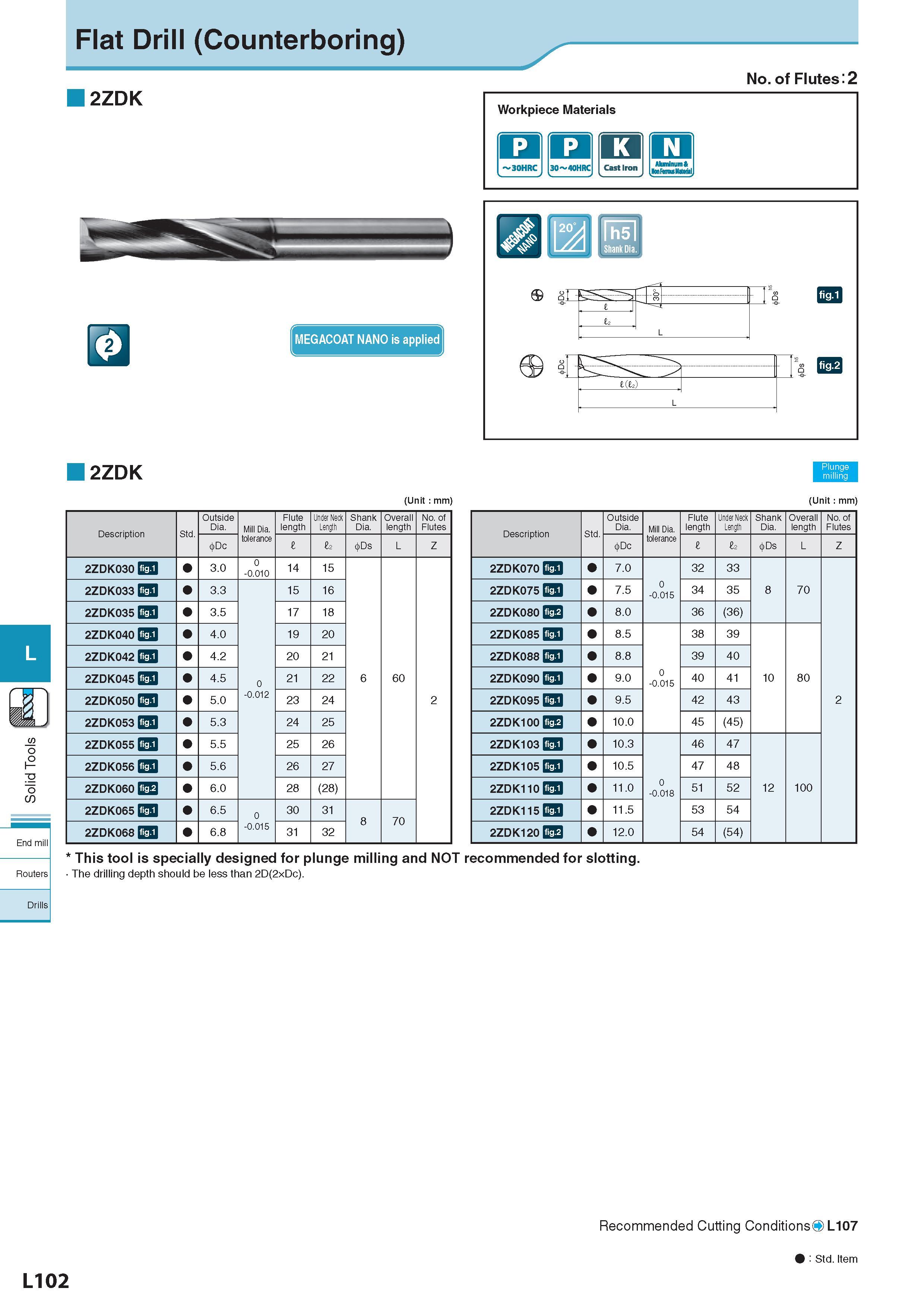

Flat Drill (Counterboring) 2ZDK 2ZDK MEGACOAT NANO is applied (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. Flute length Under Neck Length Shank Dia. Overall length No. of Flutes Dc tolerance I 12 Ds L Z 2ZDK030 fig-1 3.0 0 -0.010 14 15 2ZDK033 HO 3.3 15 16 2ZDK035 fig-1 3.5 17 18 2ZDK040 fig-1 4.0 19 20 2ZDK042 fig-1 4.2 20 21 2ZDK045 fig-1 4.5 0 21 22 6 60 2ZDK050 fig-1 5.0 -0.012 23 24 2 2ZDK053 fig-1 5.3 24 25 2ZDK055 fig-1 5.5 25 26 2ZDK056 fig-1 5.6 26 27 2ZDK060 fig-2 6.0 28 (28) 2ZDK065 fig-1 6.5 0 30 31 8 70 2ZDK068 GED 6.8 -0.015 31 32 No. of Flutes: 2 Workpiece Materials Обрабатываемые материалы BHD O fig.1 fig.2 (Unit : mm) Description Обозначение Std. Outside Dia. Mill Dia. Flute length Under Neck Length Shank Dia. Overall length No. of Flutes Dc tolerance I 12 Ds L Z 2ZDK070 fig-1 7.0 32 33 2ZDK075 fig-1 7.5 0 -0.015 34 35 8 70 2ZDK080 fig-2 8.0 36 (36) 2ZDK085 fig-1 8.5 38 39 2ZDK088 fig-1 8.8 39 40 2ZDK090 fig-1 9.0 0 -0.015 40 41 10 80 2ZDK095 fig-1 9.5 42 43 2 2ZDK100 fig-2 10.0 45 (45) 2ZDK103 fig-1 10.3 46 47 2ZDK105 fig-1 10.5 47 48 2ZDK110 fig-1 11.0 0 -0.018 51 52 12 100 2ZDK115 fig-1 11.5 53 54 2ZDK120 fig-2 12.0 54 (54) This tool is specially designed for plunge milling and NOT recommended for slotting. The drilling depth should be less than 2D(2xDc). Plunge milling End mill L102 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L107 9 : Std. Item
